Specifications
Brand Name :
RAYTECH
Model Number :
RFD620
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
500units per month
Delivery Time :
about 3~5days
Packaging Details :
standard export package
Product Name :
ndt ultrasonic equipment, Digital Portable Ultrasonic Flaw Detector, Metal Welding Test Machine
Measuring Range(mm) :
0 ～ 10000
Material Velocity(m/s) :
1000~15000
Port Type :
BNC
Gain(dB) :
0~120
Frequency Range(MHz) :
0.5~20
Description

ndt ultrasonic equipment, Digital Portable Ultrasonic Flaw Detector, Metal Welding Test Machine

ndt ultrasonic equipment, Digital Portable Ultrasonic Flaw Detector, Metal Welding Test Machine

Automated calibration,Automated gain

★ DAC,AVG,TCG,B scan,AWS

★ High-speed capture and very low noise

★ Solid metal housing

★ high contrast viewing of the waveform from bright

★ Powerful pc software and reports can be export to excel

Features:

1.Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB);

2.Automated switch three staff gauge ((Depth d,level p,distance s)；

3.Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity；

4.Convenient to make and use DACTCG and AVG to evaluate the echo, the curve can be modified and compensated

5. 6dB DAC functions;

6.Standards of test for DAC is saved.

7. 500 independence setup, any criterion can be input freely, we can work in the scene without test block；

8.Big memory of 1000 A graph

9.Automated gain and gain scan;

10.Peak Hold and Peak Memory；

11.B scan;

12.AWS D1.1

13.Automated make video of test process and play; use upan,the length of video is unlimited.

14.Powerful pc software and reports can be export to excel;

15.Li battery, continue working time up to 10 hours;

16.The embeded software can be online updated；

Other assistant function

Display freeze;

Automated echo degree;

Angles and K-value;

Lock and unlock function of system parameters;

Electronic clock calendar ;

Two gates setting and alarm indication;

Gate and DAC alarm;

Specifications

Title

Parameter

Title

Parameter

Measuring Range(mm)

0 ～ 10000

Measurement Mode

Single,Dual,Thru

Vertical Linearity Error

≤3%

Reject

0~80%

Horizontal Linearity Error

≤0.1%

Pulse Displacement(μs)

-20 ～ +3400

Sensitivity Leavings

≥62dB

Zero(μs)

0.0 ～ 99.99

Dynamic range

≥34dB

Port Type

BNC(Q9)

Resolving Power

≥36dB

Operating Temperature (℃)

-20～50

Frequency Range(MHz)

0.5 ～ 20

H×W×D(mm)

240×156×50

Gain(dB)

0 ～ 120

Weight(kg)

1.0(with battery)

Material Velocity(m/s)

1000 ～ 15000

Standard Configuration

Name

QTY

1

Main unit

1

2

power adaptor

1

3

probe connecting cable

2

4

Instrument case

1

5

Instruction manual

1

6

Straight probe 10mm 4MHz

1

7

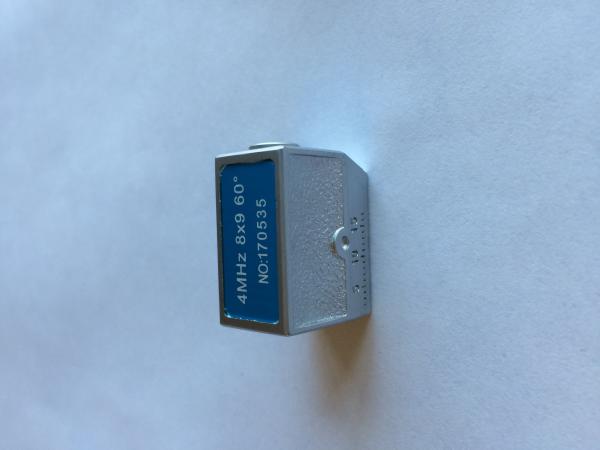

Angle probe 8x9 60°4MHz

1

8

Certificate of approval

1

9

Warranty card

1

10

Software and cable

1
