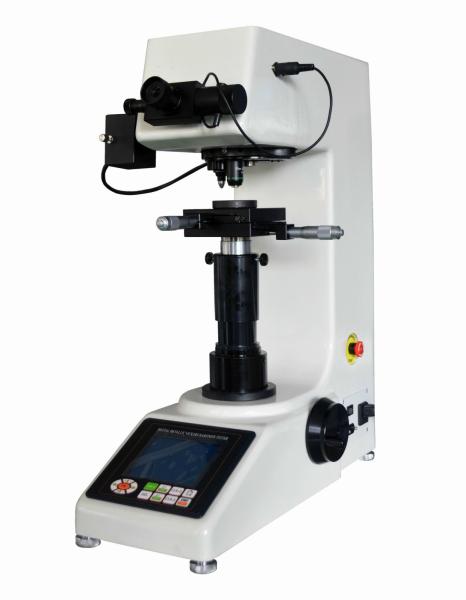

Digital Large Screen Vickers Hardness Tester, Vickers Hardness Meter MHV-5 / MHV-5Z
Digital Large Screen Vickers Hardness Tester, Vickers Hardness Meter MHV-5 / MHV-5Z
Digital Large Screen Vickers Hardness Tester, Vickers Hardness Meter MHV-5 / MHV-5Z
Digital Large Screen Vickers Hardness Tester, Vickers Hardness Meter MHV-5 / MHV-5Z
Specifications
Brand Name :
RAYTECH
Model Number :
MHV-5 / MHV-5Z
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500units per month
Delivery Time :
5~8 working days
Packaging Details :
Standard Export Carton
Product Name :
Digital Large Screen Vickers Hardness Tester, Vickers Hardness Meter MHV-5 / MHV-5Z
Test Force :
0.3kgf, 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf
Test Range :
1HV~2967HV
Loading Method :
Automatic (Loading/Dwell/Unloading)
Eyepiece :
10×
Resolution :
0.125μm ，0.0625μm
Description

Digital Large Screen Vickers Hardness Tester, Vickers

Hardness Meter MHV-5 / MHV-5Z

Digital Large Screen Vickers Hardness Tester, Vickers Hardness Meter MHV-5 / MHV-5Z

Main Function:

MHV-5 / MHV-5Z Digital Vickers hardness tester is a high-tech and new product combining the optics, mechanic and electrics features. It adopts load cell control system, improves the precision of the test force and the repeatability and stability of the indicating value. With digital measuring eyepiece, no need for checking the table or inputting the diagonal of the indentation, it can directly show the test force, indentation length, dwell time, test numbers, conversion scale, date and time. As long as press the eyepiece button after measuring the indentation length, it can automatically get the hardness value and shows on the screen. Test results can be saved for checking or be printed out by the built-in printer, and with RS232 interface for connecting to the computer. It can be equipped with LCD video measuring device and CCD image automatic measuring system.

Application range:

Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.

Technical Specification:

Model MHV-5 MHV-5Z
Test Force kgf 0.3kgf, 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf
N 2.94N, 4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N
Test Range 1HV~2967HV
Loading Method Automatic (Loading/Dwell/Unloading)
Shifting between Objective and Indenter Manual Shifting Automatic Shifting
Data Output Built-in Printer,RS232 Interface
Conversion Scale HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HB
Objective 20× ,40×
Eyepiece 10×
Total Magnification 200× ,400×
Resolution 0.125μm ,0.0625μm
Dwell Time 0~60s
Light Source Halogen Lamp
X-Y Test Table Size: 100×100mm; Travel: 25×25mm; Resolution: 0.01mm
Max. Height of Specimen 170mm
Throat 130mm
Power Supply AC220V,50Hz
Execute Standard ISO 6507,ASTM E92,JIS Z2244,GB/T 4340.2
Dimension 530×280×630mm,Packing Dimension: 620×450×740mm
Weight Net Weight: 35kg,Gross Weight: 47kg

Packing List:

Name Qty Name Qty
Instrument Main Body 1 set 10×Digital Measuring Eyepiece 1 pc
Diamond Vickers Indenter 1 pc 20×,40× Objective each 1 pc
Cross Test Table 1 pc Power Cable 1 pc
Horizontal Regulating Screw 4 pcs Level 1 pc
Fuse 1A 2 pcs Halogen Lamp 12V,15~20W 1 pc
Inner Hexagon Spanner 2.5mm 1 pc Screw Driver 1 pc
Hardness Block 700~800 HV1 1 pc Hardness Block 400~500 HV5 1 pc
Anti-dust Cover 1 pc Usage Instruction Manual 1 copy
