Digital paint coating thickness gauge paint thickness gage with range 0~1500um
Digital paint coating thickness gauge paint thickness gage with range 0~1500um
Digital paint coating thickness gauge paint thickness gage with range 0~1500um
Digital paint coating thickness gauge paint thickness gage with range 0~1500um
Digital paint coating thickness gauge paint thickness gage with range 0~1500um
Digital paint coating thickness gauge paint thickness gage with range 0~1500um
Digital paint coating thickness gauge paint thickness gage with range 0~1500um
Digital paint coating thickness gauge paint thickness gage with range 0~1500um
Digital paint coating thickness gauge paint thickness gage with range 0~1500um
Digital paint coating thickness gauge paint thickness gage with range 0~1500um
Specifications
Brand Name :
RAYTECH
Model Number :
RTG-8102
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Price :
contact us
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
500units per month
Delivery Time :
about 3~5days
Packaging Details :
standard export package
Product Name :
Digital paint coating thickness gauge paint thickness gage with range 0~1500um
Probe Type :
Build-in probe
Measure Range :
0~1500um
Power supply :
4 * AA batteries
Minimum Measurement Area :
5mm
Size :
126 x 69 x 35mm
Resolution :
0.1µm (0-99.9 µm) and 1µm (over 100 µm)
Application :
measuring coating thickness
Description

Specification of Digital paint coating thickness gauge paint thickness gage with range 0~1500um

Measuring Range 0-1500µm (0-1.5mm) or 0-60mil Resolution 0.1µm (0-99.9 µm) and 1µm (over 100 µm)
Color Blue ,Black ,Red ,Yellow Application measuring coating thickness
Accuracy ±1-2% H
H: coating thickness		 Certification CE, RoHS
Power supply 2 x 1.5V AA Batteries or USB Warranty 1 years
Item Name coating thickness gauge Minimum Measurement Area 5mm
Minimum Sample Thickness 0.3mm MOQ 1 Piece
Model Number RTG-8102 Operating Conditions Temp: -10 - 50ºC and Humidity: < 85%
Weight 97g ( including batteries) Dimensions 126 x 69 x 35mm

Application of Digital paint coating thickness gauge paint thickness gage with range 0~1500um:

This model includes two functions, F and N.

1. F function can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)

2. N function can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)

Features of Digital paint coating thickness gauge paint thickness gage with range 0~1500um

  • Single-point or two-point method could be used to correct probe system deviation, in order to ensure the accuracy of the device in the process of measuring.
  • Power voltage indicator. supply by USB 5V or 2 AA batteries (AA)
  • Speaker beeps while operating.
  • Power-off automatically when idle; manually power-off available.
  • Negative display function to ensure the accuracy of zero point calibration.
  • Ultra-low power consumption, less than 10 μA in standby mode.
  • Operation method: Graphic menu button operation
  • Human-computer interaction: buttons, backlight dot matrix screen, light, buzzer
  • Data transfer: USB, Bluetooth
  • PC software: Windows PC, Android App , iOS App
  • Accessories of Digital paint coating thickness gauge paint thickness gage with range 0~1500um :

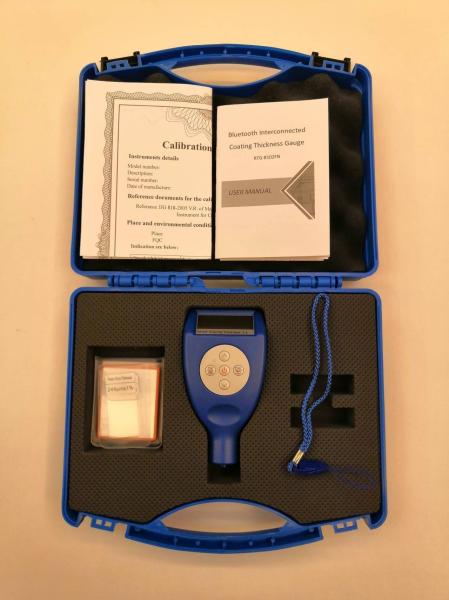

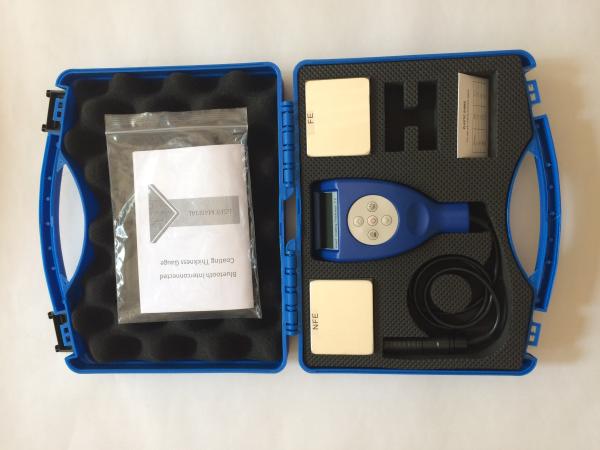

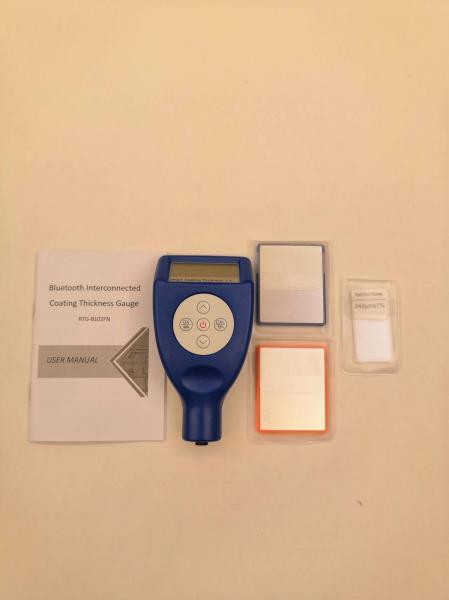

Standard Accessories

 Main Unit
Calibration Foils
Substrate ( Iron )
Substrate ( Aluminum )
Carrying Case
Operation Manual
Optional Accessories USB data output
Bluetooth data output

Digital paint coating thickness gauge paint thickness gage with range 0~1500um
