VIS100 Main Switch Isolator

Product Description

• Protect Electrical: The installation is simple and convenient to use, which effectively protects electrical appliances.
• The shell is made of PC flame-retardant ; can be used with the circuit breaker of the distribution box.
• Thunder Protection Effect: Prevent the danger of thunder, protect safety, quick response, good thunder protection effect.
• Quality Materials: Using quality materials, strong and durable, has a long service life.
• Widely Used: Widely used in workshops, outdoor monitoring boxes, companies, households, It is suitable for the new energy solar power generation system, and protects the lightning current connected to the tube, the direct lightning current or other instantaneous overvoltage.

VIS100 is applicable to circuit with rated voltage 240/415 AC, 50/60Hz for power distribution and motor operation as switching disconnector in both household & commercial electric equipment installations. It is free of maintenance and suitable for use by non-professionals.

In the open position, It complies with the requirements of

1.2 the isolating function.

1.2 It is designed to match HAROK MCBs/RCCBs/RCBOs.

1.3 Approvals and certificates

Technical parameters

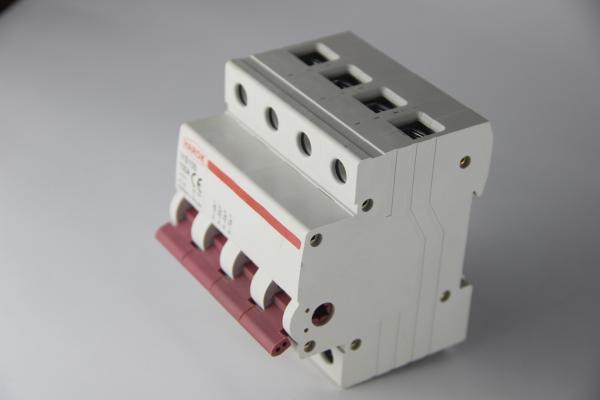

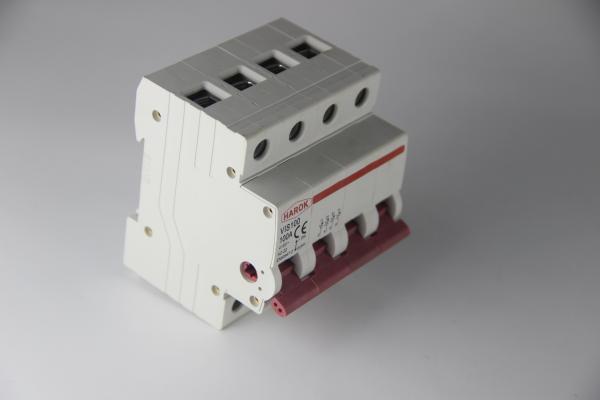

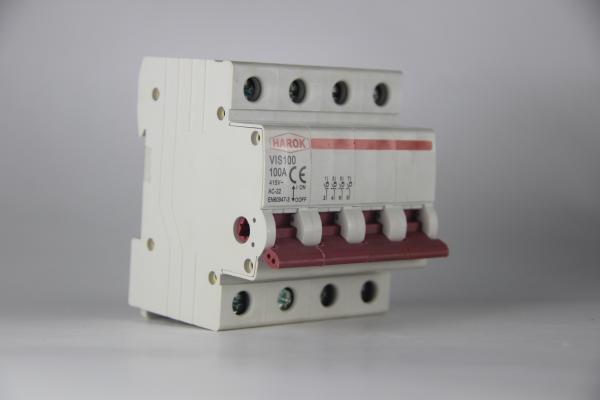

Note:The product shell is pure white, due to the light of the photo, the color of the picture is not pure white!
VIS100 series isolating switch is applicable to the power distribution and control circuit with an alternating current of 50HZ/60HZ, rated voltage of 230/400V, and rated current up to 125A as master switch of terminal electrical equipment. It can be used to control various motors, small power electric appliance and illumination etc, It is widely used for industrial and mining enterprises, buildings, commercial places, home and so on,
The produce meets the standards of IEC60947.3

Outline and installation dimensions(mm)

Product Description:

Features:

• Product Name: Main Switch Isolator
• Certification: CE/RoHS
• Protection Degree: IP20
• Terminal connection type: Cable/U-type Busbar/Pin-type Busbar
• Electrical life: 1,500
• Features: circuit isolation, Main Switch Isolator

Applications:

The HAROK VIS100 Main Switch Isolator provides reliable circuit isolation for electrical safety. It's white body with red knob, mechanical life reach 8,500, and certified by CE/RoHS. It's widely used in circuit isolation, power switching and electrical safety applications. The VIS100 is designed to perform reliably and safely in any environment, meeting the highest safety standards.

The high-quality isolator switch from HAROK is suitable for a wide range of applications, from residential homes to industrial facilities. It offers reliable, secure switching and circuit isolation and is designed to handle high-voltage applications. With a simple, intuitive design and easy-to-read labeling, the VIS100 is the perfect choice for any safety switch application.

The HAROK VIS100 Main Switch Isolator is an ideal choice for any application requiring reliable circuit isolation and electrical safety. It features a rugged construction, high-quality components and advanced safety features to ensure maximum protection. The VIS100 is built to last, with a mechanical life of 8,500, making it the perfect choice for any safety switch application.

Technical Parameters:

Customization:

Packing and Shipping:

Packaging and Shipping of Rotary Isolator

Rotary Isolator is shipped in a sturdy cardboard box with the following items included:

• Rotary Isolator
• Installation Manual
• Mounting Hardware
• Screws and Nuts
• Gasket

The box is labeled with the product name, part number, and other relevant information. It is then placed inside a heavy-duty plastic outer container with foam inserts for extra protection.
