Vis100 2p 80a Main Switch Isolating Circuit Breaker Household Function Disconnector Isolator 32a 63a 100a
Vis100 2p 80a Main Switch Isolating Circuit Breaker Household Function Disconnector Isolator 32a 63a 100a
Vis100 2p 80a Main Switch Isolating Circuit Breaker Household Function Disconnector Isolator 32a 63a 100a
Vis100 2p 80a Main Switch Isolating Circuit Breaker Household Function Disconnector Isolator 32a 63a 100a
Vis100 2p 80a Main Switch Isolating Circuit Breaker Household Function Disconnector Isolator 32a 63a 100a
Vis100 2p 80a Main Switch Isolating Circuit Breaker Household Function Disconnector Isolator 32a 63a 100a
Vis100 2p 80a Main Switch Isolating Circuit Breaker Household Function Disconnector Isolator 32a 63a 100a
Vis100 2p 80a Main Switch Isolating Circuit Breaker Household Function Disconnector Isolator 32a 63a 100a
Specifications
Brand Name :
HAROK
Model Number :
VIS100
Certification :
CE
Place of Origin :
CHINA
MOQ :
3000
MODEL :
VIS100
POLES :
2 POLE
Rated voltage Ue :
240V
Rated current Ie :
80A
Rated frequency :
50/60 Hz
Protection degree :
IP20
Description

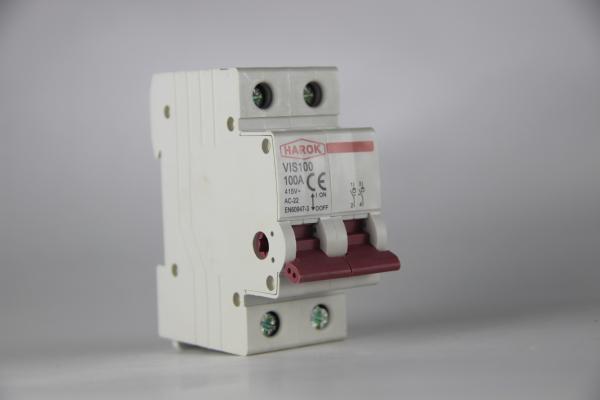

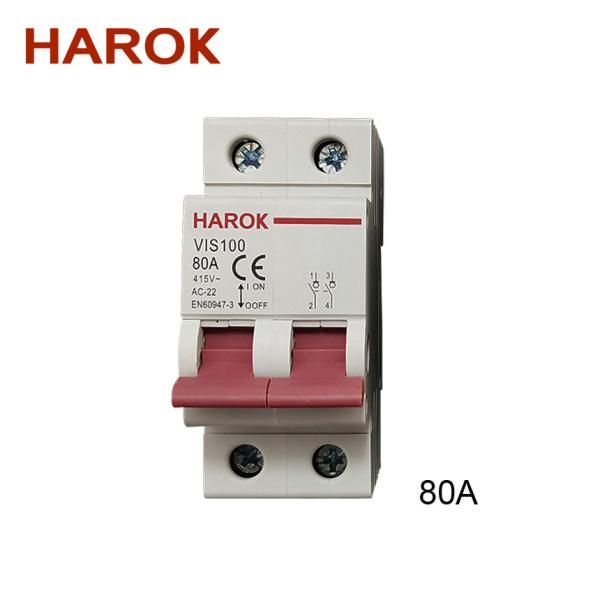

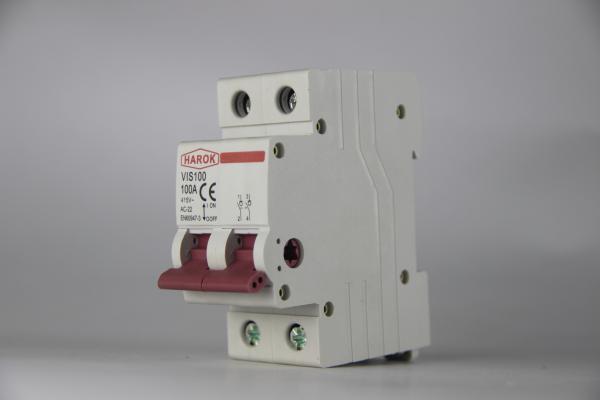

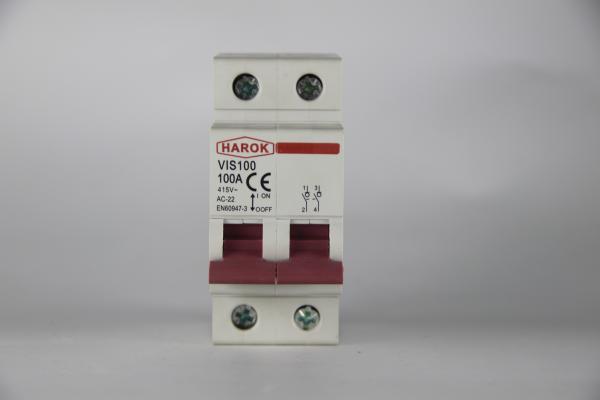

VIS100 Main Switch Isolator

Product Description

  • Protect Electrical: The installation is simple and convenient to use, which effectively protects electrical appliances.
  • The shell is made of PC flame-retardant ; can be used with the circuit breaker of the distribution box.
  • Thunder Protection Effect: Prevent the danger of thunder, protect safety, quick response, good thunder protection effect.
  • Quality Materials: Using quality materials, strong and durable, has a long service life.
  • Widely Used: Widely used in workshops, outdoor monitoring boxes, companies, households, It is suitable for the new energy solar power generation system, and protects the lightning current connected to the tube, the direct lightning current or other instantaneous overvoltage.

VIS100 is applicable to circuit with rated voltage 240/415 AC, 50/60Hz for power distribution and motor operation as switching disconnector in both household & commercial electric equipment installations. It is free of maintenance and suitable for use by non-professionals.

In the open position, It complies with the requirements of

1.2 the isolating function.

1.2 It is designed to match HAROK MCBs/RCCBs/RCBOs.

1.3 Approvals and certificates

Technical parameters

Standard IEC/EN 60947-3
Electrical features Model No. VIS100
Poles 2P
Rated voltage Ue 240V
Rated current Ie 80A
Rated frequency 50/60 Hz
Rated impulse withstand voltage(1.2/50) Uimp 4000V
Rated short-time withstand current Icw 12Ie, 1s
Rated making and breaking capacity 3Ie, 1.05Ue, cosΦ=0.65
Rated short circuit making capacity Icm 20Ie, t=0.1s
Dielectric test voltage at ind. Freq. For 5s 1.89kV
Insulation voltage Ui 500V
Pollution degree 2
Utilization category AC-22A
Mechanical features Electrical life 1,500
Mechanical life 8,500
Protection degree IP20
Reference temperature for setting of thermal element 30℃
Ambient temperature (with daily average≤35℃) -5℃ to 40℃
Storage temperature -25℃ to 70℃
Installation Terminal connection type Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable 25 mm²
18-4 AWG
Terminal size top/bottom for busbar 10 mm²
18-8 AWG
Tightening torque 2.5 N·m
22 In-Ibs.
Mounting On DIN rail EN 60715 (35mm) by means of fast clip device
Connection From top and bottom

Note:The product shell is pure white, due to the light of the photo, the color of the picture is not pure white!
VIS100 series isolating switch is applicable to the power distribution and control circuit with an alternating current of 50HZ/60HZ, rated voltage of 230/400V, and rated current up to 125A as master switch of terminal electrical equipment. It can be used to control various motors, small power electric appliance and illumination etc, It is widely used for industrial and mining enterprises, buildings, commercial places, home and so on,
The produce meets the standards of IEC60947.3

Outline and installation dimensions(mm)

Vis100 2p 80a Main Switch Isolating Circuit Breaker Household Function Disconnector Isolator 32a 63a 100a Vis100 2p 80a Main Switch Isolating Circuit Breaker Household Function Disconnector Isolator 32a 63a 100aVis100 2p 80a Main Switch Isolating Circuit Breaker Household Function Disconnector Isolator 32a 63a 100aVis100 2p 80a Main Switch Isolating Circuit Breaker Household Function Disconnector Isolator 32a 63a 100aVis100 2p 80a Main Switch Isolating Circuit Breaker Household Function Disconnector Isolator 32a 63a 100a

Product Description:

Rotary Isolator is a main switch isolator that is designed to be mounted on a DIN Rail EN 60715 (35mm) by means of fast clip device. With its rated frequency of 50/60 Hz, rated voltage of 240/415V, and rated current of 32A, 40A, 63A, 80A, 100A, 125A, this product is suitable for various applications. It is also available in white body with red knob, making it both aesthetically pleasing and functional.

This din rail product is easy to install and has a reliable performance. It helps to reduce installation and maintenance costs, and is suitable for a variety of electrical systems. It is an ideal choice for both residential and commercial applications. With its high-quality construction and reliable performance, Rotary Isolator ensures a safe and efficient operation.

Rotary Isolator has been designed to meet the highest standards of safety and performance. It features a fast clip device for easy installation and a rated frequency of 50/60 Hz, rated voltage of 240/415V, and rated current of 32A, 40A, 63A, 80A, 100A, 125A. It is also available in white body with red knob for a more aesthetic look. It is the perfect product for any application that requires a reliable and safe main switch isolator.

Features:

  • Product Name: Rotary Isolator
  • Terminal connection type: Cable/U-type Busbar/Pin-type Busbar
  • Electrical life: 1,500
  • Model No.: VIS100
  • Protection Degree: IP20
  • Poles: 1P, 2P, 3P, 4P
  • DIN rail products
  • Circuit isolation
  • Main Switch Isolator

Applications:

The Versatile Applications of HAROK VIS100 Main Switch Isolator

The HAROK VIS100 Main Switch Isolator is a circuit isolator designed to provide a quick and secure means of wiring and safety. This din rail product has a mounting size of EN 60715 (35mm) and is equipped with a fast clip device for easy installation. With a rated voltage of 240/415V, this main switch isolator is suitable for a variety of applications in different scenarios.

The HAROK VIS100 Main Switch Isolator provides reliable circuit isolation and offers a mechanical life of 8,500. It can be connected via a variety of terminal types, including cable, U-type busbar and pin-type busbar. This main switch isolator is ideal for applications which require quick response and secure safety.

The HAROK VIS100 Main Switch Isolator is suitable for a wide range of applications, from industrial control to home appliances. It provides a reliable and easy-to-install solution and ensures the safety of the circuit. With its versatile applications and secure protection, the HAROK VIS100 Main Switch Isolator is the perfect choice for your wiring needs.

Technical Parameters:

Features Specifications
Mechanical life 8,500
Mounting On DIN Rail EN 60715 (35mm) By Means Of Fast Clip Device
Connection From Top And Bottom
Poles 1P, 2P, 3P, 4P
Rated voltage Ue 240/415V
Rated current Ie 32A, 40A, 63A, 80A, 100A, 125A
Electrical life 1,500
Rated frequency 50/60 Hz
Certification CE/RoHS
Model No. VIS100
Main Switch Isolator Yes
Circuit isolation Yes
Circuit isolation switch Yes

Customization:

Customized Rotary Isolator Service

We offer custom-made rotary isolators with the following specifications:

  • Brand Name: HAROK
  • Model Number: VIS100
  • Place of Origin: CHINA
  • Poles: 1P, 2P, 3P, 4P
  • Certification: CE/RoHS
  • Rated voltage Ue: 240/415V
  • Rated current Ie: 32A, 40A, 63A, 80A, 100A, 125A
  • Ambient Temperature: -25℃~+55℃

Our rotary isolators are designed to provide reliable circuit isolation, ensuring maximum safety. Our products are certified to CE/RoHS standards, guaranteeing your satisfaction.

Packing and Shipping:

Packaging and Shipping for Rotary Isolator:

  • The product will be packaged in a secure, waterproof cardboard box.
  • The product will be shipped with a tracking number to ensure delivery.
  • Shipping will be via airmail or other express services depending on customer requirements.
