500 Mechanical Life Main Switch Isolator With 50/60 Hz Rated Frequency
500 Mechanical Life Main Switch Isolator With 50/60 Hz Rated Frequency
500 Mechanical Life Main Switch Isolator With 50/60 Hz Rated Frequency
500 Mechanical Life Main Switch Isolator With 50/60 Hz Rated Frequency
500 Mechanical Life Main Switch Isolator With 50/60 Hz Rated Frequency
500 Mechanical Life Main Switch Isolator With 50/60 Hz Rated Frequency
Specifications
Brand Name :
HAROK
Model Number :
VIS100
Certification :
CE
Place of Origin :
CHINA
MOQ :
3000
MODEL :
VIS100
POLES :
2 POLE
Rated voltage Ue :
240V
Rated current Ie :
40A
Rated frequency :
50/60 Hz
Protection degree :
IP20
Description

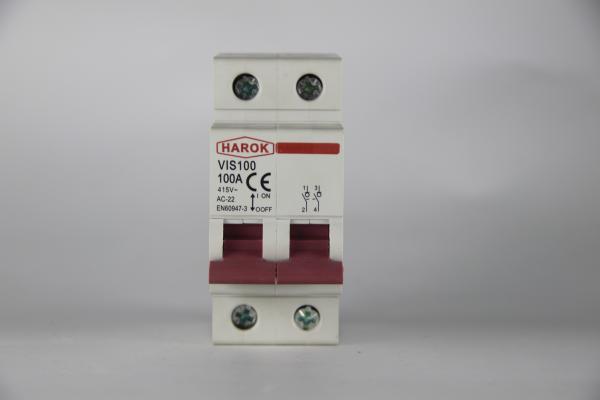

VIS100 Main Switch Isolator

Product Description

  • Protect Electrical: The installation is simple and convenient to use, which effectively protects electrical appliances.
  • The shell is made of PC flame-retardant ; can be used with the circuit breaker of the distribution box.
  • Thunder Protection Effect: Prevent the danger of thunder, protect safety, quick response, good thunder protection effect.
  • Quality Materials: Using quality materials, strong and durable, has a long service life.
  • Widely Used: Widely used in workshops, outdoor monitoring boxes, companies, households, It is suitable for the new energy solar power generation system, and protects the lightning current connected to the tube, the direct lightning current or other instantaneous overvoltage.

VIS100 is applicable to circuit with rated voltage 240/415 AC, 50/60Hz for power distribution and motor operation as switching disconnector in both household & commercial electric equipment installations. It is free of maintenance and suitable for use by non-professionals.

In the open position, It complies with the requirements of

1.2 the isolating function.

1.2 It is designed to match HAROK MCBs/RCCBs/RCBOs.

1.3 Approvals and certificates

Technical parameters

Standard IEC/EN 60947-3
Electrical features Model No. VIS100
Poles 2P
Rated voltage Ue 240V
Rated current Ie 40A
Rated frequency 50/60 Hz
Rated impulse withstand voltage(1.2/50) Uimp 4000V
Rated short-time withstand current Icw 12Ie, 1s
Rated making and breaking capacity 3Ie, 1.05Ue, cosΦ=0.65
Rated short circuit making capacity Icm 20Ie, t=0.1s
Dielectric test voltage at ind. Freq. For 5s 1.89kV
Insulation voltage Ui 500V
Pollution degree 2
Utilization category AC-22A
Mechanical features Electrical life 1,500
Mechanical life 8,500
Protection degree IP20
Reference temperature for setting of thermal element 30℃
Ambient temperature (with daily average≤35℃) -5℃ to 40℃
Storage temperature -25℃ to 70℃
Installation Terminal connection type Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable 25 mm²
18-4 AWG
Terminal size top/bottom for busbar 10 mm²
18-8 AWG
Tightening torque 2.5 N·m
22 In-Ibs.
Mounting On DIN rail EN 60715 (35mm) by means of fast clip device
Connection From top and bottom

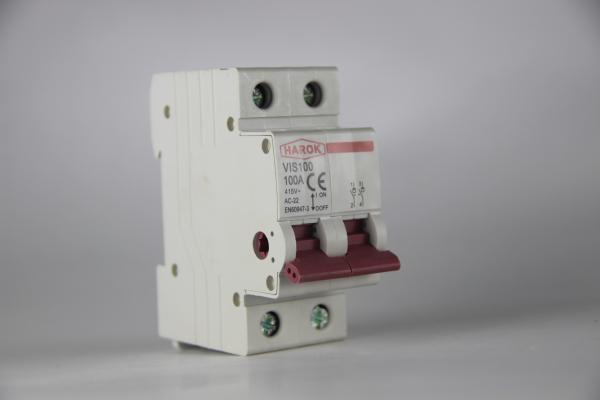

Note:The product shell is pure white, due to the light of the photo, the color of the picture is not pure white!
VIS100 series isolating switch is applicable to the power distribution and control circuit with an alternating current of 50HZ/60HZ, rated voltage of 230/400V, and rated current up to 125A as master switch of terminal electrical equipment. It can be used to control various motors, small power electric appliance and illumination etc, It is widely used for industrial and mining enterprises, buildings, commercial places, home and so on,
The produce meets the standards of IEC60947.3

Outline and installation dimensions(mm)

500 Mechanical Life Main Switch Isolator With 50/60 Hz Rated Frequency 500 Mechanical Life Main Switch Isolator With 50/60 Hz Rated Frequency500 Mechanical Life Main Switch Isolator With 50/60 Hz Rated Frequency500 Mechanical Life Main Switch Isolator With 50/60 Hz Rated Frequency500 Mechanical Life Main Switch Isolator With 50/60 Hz Rated Frequency

Product Description:

Rotary Isolator is a kind of din rail products designed for circuit isolation and safety. It is rated for a voltage of 240/415V and with its current rating of 32A, 40A, 63A, 80A, 100A, 125A, it is suitable for many different applications. It is mounted on a DIN Rail EN 60715 (35mm) by means of a fast clip device, and has an ambient temperature range from -25℃ to +55℃, offering a reliable and safe solution for isolating circuits. This Main Switch Isolator is the ideal choice for any environment that requires a reliable source of circuit isolation and safety.

Features:

  • Product Name: Rotary Isolator
  • Rated current Ie: 32A, 40A, 63A, 80A, 100A, 125A
  • Model No.: VIS100
  • Protection Degree: IP20
  • Mechanical life: 8,500
  • Mounting: On DIN Rail EN 60715 (35mm) By Means Of Fast Clip Device
  • Ideal for circuit isolation
  • Designed to mount on DIN Rail products
  • High quality and reliable din rail products

Applications:

The HAROK VIS100 Main Switch Isolator is a din rail products designed for electrical panel and electrical components to provide reliable electrical protection. It is designed to be mounted on standard DIN rail EN 60715 (35mm) by means of a fast clip device and connecting from top and bottom. This model features an ambient temperature range of -25℃~+55℃, and is available in a variety of rated current options including 32A, 40A, 63A, 80A, 100A, 125A and rated frequency of 50/60 Hz. It offers reliable safety performance and a wide range of applications in a variety of industries including engineering, mining, construction, water treatment, etc.

Technical Parameters:

Parameter Value
Electrical life 1,500
Connection From Top And Bottom
Product Name Main Switch Isolator
Ambient Temperature -25℃~+55℃
Mounting On DIN Rail EN 60715 (35mm) By Means Of Fast Clip Device
Certification CE/RoHS
Terminal connection type Cable/U-type Busbar/Pin-type Busbar
Rated current Ie 32A, 40A, 63A, 80A, 100A, 125A
Rated frequency 50/60 Hz
Poles 1P, 2P, 3P, 4P

Customization:

Rotary Isolator

Brand Name: HAROK

Model Number: VIS100

Place of Origin: CHINA

Electrical life: 1,500 times

Rated current Ie: 32A, 40A, 63A, 80A, 100A, 125A

Rated frequency: 50/60 Hz

Terminal connection type: Cable/U-type Busbar/Pin-type Busbar

Rated voltage Ue: 240/415V

Din Rail Products, Circuit Isolation, Main Switch Isolator

Packing and Shipping:

Packaging and Shipping for Rotary Isolator:

  • The Rotary Isolator is packaged in a robust cardboard box.
  • The box is clearly labeled with the product name, model number, and serial number.
  • The box should be securely sealed with tape.
  • The Rotary Isolator should be shipped via a reliable courier service.
  • The shipping label should include the product name, model number, serial number, and delivery address.
