3440mm Underground Drilling Rig Equipment With Electric Motor Diesel Engine
3440mm Underground Drilling Rig Equipment With Electric Motor Diesel Engine
Specifications
Brand Name :
RanCheng
Model Number :
RCZ-18J
Certification :
CE, ISO 9001:2000
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100sets per Month
Delivery Time :
10-15 working days
Packaging Details :
It can be shipped by one 40" container
Name :
Engineering Drilling Rig
Model :
RCZ-18J
Hole range :
41 - 89mm
Hole depth :
3440mm
Machine weight :
≤ 11,000kg
Dimension ( L xW xH ) :
11,890 x 1,450 x 1,400 / 2,100
Description

3440mm Underground Engineering Drilling Rig Electric Motor and Diesel Engine

Machine Introduction

The RCZ - 18J drilling rig is a fully hydraulic underground drilling giant tailored for complex operating environments. It is especially suitable for narrow and low hole mining and tunnel engineering with limited space. The rig uses an advanced direct - control hydraulic system, coupled with four - wheel drive and articulated steering capabilities, ensuring its excellent maneuverability and adaptability in harsh terrain, and the ability to quickly enter and exit the operating area. The high - efficiency impactor it is equipped with not only significantly reduces operating time, but also significantly reduces energy consumption, making it an efficient choice for narrow vein and tunnel operations. The RCZ - 18J has a maximum working coverage area of ​​30 square meters, which makes it a productivity guarantee in large - scale tunnel projects. The rig ’ s versatility has led to its wide range of applications in a variety of fields including coal mining, tunnel drilling, railway and road construction, etc., proving its superior operating capabilities and reliability.

Technical Parameters

Model Specifications RCZ-18J
Hole range ( mm ) 41 - 89
Hole depth ( mm ) 3,440
Rod Size ( mm ) ( R32, R38, T38 ) 3,700
Drifter Model 104M
Impacting power ( kW ) 20
Max. torque ( N.m ) 752
Impacting frequency ( Hz ) 60
Hydraulic system pressure ( bar ) 200
Rotation speed ( rpm ) 0 - 388
Weight ( Kg ) 170
Air compressor Type Reciprocate piston compressor
Pressure ( bar ) 8
F.A.D ( m3 / min ) 0.36
Diesel engine Model Yuchai YC4DK100-T301 Stage IIIA
Power ( kW ) 73.6
RPM ( r / min ) 2,400 rpm
Electric motor Maker Jiangtian
Power ( kW ) 55
RPM ( r / min ) 1,475
Frequency ( Hz ) 50
Voltage ( V ) 380
Feed Model 3,700
Total length ( mm ) 5,400
Feed travel ( mm ) 3,440
Extension length ( mm ) 1,600
Max. feed force ( KN ) 15
Tramming Type Hydraulic-driven Four-wheel driven
Tramming speed ( km / h ) 11.5 / 5.6
Max. traction force ( KN ) 42
Gradient ( ° ) 20
Chassis floating angle (°) ±15
Tire 8.25R15
Tramming brake Hydro-static brake & dual loops, 4-wheel brake
Emergency stop & parking brake SAHR
Ground clearance ( mm ) 300
Boom Type Multiple coordinates
Nos. of booms 1
Parallel mechanism Complete
Boom extension length ( mm ) 1,200
Boom left / right swing angle ( ° ) ±35
Boom lifting angle ( ° ) + 68 / - 40
Feed tilt angle ( ° ) + 3 / - 90º
Feed turning angle ( ° ) 360 ( screw type )
Chassis Type Articulated
Articulated angel ( ° ) ± 40
Hydraulic support legs 4pcs
Cab Rotating driver seat
Turning system Hydro-static power steering system
leveling meter yes
Horn yes
Start warning yes
Reverse warning yes
Approach / departure angle ( ° ) 17 / 15
Drifter lubrication warning yes
Fuel tank capacity(L) 60
Hydraulic system Form Variable
System pressure( bar ) 240
Hydraulic tank capacity( L ) 180
Pump set unloading start Automatic
Oil temp. indicator Yes
Low oil level alarm display Yes
Functions Directly controlled drilling system, with auto collaring, feed pressure control impacting ( FPCI ), and auto anti-jamming functions
Electric system Start-up mode Star – delta unloading start
Voltage(V) 380 / 660 / 1,000
Control voltage ( V ) 24
Lighting lamp 8 x 70 W, 24 V
Cable reel capacity ( m ) 70
Impacting timer Yes
Digital voltammeter Yes
Phase order indicator warning Yes
Residual current device Yes
Thermal overload protector of electric motor Yes
Water system Booster pump Centrifugal
Power ( kW ) 1.5
F.A.D ( m3 / h ) 2
Pressure ( bar ) 12
Min. water inlet pressure ( bar ) 2
Cooling system type Water-cooled
Machine weight ( kg ) ≤ 11,000
Dimension ( L xW xH ) mm 11,890 x 1,450 x 1,400 / 2,100
Tramming turning radius ( mm ) Inner R 2,800,Outer R 4,900
Working face dimensions W x H ( m ) 6 x 5.7
Max. working area ( m2 ) 31
Optional Short/long feed beam
Exhaust purification device
Electric hydraulic oil filling pump
Cummins engine
RHS

Machine Advantages

The RCZ - 18J drilling rig improves the durability of the drilling tool with its durable 104M impactor and double buffer device, while the double triangular floating support arm design ensures the accuracy of hydraulic control. The feed system uses high - strength heavy - duty aluminum alloy beams and is equipped with stainless steel and wear - resistant gaskets to extend service life. The automatic hydraulic impactor control system realizes intelligent management of the impact process, including automatic casing, lubrication, water loss protection and feed control, effectively preventing blockage. The rig also features two - speed travel, automatic deceleration and enhanced torque output to prevent the engine from overloading when climbing hills. The chassis is designed as a strong, articulated heavy - duty chassis with four - wheel drive, a four - cylinder diesel engine and hydraulic jacks to ensure stable positioning. The dual - circuit pedal brake system provides emergency parking control to ensure operational safety. Other features including a height - adjustable safety canopy, cable drum, electric piston compressor, electric water booster pump and work lights further complete the rig's capabilities.

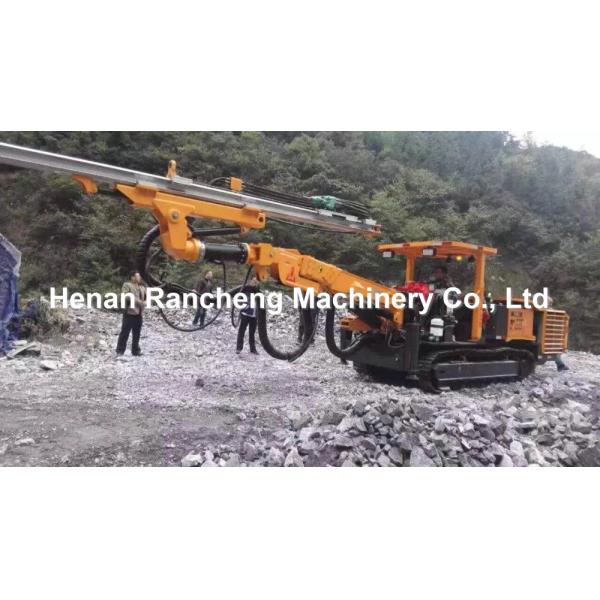

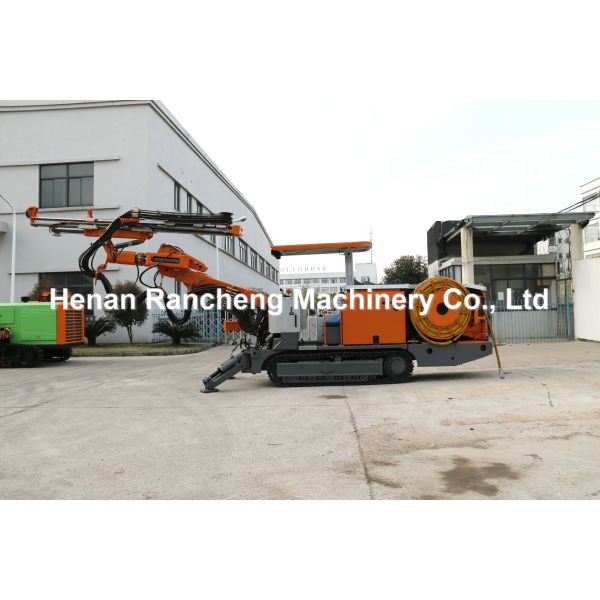

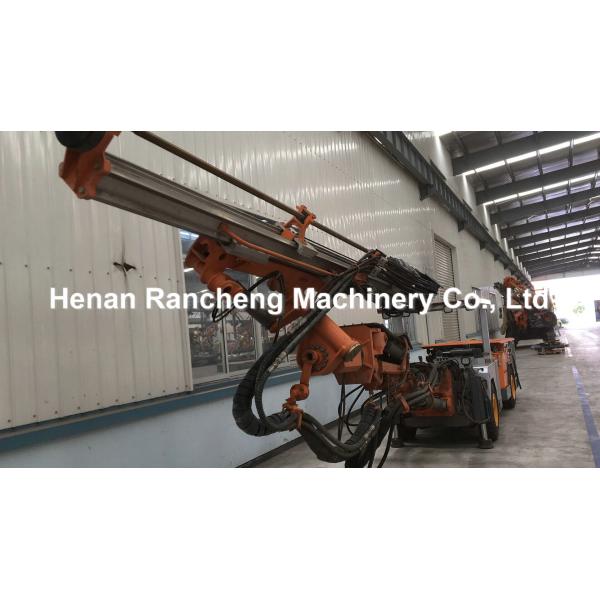

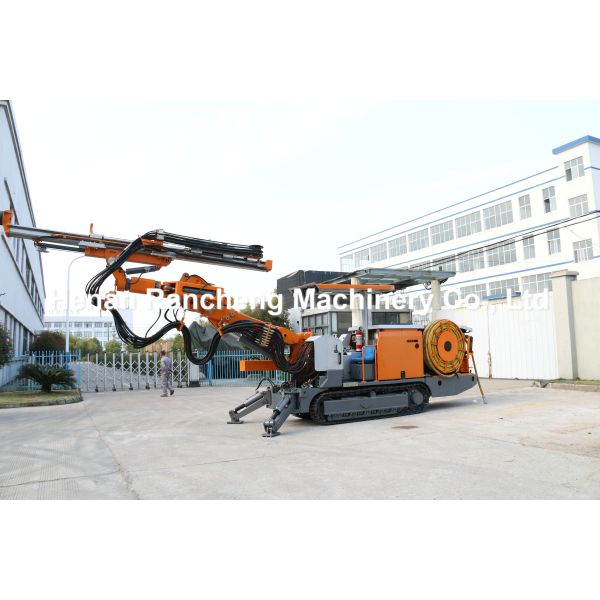

Machine Pictures

3440mm Underground Drilling Rig Equipment With Electric Motor Diesel Engine3440mm Underground Drilling Rig Equipment With Electric Motor Diesel Engine3440mm Underground Drilling Rig Equipment With Electric Motor Diesel Engine

3440mm Underground Drilling Rig Equipment With Electric Motor Diesel Engine
