200m Borehole Drill Rig Tractor Mounted Water Well Drilling Rig
200m Borehole Drill Rig Tractor Mounted Water Well Drilling Rig
200m Borehole Drill Rig Tractor Mounted Water Well Drilling Rig
200m Borehole Drill Rig Tractor Mounted Water Well Drilling Rig
200m Borehole Drill Rig Tractor Mounted Water Well Drilling Rig
200m Borehole Drill Rig Tractor Mounted Water Well Drilling Rig
200m Borehole Drill Rig Tractor Mounted Water Well Drilling Rig
200m Borehole Drill Rig Tractor Mounted Water Well Drilling Rig
200m Borehole Drill Rig Tractor Mounted Water Well Drilling Rig
200m Borehole Drill Rig Tractor Mounted Water Well Drilling Rig
Specifications
Brand Name :
RanCheng
Model Number :
RCF200WT
Certification :
CE, ISO 9001:2000
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100sets per Month
Delivery Time :
10-15 working days
Packaging Details :
It can be shipped by one 20" container
Name :
Borehole Drilling Machine
Model :
RCF200WT
Hole Diameter :
140-254mm
Depth :
200m
Weight :
4T
Dimension :
3400*1500*2200mm
Description

Wholesale Price 200m Borehole Drill Rig Tractor Mounted Water Well Drilling Rig

Machine Introduction

This series of water well drilling rigs has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durability, and low failure rate. Once launched, it has been recognized by the market and has been widely used in mining engineering construction, civil drilling, geothermal drilling, and other fields.


Technical Parameters

Model RCF200WT
Weight (t) 4
Hole Diameter (mm) 140 - 254
Depth (m) 200
Feed Stroke (mm) 2000
Travelling Speed (km/h) 30
Climbing Angle 25 Degree
Tractor Horse Power (hp) 40
Air Pressure (Mpa) 1.7 - 2.5
Air Consumption (m^3/min) 17 - 30
Rod Diameter (mm) 76 & 89
Rod Length (mm) 2000
Lifting Force (t) 12
Rotation Speed (rpm) 45 -65
Output Torque (n.m) 4500 -5000
Dimension (mm) 3400*1500*2200


Our Advantages

1. It is the most popular machine meeting most requirements for a combination drilling machine able to complete rural water supply holes in sediments and hard rock.

2.Weighing about 2200kg that allows it to be pulled by a pick-up it is packed with features.


3.The machine is compact in structure and convenient to carry.


4.The whole machine adopts full hydraulic drive and has low failure rate.


FAQ

Q: What are the advantages of your company?

A: Rancheng Machinery is a professional drilling rig supplier with more than ten years of industry experience. Our product line includes water well drilling rigs, rotary drilling rigs, anchor drilling rigs, DTH drilling rigs, solar pile drivers, mud pumps, air compressors and various drilling tools. All products have passed ISO9001 and CE certification and are exported to more than 200 countries and regions, ensuring that you get high-quality and reliable equipment.

Q: Can I find similar machines. Are they the same?

A: Not the same. There will be some drilling rigs with similar appearance on the market, which may be produced by different factories, so the brand abbreviations are different. The performance and quality will also vary depending on the supplier. We (rancheng machinery) as a professional drilling rig manufacturer, have more than ten years of experience, reliable quality, and are trustworthy.


Q: How long does it take to produce?

A:Normally, our production takes about 15 days.

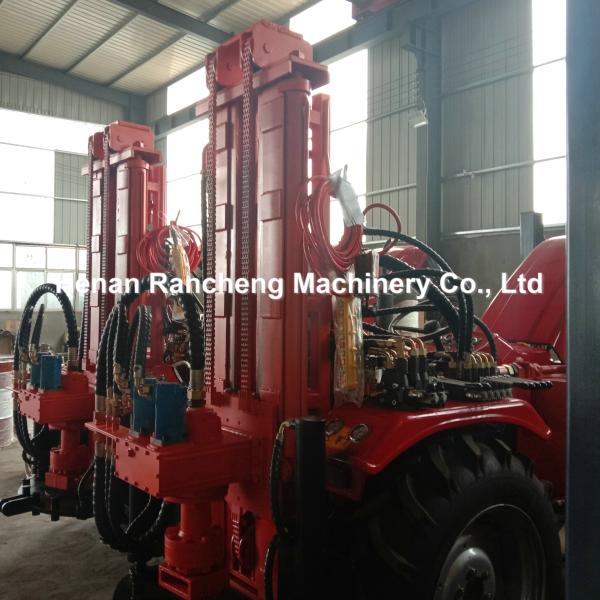

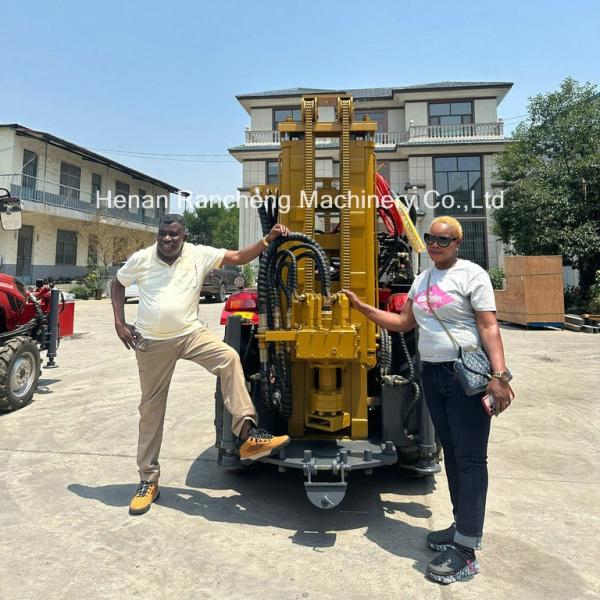

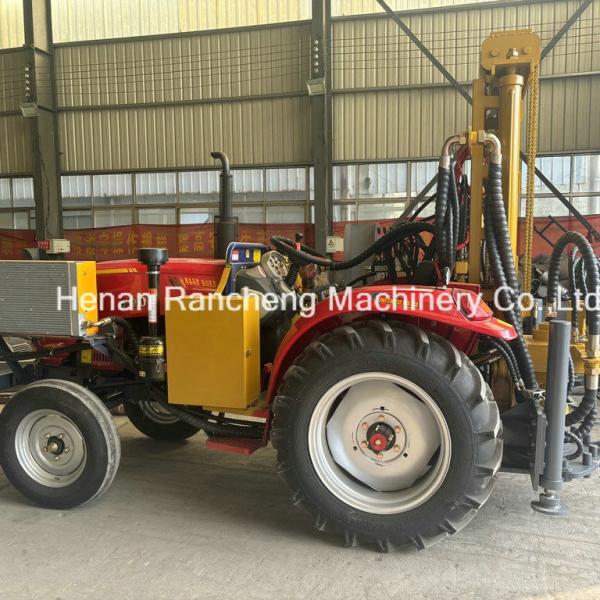

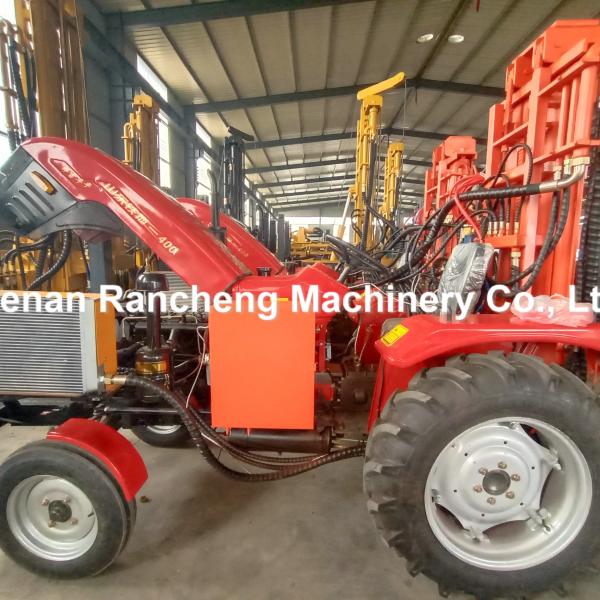

Machine Pictures

200m Borehole Drill Rig Tractor Mounted Water Well Drilling Rig
200m Borehole Drill Rig Tractor Mounted Water Well Drilling Rig200m Borehole Drill Rig Tractor Mounted Water Well Drilling Rig
200m Borehole Drill Rig Tractor Mounted Water Well Drilling Rig
