Drilling RCF220W Rig Capable Of Drilling Between 100 And 220 Meters
Drilling RCF220W Rig Capable Of Drilling Between 100 And 220 Meters
Drilling RCF220W Rig Capable Of Drilling Between 100 And 220 Meters
Drilling RCF220W Rig Capable Of Drilling Between 100 And 220 Meters
Drilling RCF220W Rig Capable Of Drilling Between 100 And 220 Meters
Drilling RCF220W Rig Capable Of Drilling Between 100 And 220 Meters
Drilling RCF220W Rig Capable Of Drilling Between 100 And 220 Meters
Drilling RCF220W Rig Capable Of Drilling Between 100 And 220 Meters
Specifications
Brand Name :
RanCheng
Model Number :
RCF220W
Certification :
CE, ISO 9001:2000
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100sets per Month
Delivery Time :
10-15 working days
Packaging Details :
It can be shipped by one 20" container
Model :
RCF220W deep water well drilling rigs
Engine power :
65KW Quanchai engine
Introducing the RCF220W Water Well Drilling Rig – the ultimate solution for all your drilling needs! :
220m
Drilling way :
both mud pump DTH air drilling
Lifting force :
13T
Bore diameter :
90-300mm
Description

Drilling RCF220W Rig - Capable Of Drilling Between 100 And 220 Meters

Machine Introduction

Introducing the RCF220W Water Well Drill - the perfect solution for all your drilling needs. Designed for efficiency and versatility, this lightweight drill is suitable for both industrial and residential use. Whether you are drilling for water, geothermal energy or another resource, the RCF220W performs well in a range of challenging environments.

A key feature of the RCF220W is its compact design, which makes it easy to transport and install in remote areas. Not only is the platform highly mobile, it is also highly versatile, suitable for a variety of terrains including mountainous and rocky areas. Its pneumatic drilling capabilities guarantee effective water extraction even in difficult geological conditions.

With a maximum drilling depth of 220 meters, the RCF220W can handle a variety of drilling projects, from small residential wells to large industrial tasks. The fast feed mechanism reduces downtime, allowing you to complete your drilling operations more efficiently.

The RCF220W Water Well Drill is designed for users who value reliability and performance. Its durable construction and advanced technology enable you to confidently tackle any drilling challenge. Whether you are a contractor, geologist or professional, this drill is an essential addition to your toolkit.

Experience the power and versatility of the RCF220W water well drill today. With its lightweight construction, efficient performance and wide range of applications, you can be sure it will meet and exceed your expectations. Don't miss the opportunity to improve your drilling skills: invest in the RCF220W and open up new possibilities for your projects!

Technical Parameters

Bore diameter(Hammer) 90-300mm
Bore depth 220m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Pipe diameter 76mm/89mm
Pipe length 1m,2m,3m
Lifting force 13T
Lifting speed 2.5m/min
feeding speed 0.5-5m/min
Fast lifting speed 24m/min
Fast feeding speed 35m/min
Max torque of rotary 3400-4700Nm
Rotary speed 45-70r/min
Hoisting force of winch 1.4T
Mud Pump flow 250L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 4×1.75×2.25M
Weight 5500Kg
Diesel engine 65KW Quanchai engine


Machine Advantages

1. Energy saving. Low tower design, can drill indoor and outdoor.


2. Patented product, unique design and simple drilling structure.


3. Easy to transport and can learn how to handle the machine in short time.

4. Assure easily operation and long life service life

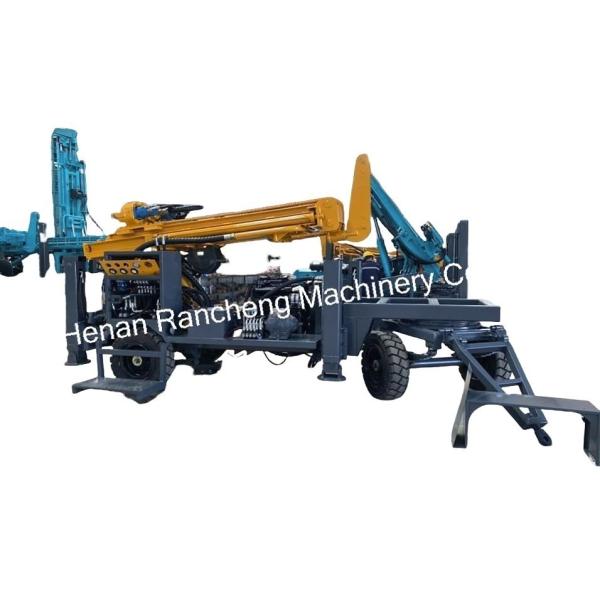

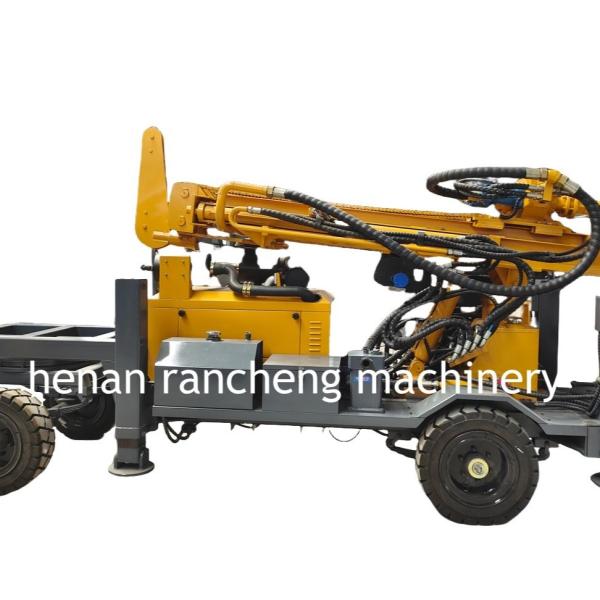

Machine Pictures

Drilling RCF220W Rig Capable Of Drilling Between 100 And 220 MetersDrilling RCF220W Rig Capable Of Drilling Between 100 And 220 MetersDrilling RCF220W Rig Capable Of Drilling Between 100 And 220 Meters
