Wheel Trailer Mounted Trailer Water Well Drilling Rig 180m Well Drilling Machine
Wheel Trailer Mounted Trailer Water Well Drilling Rig 180m Well Drilling Machine
Wheel Trailer Mounted Trailer Water Well Drilling Rig 180m Well Drilling Machine
Wheel Trailer Mounted Trailer Water Well Drilling Rig 180m Well Drilling Machine
Wheel Trailer Mounted Trailer Water Well Drilling Rig 180m Well Drilling Machine
Wheel Trailer Mounted Trailer Water Well Drilling Rig 180m Well Drilling Machine
Wheel Trailer Mounted Trailer Water Well Drilling Rig 180m Well Drilling Machine
Wheel Trailer Mounted Trailer Water Well Drilling Rig 180m Well Drilling Machine
Specifications
Brand Name :
RanCheng
Model Number :
RCF220W
Certification :
CE, ISO 9001:2000
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100sets per Month
Delivery Time :
10-15 working days
Packaging Details :
It can be shipped by one 20" container
Model :
RCF220W deep water well drilling rigs
Engine power :
65KW Quanchai engine
Max Drilling depth :
220m
Drilling way :
both mud pump DTH air drilling
Lifting force :
13T
Bore diameter :
90-300mm
Description

Wheel Trailer Mounted Trailer Water Well Drilling Rig 180m Well Drilling Machine

Machine Introduction

RCF220W is a wheel type drilling rig,it is very easy to move,this rig is widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering.


Technical Parameters

Bore diameter(Hammer) 90-300mm
Bore depth 220m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Pipe diameter 76mm/89mm
Pipe length 1m,2m,3m
Lifting force 13T
Lifting speed 2.5m/min
feeding speed 0.5-5m/min
Fast lifting speed 24m/min
Fast feeding speed 35m/min
Max torque of rotary 3400-4700Nm
Rotary speed 45-70r/min
Hoisting force of winch 1.4T
Mud Pump flow 250L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 4×1.75×2.25M
Weight 5500Kg
Diesel engine 65KW Quanchai engine


Machine Advantages

1. Energy saving. Low tower design, can drill indoor and outdoor.


2. Patented product, unique design and simple drilling structure.


3. Easy to transport and can learn how to handle the machine in short time.


4. Assure easily operation and long life service life

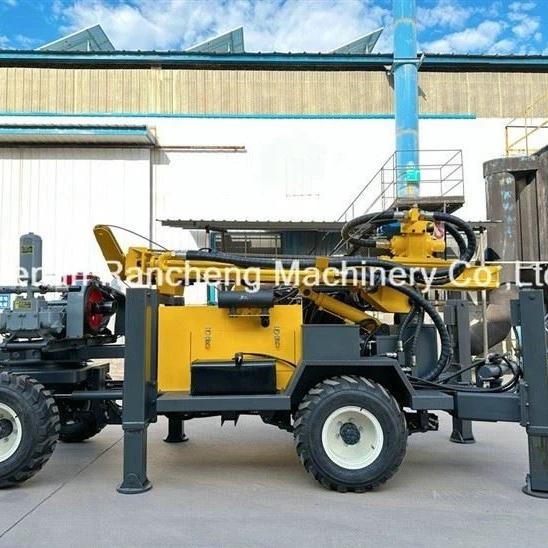

Machine Pictures

Wheel Trailer Mounted Trailer Water Well Drilling Rig 180m Well Drilling MachineWheel Trailer Mounted Trailer Water Well Drilling Rig 180m Well Drilling MachineWheel Trailer Mounted Trailer Water Well Drilling Rig 180m Well Drilling Machine
