150m Deep Mini Portable Crawler Water Well Drilling Machine and Solution for Water Drilling Projects

Products Description

The RCF150S Small Water Boring Machine is a reliable and versatile solution for various drilling needs. With a lightweight design of just 2300 kg, it is highly portable and easy to maneuver.

This machine is ideal for a range of applications, including farm irrigation, yard wells, geothermal wells, and industrial water drilling projects. It can drill holes up to 150 meters deep and 90-300 mm in diameter, making it suitable for diverse water well drilling tasks.

The RCF150S features two rotary motor head drives and can be equipped with mud pumps and air compressors. This ensures smooth and efficient drilling across different soil types.

Machine Specifications

Machine Advantages

The RCF150S Small Rubber Track Walking Water Well Drilling Rig boasts several outstanding features. Its compact size, lightweight design, and flexible operation make it an excellent choice for various drilling needs. Weighing only 2300 kg and measuring 2300 x 1200 x 1900 mm, it is highly portable and easy to deploy.

The rig utilizes a down-the-hole pneumatic design and features a dual-motor rotating head with a top drive, along with a mud pump and air compressor. The dual rotating motors enhance both rotation torque and speed, ensuring efficient drilling.

Powered by a robust 42 kW Yunnei engine, the RCF150S can achieve a maximum drilling depth of 150 meters, accommodating diameters from 90 to 300 mm. Its rubber track-mounted design facilitates smooth movement, while the fully hydraulic legs and operating system provide stability and ease during drilling operations.

Additionally, the rig’s hydraulic system, supporting configuration, and overall design have been optimized to enhance performance and work efficiency. Its compact and versatile nature makes it well-suited for operations in courtyards and narrow spaces.

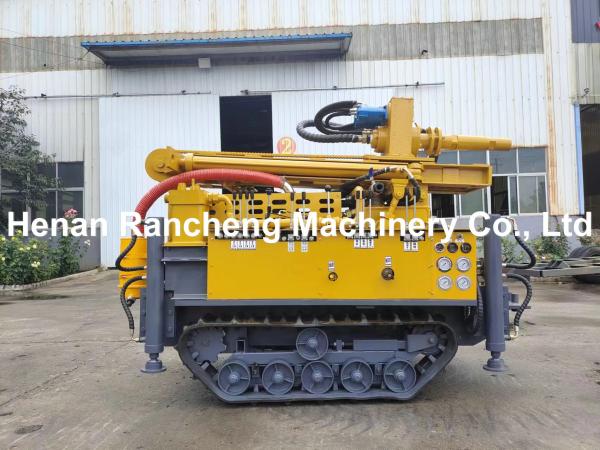

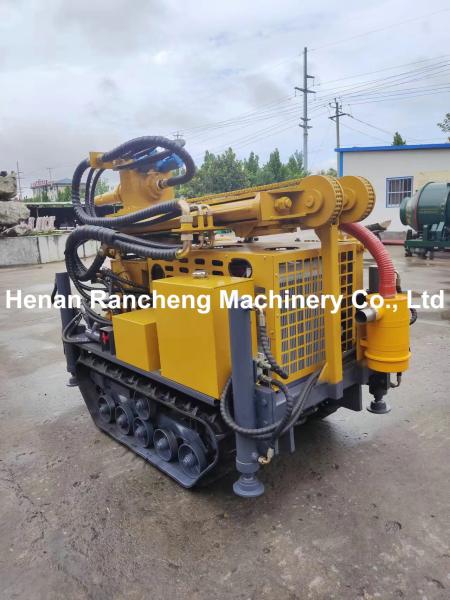

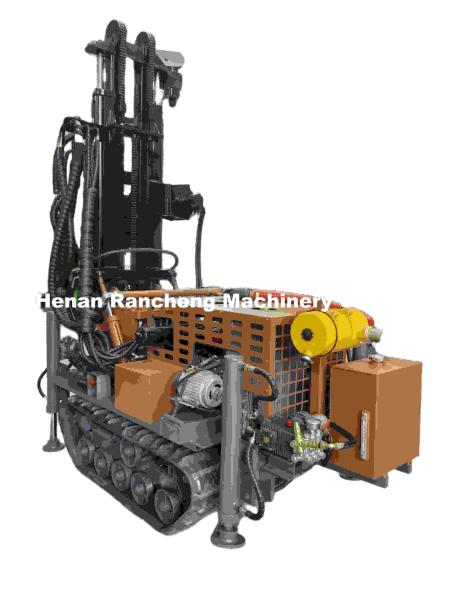

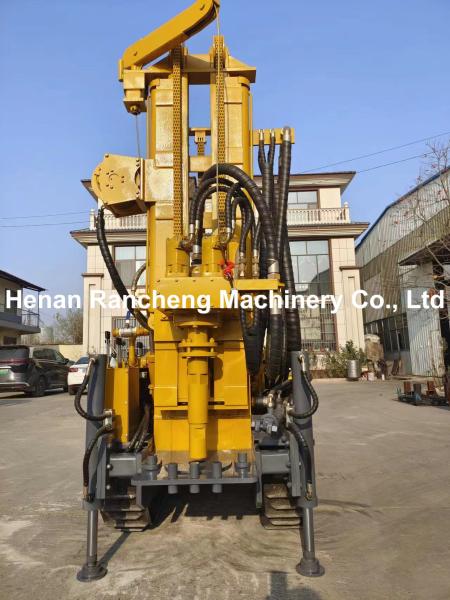

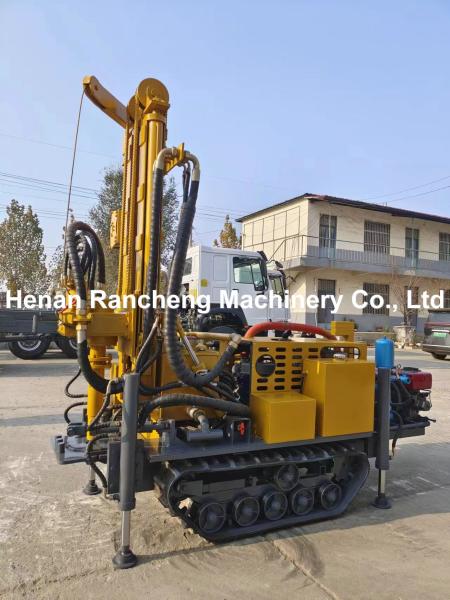

Machine Pictures
