Easy to Move RCF220W Wheel Type Borehole Drilling Machine for Reinforcement
Easy to Move RCF220W Wheel Type Borehole Drilling Machine for Reinforcement
Easy to Move RCF220W Wheel Type Borehole Drilling Machine for Reinforcement
Easy to Move RCF220W Wheel Type Borehole Drilling Machine for Reinforcement
Easy to Move RCF220W Wheel Type Borehole Drilling Machine for Reinforcement
Easy to Move RCF220W Wheel Type Borehole Drilling Machine for Reinforcement
Easy to Move RCF220W Wheel Type Borehole Drilling Machine for Reinforcement
Easy to Move RCF220W Wheel Type Borehole Drilling Machine for Reinforcement
Easy to Move RCF220W Wheel Type Borehole Drilling Machine for Reinforcement
Easy to Move RCF220W Wheel Type Borehole Drilling Machine for Reinforcement
Specifications
Brand Name :
RanCheng
Model Number :
RCF220W
Certification :
CE, ISO 9001:2000
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100sets per Month
Delivery Time :
10-15 working days
Packaging Details :
It can be shipped by one 20" container
Model :
RCF220W deep water well drilling rigs
Engine power :
65KW Quanchai engine
Max Drilling depth :
220m
Drilling way :
both mud pump DTH air drilling
Lifting force :
13T
Bore diameter :
90-300mm
Description

Easy to Move RCF220W Wheel Type Borehole Drilling Machine for Reinforcement

Machine Introduction

The water drilling rig's speed, torque, thrust axial pressure, reverse axial pressure, thrust speed, and lifting speed can be adjusted at any time to meet the requirements of different drilling tool working conditions and different construction processes.

This borehole water drilling machine main components and hydraulic system are all famous brands. In addition, the main frame of the rig is made of high-quality high-strength low-carbon alloy steel, which increases the overall strength and is very resistant to wear.


Technical Parameters

Bore diameter(Hammer) 90-300mm
Bore depth 220m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Pipe diameter 76mm/89mm
Pipe length 1m,2m,3m
Lifting force 13T
Lifting speed 2.5m/min
feeding speed 0.5-5m/min
Fast lifting speed 24m/min
Fast feeding speed 35m/min
Max torque of rotary 3400-4700Nm
Rotary speed 45-70r/min
Hoisting force of winch 1.4T
Mud Pump flow 250L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 4×1.75×2.25M
Weight 5500Kg
Diesel engine 65KW Quanchai engine


Machine Advantages

1. This rig adopts hydraulic system, large torque, high drilling efficiency.


2. The propulsion and lifting use hydraulic cylinders to drive the plate chain transmission, large power, strong torque, powerful drilling in soil, sand, hard rock and other complex geological conditions.


3. the tower assembly has a hydraulic compensation mechanism, the tower supported on the ground when drilling, with greater bearing capacity and higher stability.


4. The front outrigger adopts a telescopic structure, which has a large span during construction and high stability of the drilling rig.


5. this rig is hydraulic drive, mounted on four wheels, very convenient for moving and transportation.

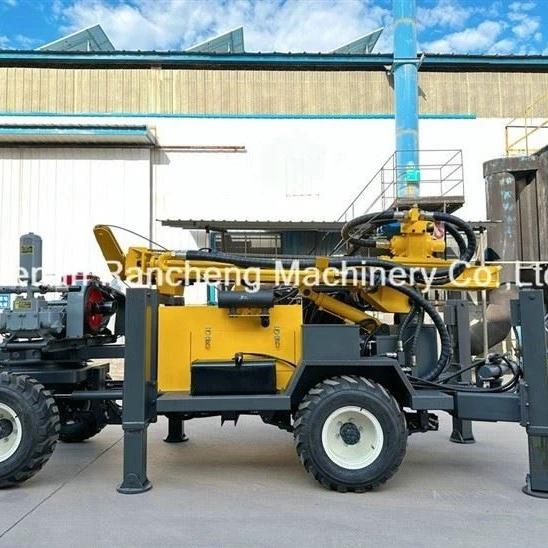

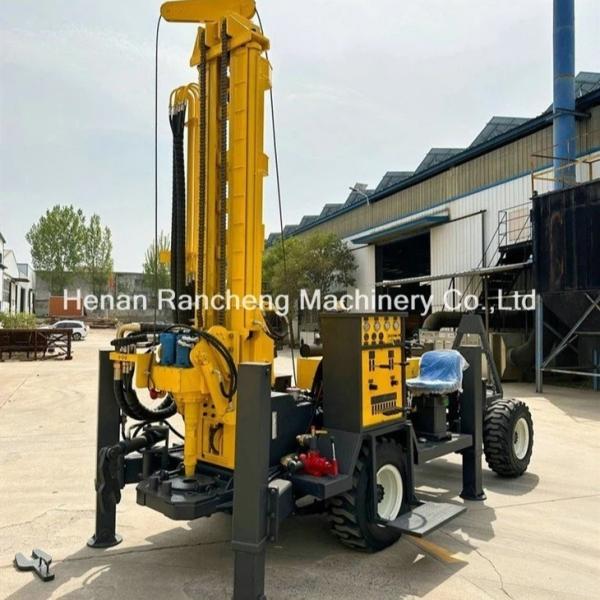

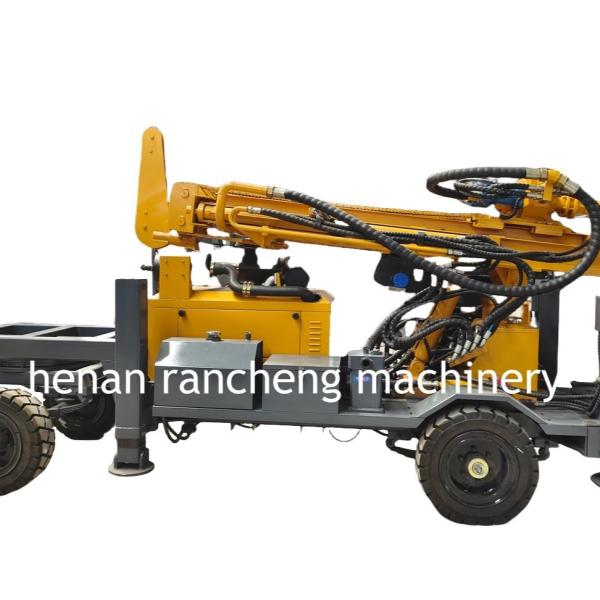

Machine Pictures

Easy to Move RCF220W Wheel Type Borehole Drilling Machine for ReinforcementEasy to Move RCF220W Wheel Type Borehole Drilling Machine for ReinforcementEasy to Move RCF220W Wheel Type Borehole Drilling Machine for Reinforcement
