200m Hydraulic Water Well Drilling Machine With 40HP Tractor Horse Power
200m Hydraulic Water Well Drilling Machine With 40HP Tractor Horse Power
200m Hydraulic Water Well Drilling Machine With 40HP Tractor Horse Power
200m Hydraulic Water Well Drilling Machine With 40HP Tractor Horse Power
200m Hydraulic Water Well Drilling Machine With 40HP Tractor Horse Power
200m Hydraulic Water Well Drilling Machine With 40HP Tractor Horse Power
200m Hydraulic Water Well Drilling Machine With 40HP Tractor Horse Power
200m Hydraulic Water Well Drilling Machine With 40HP Tractor Horse Power
Specifications
Brand Name :
RanCheng
Model Number :
RCF200WT
Certification :
CE, ISO 9001:2000
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100sets per Month
Delivery Time :
10-15 working days
Packaging Details :
It can be shipped by one 20" container
Name :
Borehole Drilling Machine
Model :
RCF200WT
Hole Diameter :
140-254mm
Depth :
200m
Air Consumption (m^3/min) :
17 - 30
Tractor Horse Power (hp) :
40
Description

200m Hydraulic Water Well Drilling Machine With 40HP Tractor Horse Power

Machine Introduction

RCF200WT tractor-mounted deepwater drilling rig is a product independently developed by our company. The new generation of DTH plays an important role in achieving faster drilling speed and higher aerodynamics.

The water well drilling rig produced by our company adopts the latest model and advanced hydropower technology, with the characteristics of low consumption, large rotary torque, good hole inclination, etc. It is mainly used in resource exploration projects and hydrological wells, civil water wells, agricultural irrigation, etc. for drilling.

The drilling rigs produced by our company adopt high-quality materials, modern and compact design, higher efficiency, lower failure rate, economical and durable, and high comprehensive cost performance. Due to the positive feedback from most customers, our water drilling rigs have gained real market recognition.

Technical Parameters

Model RCF200WT
Weight (t) 4
Hole Diameter (mm) 140 - 254
Depth (m) 200
Feed Stroke (mm) 2000
Travelling Speed (km/h) 30
Climbing Angle 25 Degree
Tractor Horse Power (hp) 40
Air Pressure (Mpa) 1.7 - 2.5
Air Consumption (m^3/min) 17 - 30
Rod Diameter (mm) 76 & 89
Rod Length (mm) 2000
Lifting Force (t) 12
Rotation Speed (rpm) 45 -65
Output Torque (n.m) 4500 -5000
Dimension (mm) 3400*1500*2200

Machine Advantages

1,it drill max 200m depth and 90-245mm diameter

2,it is top head driving ,work with both mud pump and air compressor

3,it use 1.5m lenght drill rod ,76 or 89mm

4,full hydraulic system operation ,famous brand hydraulic system and hydraulic motor ,with stable performance and good quality ,easy to operate and maintainance

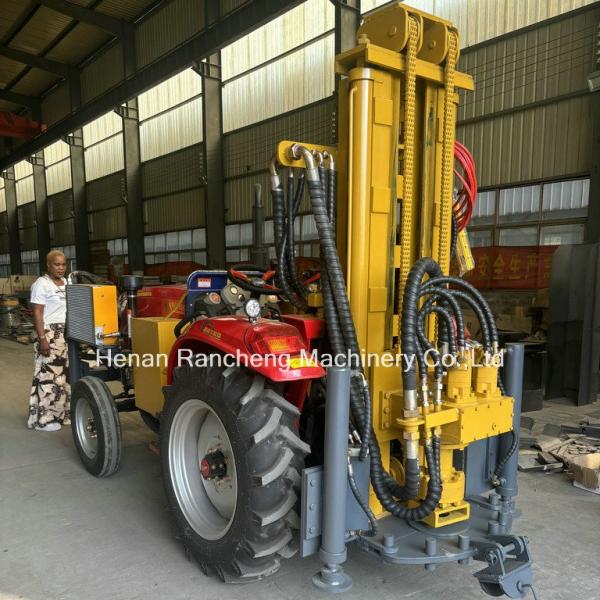

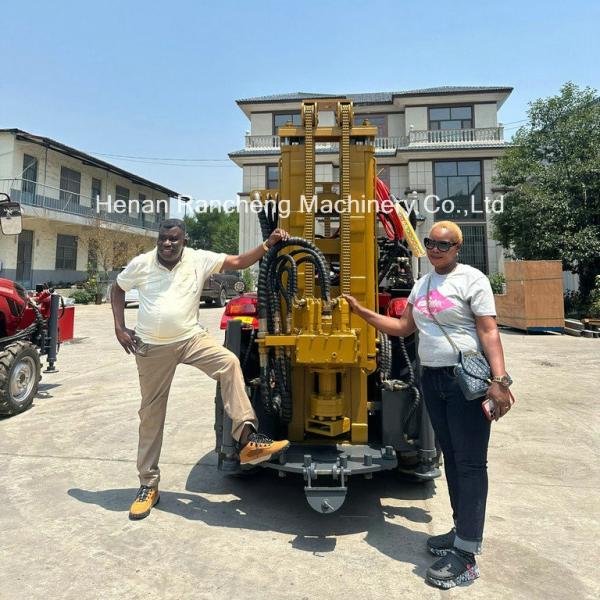

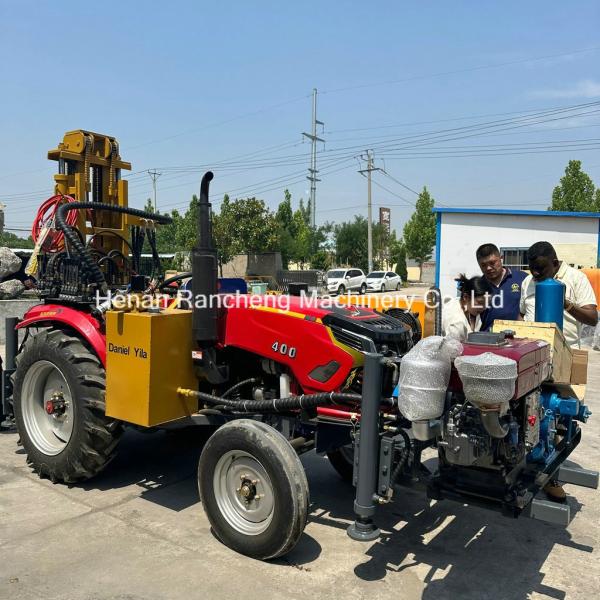

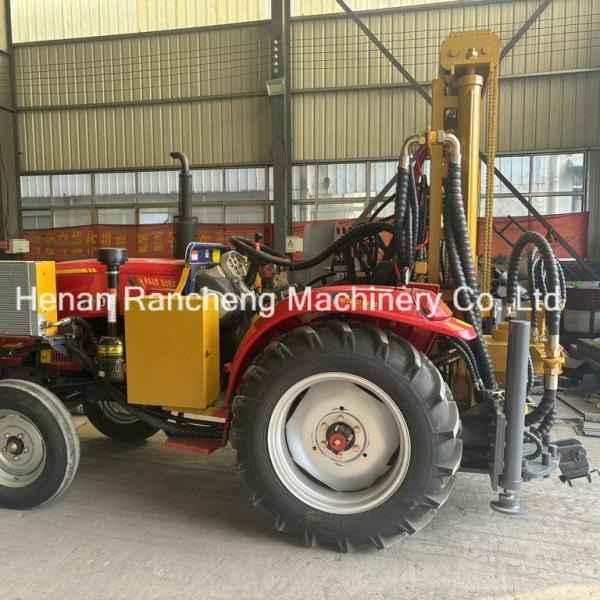

Machine Pictures

200m Hydraulic Water Well Drilling Machine With 40HP Tractor Horse Power

200m Hydraulic Water Well Drilling Machine With 40HP Tractor Horse Power200m Hydraulic Water Well Drilling Machine With 40HP Tractor Horse Power

200m Hydraulic Water Well Drilling Machine With 40HP Tractor Horse Power

200m Hydraulic Water Well Drilling Machine With 40HP Tractor Horse Power
