Hydraulic Compact Mini Rotary Pile Drilling Rig For Small Scale Drilling Operations
Hydraulic Compact Mini Rotary Pile Drilling Rig For Small Scale Drilling Operations
Hydraulic Compact Mini Rotary Pile Drilling Rig For Small Scale Drilling Operations
Hydraulic Compact Mini Rotary Pile Drilling Rig For Small Scale Drilling Operations
Hydraulic Compact Mini Rotary Pile Drilling Rig For Small Scale Drilling Operations
Hydraulic Compact Mini Rotary Pile Drilling Rig For Small Scale Drilling Operations
Specifications
Brand Name :
RanCheng
Model Number :
RCQ-10G
Certification :
CE, ISO 9001:2000
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100sets per Month
Delivery Time :
10-15 working days
Packaging Details :
Standard shipping
Drilling depth :
10m
Drilling diameter :
300-1000mm
Chassis :
XCMG SE60G excavator
Diesel engine :
Kubota engine WP3.2 36.8KW
Power head torque :
35KN.m
Rotary head travel distance :
1100mm
Description

product description


The RCQ-10G is a specialized hydraulic mini pile drilling rig designed for high-performance piling in limited and narrow spaces where traditional rigs cannot operate. Mounted on the XCMG SE60G excavator chassis, it combines mobility, flexibility, and power, achieving a maximum drilling diameter of 1000mm with adjustable working angles, radius, and customizable drill bits.

Technical Parameter

Model RCQ-10G
Drilling depth (m)10m
Drilling diameter (mm)300-1000mm
ChassisXCMG SE60G excavator
Diesel engine

Kubota engine WP3.2
36.8KW

Rotary head
Power head torque (KN.m)35KN.m
Rotary head travel distance1100mm
Rotary speed (r/min)10-45RPM
Rated lifting force27KN
Rated pushing force25KN
Winch
Main winch rated lifting force38KN
Assisting winch rated lifting force14KN
Chassis
Travel speed3km/h
Max climbing gradient30°
Chassis width2000mm
Machine weight9.3T

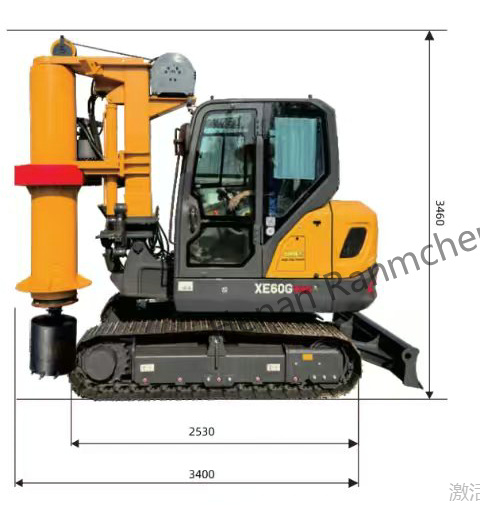

Machine transportation dimension3450X2025X3400mm


Key Features

  • Max Drilling Diameter: 1000mm
  • Chassis: XCMG SE60G Excavator (all-terrain adaptability)
  • No Rod Disassembly Needed: This saves time and labor
  • High-Speed Mobility: Rapid deployment between sites

Application


RCQ-10G Hydraulic Mini Pile Drilling Rig easily navigates tight spaces like elevator shafts, building interiors, low-clearance sites, and narrow roadbeds, making it ideal for municipal, highway, and electrified railway projects.

The RCQ-10G hydraulic mini pile drilling rig is specifically optimized to meet the demands of contractors who require agile and cost-effective piling solutions. Its compact design and maneuverability make it particularly suitable for projects in congested urban environments or hard-to-reach locations where traditional drilling equipment cannot operate. For specialized project requirements, we welcome inquiries about custom-engineered solutions tailored to your specific job site conditions and performance needs.
