Specifications
Brand Name :
RanCheng
Model Number :
RCF150C
Certification :
CE, ISO 9001:2000
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100sets per Month
Delivery Time :
10-15 working days
Packaging Details :
It can be shipped by one 20" container
Name :
Hydraulic Water Well Drilling Machine
Model :
RCF150C
Bore Depth :
150m
Bore diameter（hammer） :
90-300mm
Pipe diameter :
76mm/89mm
Pipe length :
3m
Description

Crawler Type Hydraulic Water Well Drilling Rig For Core Drilling Rig Home Water Well Equipment 150m Depth

Product Description

RCF150C deep water well drilling rig is a product independently developed by our company. Adopting the latest model and advanced hydraulic technology, low consumption, large rotation torque, convenient hole formation, our water well drilling rig is mainly used for resource exploration and drilling of hydrological wells, civil water wells, agricultural irrigation and other projects.

Using high-quality materials and stylish and compact design, the drilling rig is more efficient, has a lower failure rate, is economical and durable, and has a higher comprehensive cost performance. Our water drilling rig has been truly recognized by the market and has received positive feedback from most customers.

Technical Parameters

Bore diameter(Hammer) 90-300mm
Bore depth 150m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Pipe diameter 76mm/89mm
Pipe length 3m
Push force 4T
Lifting force 12T
Lifting speed 2.5m/min
feeding speed 0.5-5m/min
Fast lifting speed 18m/min
Fast feeding speed 35m/min
Max torque of rotary 3500-3800Nm
Rotary speed 40-65r/min
Mud Pump flow 200L/min (option)
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 3500×1700×2250MM
Weight 3700kg
Diesel engine 42KW

Product advantages

1. It consists of three parts: the main engine, the pump station, and the control console.
2. It can be put into production in the original transportation and exploration tunnels, protecting the overall structure of the mine, and can also perform 0-90 degree drilling on the ground.
3. The drilling rig is flexible in layout, and the drill rod is mechanically unscrewed, which reduces the labor intensity of workers and improves work efficiency.
4. It adopts a box-type feed frame, clamps the gripper, rotates the power head to drill, and the oil cylinder pulls and sends out the drilling tool. The bulky drilling rig is eliminated.

Application:

The water well drilling rig is mainly used for resource exploration and drilling of hydrological wells, civil water wells, agricultural irrigation and other projects.

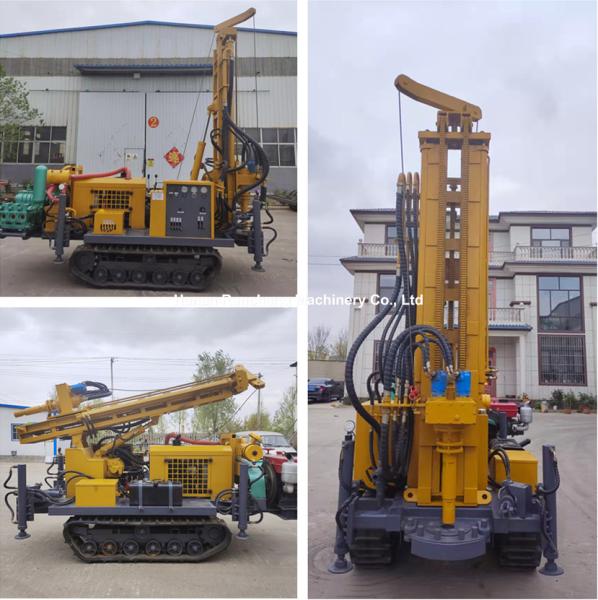

Machine pictures

Crawler Type Hydraulic Water Well Drilling Rig For Core Drilling Rig Home Water Well Equipment 150m DepthCrawler Type Hydraulic Water Well Drilling Rig For Core Drilling Rig Home Water Well Equipment 150m DepthCrawler Type Hydraulic Water Well Drilling Rig For Core Drilling Rig Home Water Well Equipment 150m DepthCrawler Type Hydraulic Water Well Drilling Rig For Core Drilling Rig Home Water Well Equipment 150m Depth
