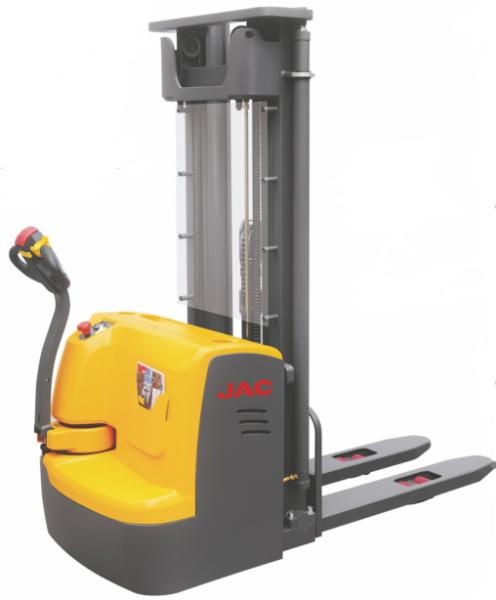

1500KG Loading Capacity Electric Pallet Truck Stacker AC Motor Economic Type
1500KG Loading Capacity Electric Pallet Truck Stacker AC Motor Economic Type
Specifications
Brand Name :
JAC
Model Number :
CDDW15-III
Certification :
CE,ISO9001,ISO14001,OHSAS18001
Place of Origin :
CHINA
MOQ :
1UNIT
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000UNITS/MONTH
Delivery Time :
About 25 days
Load Capacity :
1500KG
Warranty :
One Year
Power :
Electricity
Color :
Red or Yellow
Motor :
AC motor
Max Lift :
3.3 m
Description

Load Capacity 1.5 Ton Electric Stacker ,walking type and economic type. Warehouse Forklift , Lift Height From 1.6m to 3.3m

This Model is economic type, which provides a cost effective solution for applications involving medium lifting storage and short distance pallets transportation.

Advantages:

STRUCTURAL AND SAFETY :
• Advanced AC control system Intelligentized regenerative brake system.
• Multi-function display with BDI and fault code etc.

• Emergency power disconnect.
• Emergency reversing device.

• With lifting limit switch to shut off pump motor at the max. lifting height.
• Auto deceleration system utilizes regenerative braking .
• Built-in pressure relief valve protects the trucks from overloads.
• stepless speed control.
•It has a small turning radius. The standing driving motor structure is water-proof and dust-proof.

SERVICEABILITY:

• Side-way battery with roll-out system is very convenient for replacement.
• CANbus technology reduces wiring complexity and increase reliability.
• Advanced AC control system with brushless motor .
• Auto deceleraion system utilises regenerative braking .

Parameters:

Model 　 CDDW15-Ⅲ
Load capacity Q(kg) 1500
Load centre distance c(mm) 600
Load distance, centre of drive axle to fork x(mm) 697
Fork height, lowered h13(mm) 90
Tyre size, front mm φ250×70
Tyre size, rear mm φ80×70
Additional wheels(dimensions) mm φ150×60
Wheels, number front rear(x=driven wheels) 　 1x+1/4
Height, mast lowered h1(mm) 2087/1837/2087/2237
Free lift(option 2500~3500mm) h2(mm) ~
Max. lift height h3(mm) 1600/2500/3000/3300
Height,mast extended h4(mm) 2087/3087/3587/3887
Height of tiller in drive position min./max. h14(mm) 670/1300
Overall width b1(mm) 2045
Overall length l1(mm) 878
Length to face of forks l2(mm) 820
Fork dimensions s/e/l(mm) 60/170/1070(1150)
Width overall forks b5(mm) 570/695
Aisle width for pallets 800×1200 lengthways Ast(mm) 2450
Turning radius Wa(mm) 1605
Travel speed, laden/unladen Km/h 5.8/6
Lift speed, laden/unladen m/s 0.06/0.13
Lowering speed, laden/unladen m/s 0.13/0.10
Battery voltage,nominal capacity K5(Duplex Mast) V/Ah 24/200
Battery voltage,nominal capacity K5(Triplex Mast) V/Ah ~
Battery weight kg 160
Battery dimensions l/w/h mm 800x254x320
Service weight(with battery) kg 760/810/835/860


1500KG Loading Capacity Electric Pallet Truck Stacker AC Motor Economic Type1500KG Loading Capacity Electric Pallet Truck Stacker AC Motor Economic Type
