CE Standard Electric Tow Vehicles / Electric Tow Tug With 5.0 Ton Traction Weight
CE Standard Electric Tow Vehicles / Electric Tow Tug With 5.0 Ton Traction Weight
Specifications
Brand Name :
JAC
Model Number :
QDD50
Certification :
CE,ISO9001,ISO14001,OHSAS18001
Place of Origin :
CHINA
MOQ :
1UNIT
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000UNITS/MONTH
Delivery Time :
30 days
Traction weight :
5000KGS
Warranty :
One Year
Power :
Electricity
Color :
Red or Yellow
Description

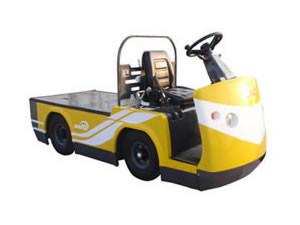

JAC Electric Tow Tractor / 5.0 Ton Traction Weight , Electric Tow Tugs , Red or Yellow Color

Advantage:

1.The integrated type pedal pad has high elasticity, good slip resistance, and nice appearance.

2.The JAC tractor comes with aluminum control arm The reasonable design enables convenient operation and relieves the fatigue of worker

3.Integrated type operating handle makes for convenient and easy control on the industrial tractor.

4.CURTIS AC control system

Parameters:

Model 　 QDD50
Power 　 Battery
Rated traction weight (60 minutes rated) kg 5000
Draw bar center height h1/h2(mm) 280/350
Weight kg 1240
Axle loading, front kg 410
Axle loading, rear kg 830
Tyre number front/rear X=Driven wheels 1/2X
Tyre size, front solid rubber 15*41/2-8
Tyre size, rear solid rubber 4.00-8
Rear hanging distance L2(mm) 500
Seat height h3(mm) 910
Overall length L(mm) 1975
Overall width W(mm) 1100
Overall height H(mm) 1250
Min. ground height X(mm) 90
Min. turning radius Wa(mm) 1650
Travel speed, laden/unladen km/h 8
Wheel base L1(mm) 1280
Max. gradeability(laden/unladen) 　 6/15
Battery voltage, nominal capacity K5 V/Ah 48/360
Battery weight kg 530
Traction bolt 　 Traction bolt
