Large Capacity Electric Tow Tractor Good Stability With Traction Weight 10 Ton
Large Capacity Electric Tow Tractor Good Stability With Traction Weight 10 Ton
Specifications
Brand Name :
JAC
Model Number :
QDD100
Certification :
CE,ISO9001,ISO14001,OHSAS18001
Place of Origin :
CHINA
MOQ :
1UNIT
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000UNITS/MONTH
Delivery Time :
30 days
Traction weight :
6000KGS
Warranty :
One Year
Power :
Electricity
Color :
Red or Yellow
Description

Large Capacity Tow Tractor With Traction Weight 10 Ton , Red or Yellow Color

Advantage:
●”H”type axle design gives a good stability.
● Batteries located in the lowest part of frame, low center of gravity ensures excellent stability.
● Multi-function display: battery status, hour meter, error code etc.
● The application of hand brake and hydraulic brake improve the safety level.
● Easy-open back cover to open for maintenance and replacement of parts such as drive wheel, oil tube, accelerator, controller etc.

Parameters:

Model 　 QDD100
Drive type 　 Battery
Rated traction weight (60 minutes rated) kg 10000

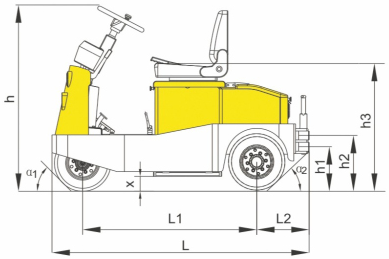

Draw bar center height h1/h2(mm) 320/400
Weight kg 2180
Axle loading, front kg 750
Axle loading, rear kg 1440
Tyre number front/rear X=Driven wheels 2/2X
Tyre size, front solid rubber 5.00-8-10PR
Tyre size, rear solid rubber 6.50-10-12PR
Rear hanging distance L2(mm) 600
Seat height h3(mm) 1050
Overall length L(mm) 2485
Overall width W(mm) 1160
Overall height H(mm) 1480
Min. ground height X(mm) 138
Min. turning radius Wa(mm) 2200
Travel speed, laden/unladen km/h 6.5
Wheel base L1(mm) 1300
Max. gradeability(laden/unladen) 　 6/15
Battery voltage, nominal capacity K5 V/Ah 48/540
Battery weight kg 950
Traction bolt 　 Traction bolt
