1.5 Ton Forklift Reach Stacker , Single Scissor Forward Warehouse Stand Up Forklift
1.5 Ton Forklift Reach Stacker , Single Scissor Forward Warehouse Stand Up Forklift
Specifications
Brand Name :
JAC
Model Number :
CQDH15A-I
Certification :
CE,ISO9001,ISO14001,OHSAS18001
Place of Origin :
CHINA
MOQ :
1UNIT
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000UNITS/MONTH
Delivery Time :
30 days
Load Capacity :
1500KGS
Warranty :
One Year
Power :
Electricity
Color :
Red or Yellow
Lift height :
3.3m-6.3m
Controller :
Curtis or PG
HS CODE :
8427109000
Free Lift :
1.5m-1.8m
Description

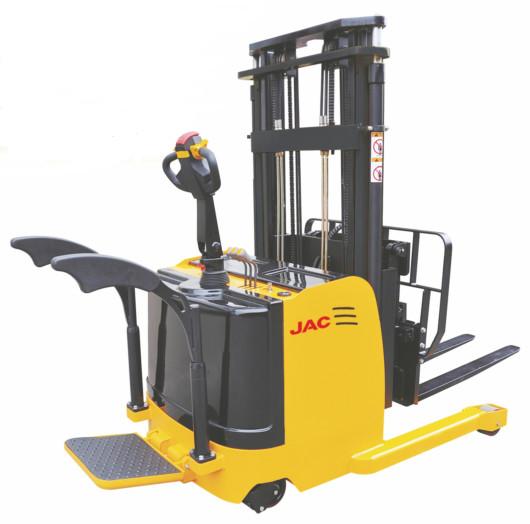

Reach Stacker with Load Capacity 1.5T , Single Scissor Type Stand-on type


Advantages:
•Compact structure are specially suit to use in very narrow Aisle warehouse.
•Low gravity, ensure safety operation.
•With disassemble type platform and protection arm.
•Use hydraulic type multi-valve to control l lifting/lowering , fork reach , fork tilting.
•Use Handle to control the truck forward and backward.
•The mast and frame are dividable and exchangeable.
•With small turning radius , with good operation performance.
•Multi function display with BDI and hour meter.
•Single Scissor fork reach distance is 500mm. Option of double reach can reach 1200mm (Option for CQDH15A)


Parameters:

Model　CQDH15A-I(single scissor)
Load capacity/rated loadQ(kg)1500
Load centre distanceC(mm)500
Load distance, centre of drive axle to forkX(mm)287(double mast)/315(triple mast)
Tyre size, frontmmΦ250×82+150×62
Tyre size, rearmmΦ125×82×4
Wheels, number front rear(x=driven wheels)　1x+2/4
Forks, tilt forward/back.2/5
Height, mast loweredh1(mm)1869/2119/2369/2619/2179/2341/2499
Free lifth2(mm)~/~/~/~/1575/1700/1825
Max. lift heighth3(mm)2500/3000/3500/4000/4500/5000/5500
Height,mast extendedh4(mm)3381/3881/4381/4881/5381/5881/6381
Overall lengthl1(mm)2364/2364/2364/2364/2384/2384/2384
Length to face of forksl2(mm)1289(double mast)/1314(triple mast)
Overall widthb1/b2(mm)1200-1300/950
Fork dimensionss/e/l(mm)35/100/1070
Reach distancel4(mm)500
Aisle width for pallets 1000×1200 crosswiseAst(mm)2742¹/2767²
Aisle width for pallets 800×1200 lengthwaysAst(mm)2806¹/2830²
Turning radiusWa(mm)1613¹/1647²
Travel speed,laden/unladenKm/h4.8/5
Lift speed,laden/unladenm/s0.095/0.12
Lowering speed,laden/unladenm/s0.2/0.15
Battery voltage,nominal capacity K5V/Ah24/320(460)
Battery weightkg285(360)
Battery dimensionsmm812x270x535
Service weight(with battery)kg2250/2300/2350/2350/2500/2550/2600
