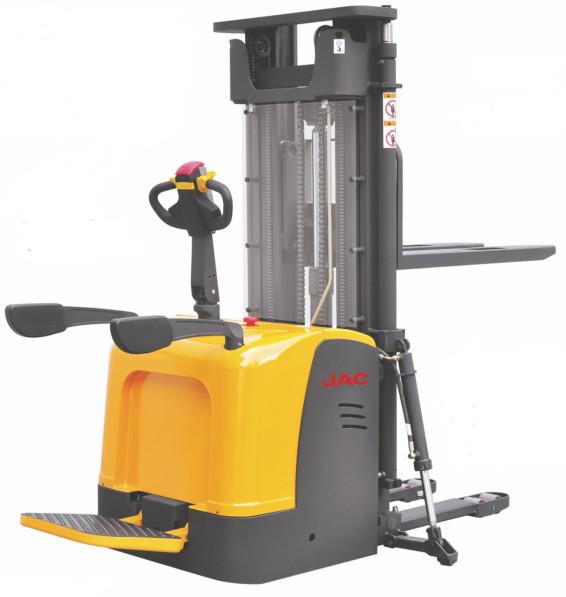

Stand On Electric Stacker Truck , Electric Lift Pallet Stacker Low Noise Operation
Stand On Electric Stacker Truck , Electric Lift Pallet Stacker Low Noise Operation
Specifications
Brand Name :
JAC
Model Number :
CDDR20
Certification :
CE,ISO9001,ISO14001,OHSAS18001
Place of Origin :
CHINA
MOQ :
1UNIT
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000UNITS/MONTH
Delivery Time :
30 days
Packaging Details :
Pallet
Load Capacity :
2000KGS
Warranty :
One Year
Power :
Electricity
Color :
Red or Yellow
Lift height :
2.5m-5.6m
Controller :
Curtis or PG
Free Lift :
1940 mm
Turning Radius :
1655 mm
Description

Electric Lift Pallet Stacker With Load Capacity 2 Ton , Small Turning Radius , Stand-on type

SAFETY AND PRODUNCTIVITY:
• AC Motor eliminates carbon brush replacement.
• Multi-function display with BDI and hour meter.
• Side way battery is easy to maintain.
• Damping cushion for low-noise operation.
• Emergency reversing device equipped handle to keep safe.
• Auto deceleration function makes operation more safely.
• Built-in pressure relief valve protects the trucks from overloads, increases the reliability.
• With brake in handle upright and horizontal position, increasing the safety of the truck.
• Emergency power disconnect switch.
• Turtle-shaped low speed switch.
• Stepless speed control.

OPTIMUM STRUCTURAL DESIGN:
• Low barycenter ensures the stable operation.
• Vertical drive wheel ensures convenience for maintenance while also ensuring a small turning radius.
The structure of motor is water-proof and dust-proof, which makes the braking and motor more durable and reliable.
• The mast and the frame are dividable and exchangeable.
• Full free lifting, fit for low roof house. (3M lift height truck can enter into a 2M door).


SERVICEABILITY:
• Low voltage protection setting prolongs the battery use time.
• The electronic components’ concentrated design simplifies the circuit and makes easy access to assemble, debug and maintain.
• CANbus technology reduces wiring complexity and increase reliability.
• Hall element reduces wear components, resulting in increased component life.

Parameters:

Model 　 CDDR20
Load capacity Q(kg) 2000
Load center c(mm) 600
Load distance x(mm) 672
Tyre size, front mm Φ250×70
Tyre size, rear mm Φ80×84
Additional Wheels(dimensions) mm Φ150×60
Wheels, number front rear(x=driven wheels) 　 1x+2/4
Height, mast lowered H1 1735/1985/2135/2235/2050/2210/2410
Free lift (option) H2 ~/~/~/~/1570/1740/1940
Max. lift height h3(mm) 2500/3000/3300/3500/4500/5000/5600
Height, mast extended h4(mm) 2955/3455/3755/3955/5030/5510/6110
Height of tiller in drive position min./max h14(mm) 1150/1450
Fork height, lowered h13(mm) 90
Overall length l1(mm) 2020/2100
Length to face forks l2(mm) 950
Overall width b1(mm) 850
Fork dimensions s/e/l(mm) 60/180/1070(1150)
Width overall forks b5(mm) 570/695
Aisle width for pallets 800×1200 crossways Ast(mm) 2515
Turning radius Wa(mm) 1655
Travel speed, laden/unladen Km/h 5.8/6
Lift speed, laden/unladen m/s 0.09/0.11
Lowering speed, laden/unladen m/s 0.12/0.11
Battery voltage, nominal capacity K5 V/Ah 24/300
Battery weight kg 300
Battery dimensions l/w/h mm 675x254x500
Service weight(with battery) kg 1280/1320/1350/1640/1680/1720/2020
