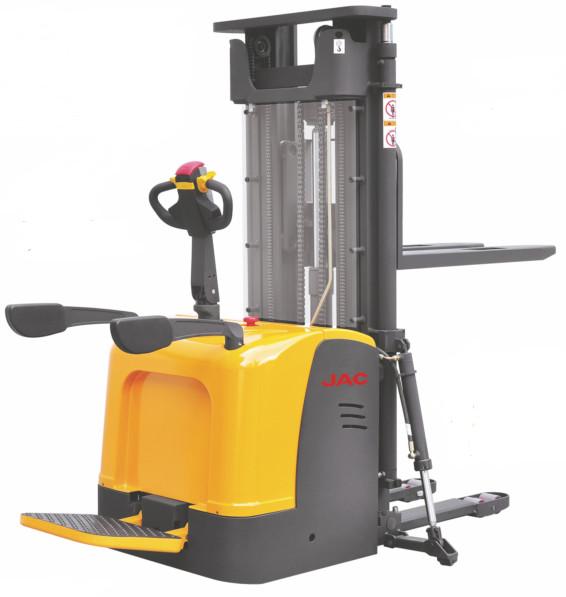

Straddle Pallet Electric Stacker Truck High Performance 6.5m Lift Height
Straddle Pallet Electric Stacker Truck High Performance 6.5m Lift Height
Specifications
Brand Name :
JAC
Model Number :
CDDR20H
Certification :
CE,ISO9001,ISO14001,OHSAS18001
Place of Origin :
CHINA
MOQ :
1UNIT
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000UNITS/MONTH
Delivery Time :
30 days
Packaging Details :
Pallet
Load Capacity :
2000KGS
Warranty :
One Year
Power :
Electricity
Color :
Red or Yellow
Lift height :
6.5m
Controller :
Curtis or PG
Free Lift :
2240mm
Turning Radius :
1735mm
Description

Electric Straddle Pallet Stacker , Load Capacity 2 Ton , Narrow Aisle Forklift , Stand-on Type , 6.5m Lift Height

SAFETY AND PRODUNCTIVITY:
• AC Motor eliminates carbon brush replacement.
• Multi-function display with BDI and hour meter.
• Side way battery is easy to maintain.
• Damping cushion for low-noise operation.
• Emergency reversing device equipped handle to keep safe.
• Auto deceleration function makes operation more safely.
• Built-in pressure relief valve protects the trucks from overloads, increases the reliability.
• With brake in handle upright and horizontal position, increasing the safety of the truck.
• Emergency power disconnect switch.
• Turtle-shaped low speed switch.
• Stepless speed control.

OPTIMUM STRUCTURAL DESIGN:
• Low barycenter ensures the stable operation.
• Vertical drive wheel ensures convenience for maintenance while also ensuring a small turning radius.
The structure of motor is water-proof and dust-proof, which makes the braking and motor more durable and reliable.
• The mast and the frame are dividable and exchangeable.
• Full free lifting, fit for low roof house. (3M lift height truck can enter into a 2M door).


SERVICEABILITY:
• Low voltage protection setting prolongs the battery use time.
• The electronic components’ concentrated design simplifies the circuit and makes easy access to assemble, debug and maintain.
• CANbus technology reduces wiring complexity and increase reliability.
• Hall element reduces wear components, resulting in increased component life.

Parameters:

Model 　 CDDR20(6.5m)
Load capacity Q(kg) 2000
Load center c(mm) 500
Load distance x(mm) 672
Tyre size, front mm Φ250×70
Tyre size, rear mm Φ80×84
Additional Wheels(dimensions) mm Φ150×60
Wheels, number front rear(x=driven wheels) 　 1x+2/4
Height, mast lowered H1 2710
Free lift (option) H2 2240
Max. lift height h3(mm) 6500
Height, mast extended h4(mm) 7050
Height of tiller in drive position min./max h14(mm) 1150/1450
Fork height, lowered h13(mm) 90
Overall length l1(mm) 2100/2180
Length to face forks l2(mm) 950
Overall width b1(mm) 950
Fork dimensions s/e/l(mm) 60/180/1070(1150)
Width overall forks b5(mm) 570/695
Aisle width for pallets 800×1200 crossways Ast(mm) 2595
Turning radius Wa(mm) 1735
Travel speed, laden/unladen Km/h 5.8/6
Lift speed, laden/unladen m/s 0.09/0.11
Lowering speed, laden/unladen m/s 0.12/0.11
Battery voltage, nominal capacity K5 V/Ah 24/300
Battery weight kg 300
Battery dimensions l/w/h mm 675x254x500
Service weight(with battery) kg 1850


Straddle Pallet Electric Stacker Truck High Performance 6.5m Lift HeightStraddle Pallet Electric Stacker Truck High Performance 6.5m Lift Height

Straddle Pallet Electric Stacker Truck High Performance 6.5m Lift Height
