Adjustable Electric Powered Forklift 1 Ton Loading Capacity Semi Electric Type
Adjustable Electric Powered Forklift 1 Ton Loading Capacity Semi Electric Type
Specifications
Brand Name :
JAC
Model Number :
CDD10B-III
Certification :
CE,ISO9001,ISO14001,OHSAS18001
Place of Origin :
CHINA
MOQ :
1UNIT
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000UNITS/MONTH
Delivery Time :
25 days
Load Capacity :
1000KG
Warranty :
One Year
Power :
Semi-Electricity
Color :
Red or Yellow
Description

Adjustable Electric Powered Forklift , 1 Ton Loading Capacity , Semi-electric Stacker Truck , AC Power system

Advantages:
• Handle-castor chain assist steering system greatly reduces the labor intensity.
• Equipped with explosion-proof valve, against of sudden drop of forks and prevent operator from harm.
• Over-discharge protection device greatly prolongs the battery use time.
• Overall type adjustable forks,which can be lowered to the same level of the legs.
•Chain connect side wheel and handle, easy for steering.
•Easy operating foot brake.

Parameters:

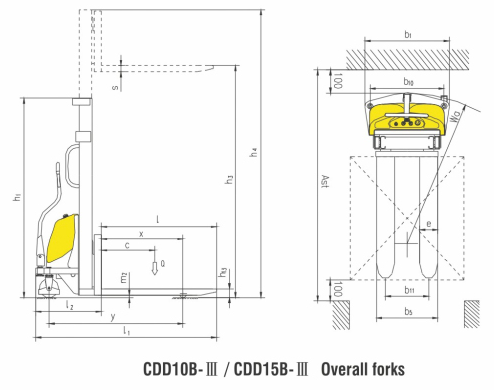

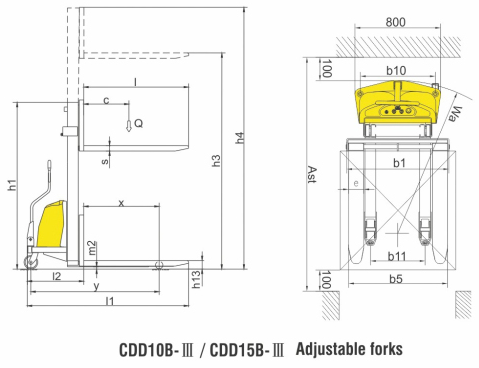

Model 　 Overall forks Adjustable forks
CDD10B-III CDD10B-III
Load capacity Q(kg) 1000 1000
Load centre distance c(mm) 500 500
Load distance, centre of drive axle to fork x(mm) 802 745
Tyre size , front mm Φ180×50 Φ180×50
Tyre size , rear mm Φ80×70 Φ80×70
Wheels, number front rear(x= driven wheels) 　 2/2 2/2
Fork height, lowered h13 90 90
Height, mast lowered h1 2090/1840/2090/2240/2340 2090/1840/2090/2240/2340
Max. lift height h3(mm) 1600/2500/3000/3300/3500 1600/2500/3000/3300/3500
Height, mast extended h4 (mm) 2090/3060/3560/3860/4060 2090/3060/3560/3860/4060
Overall length l1(mm) 1678 1735
Length to face of forks l2 (mm) 608 665
Overall width b1(mm) 800 955
Fork dimensions s/e/l (mm) 60/170/1070 60/142/1070
Width overall forks b5 (mm) 570/695 295-930
Aisle width for pallets 800×1200 lengthways Ast(mm) 2267 2267
Turning radius Wa(mm) 1425 1425
Lift speed , laden/unladen m/s 0.07/0.09 0.07/0.09
Lowering speed , laden/unladen m/s 0.1/0.13 0.1/0.13
Service brake 　 mechanical mechanical
Battery voltage , nominal capacity K5 V/Ah 12/120 12/120
Battery weight kg 45 45
Battery dimensions l/w /h mm 360x170x250 360x170x250
Service weight (with battery) kg 355/410/445/475/495 385/440/475/505/525
