Electric Lead Acid Powerful battery AC Pedestrian Stacker Forklift , Warehouse Indoor Walk Pallet Stacker Forklift
Electric Lead Acid Powerful battery AC Pedestrian Stacker Forklift , Warehouse Indoor Walk Pallet Stacker Forklift
Specifications
Brand Name :
JAC
Model Number :
CDDW12-III
Certification :
CE,ISO9001,ISO14001,OHSAS18001
Place of Origin :
CHINA
MOQ :
1UNIT
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000UNITS/MONTH
Delivery Time :
25 days
Load Capacity :
1200KG
Warranty :
One Year
Power :
Electricity
Color :
Red or Yellow
Description

Walking Electric Stacker Truck , Electric Lift Pallet Stacker , Warehouse Indoor Forklift , Load Capacity 1.2 Ton

Walkie type electric stacker provides a cost effective solution for applications involving medium lifting storage and short distance pallets transportation.
Advantages:
STRUCTURAL AND SAFETY :
• Advanced AC control system Intelligentized regenerative brake system.

• Built-in pressure relief valve protects the trucks from overloads.

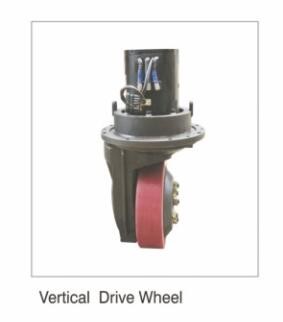

• Standing driving motor system has a small turning radius. The motor structure is water-proof and dust-proof.
• Multi-function display with BDI and fault code etc.
• Emergency power disconnect.
• Stepless speed control.
• With lifting limit switch to shut off pump motor at the max. lifting height.
• Emergency reversing device.
• Auto deceleration system utilizes regenerative braking .

SERVICEABILITY:
• CANbus technology reduces wiring complexity and increase reliability.

• Auto deceleraion system utilises regenerative braking .

• Advanced AC control system with brushless motor .
• Side-way battery with roll-out system is very convenient for replacement.

Parameters:

Model 　 CDDW12-Ⅲ
Load capacity Q(kg) 1200
Load centre distance c(mm) 500
Load distance, centre of drive axle to fork x(mm) 697
Fork height, lowered h13(mm) 90
Tyre size, front mm φ250×70
Tyre size, rear mm φ80×70
Additional wheels(dimensions) mm φ150×60
Wheels, number front rear(x=driven wheels) 　 1x+1/4
Height, mast lowered h1(mm) 2087/1837/2087/2237
Free lift(option 2500~3500mm) h2(mm) ~
Max. lift height h3(mm) 1600/2500/3000/3300
Height,mast extended h4(mm) 2087/3087/3587/3887
Height of tiller in drive position min./max. h14(mm) 670/1300
Overall width b1(mm) 1965
Overall length l1(mm) 792
Length to face of forks l2(mm) 820
Fork dimensions s/e/l(mm) 60/170/1070(1150)
Width overall forks b5(mm) 570/695
Aisle width for pallets 800×1200 lengthways Ast(mm) 2370
Turning radius Wa(mm) 1525
Travel speed, laden/unladen Km/h 5.3/5.6
Lift speed, laden/unladen m/s 0.06/0.13
Lowering speed, laden/unladen m/s 0.13/0.10
Battery voltage,nominal capacity K5(Duplex Mast) V/Ah 24/120
Battery voltage,nominal capacity K5(Triplex Mast) V/Ah ~
Battery weight kg 90
Battery dimensions l/w/h mm 753x178x240
Service weight(with battery) kg 750/770/790/815
