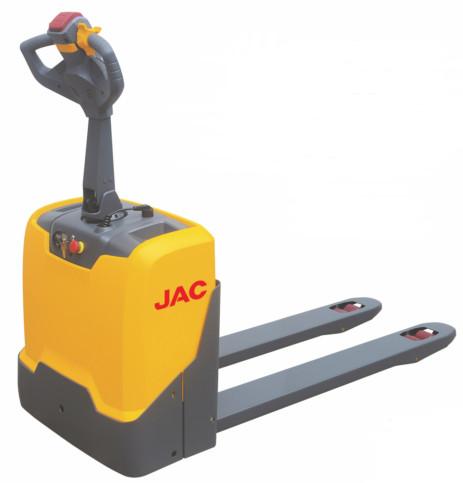

1.5 Ton Capacity Walkie Pallet Truck , Indoor Equipment Small Pallet Jack
1.5 Ton Capacity Walkie Pallet Truck , Indoor Equipment Small Pallet Jack
Specifications
Brand Name :
JAC
Model Number :
CBD15W
Certification :
CE,ISO9001,ISO14001,OHSAS18001
Place of Origin :
CHINA
MOQ :
1UNIT
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000UNITS/MONTH
Delivery Time :
25 days
Load Capacity :
1500KG
Warranty :
One Year
Power :
Electricity
Color :
Red or Yellow
Lift height :
190mm
Controller :
Curtis or PG
Aisle Width :
1.725 meters
Turning Radius :
1.347 meters
Description

Electric Walkie Pallet Truck With Load Capacity 1.5 Ton , Warehouse Indoor Equipment , Red or Yellow Color

Advantages:
• With smallest turning radius 1320mm-1389mm (width 520mm/550mm/685mm).
• Brushless motor with high electric efficiency , maintenance free.
• Full sealed battery free to maintain, big capacity 80AH fit for high intensity use .
• Max speed limit button can release brake when handle under upright position, reduce turning space greatly. (option for frei handle)
• High travel speed is up to 5.3-5.8km/h, improve productive efficiency.
• Floating balance wheel is automatic adjust height, prevents shaking when unload.
• Horizontal drive wheel provides convenient replacement.
Standard Features:
• JAC new type Tiller Head with Max. speed limit button.
• Emergency stop & belly button.
• BDI and hour meter.
• Casters to balance stability.
• Sealed battery.
• Brush-less Horizontal motor.
• Built-in Charger.
• Exist roller.

Options:

• Germany FREI Tiller Head.
• Out side charger.
• Fork width and length (size).
• Load backrest.

Parameters:

Model 　 CBD15W
Load capacity Q(kg) 1500
Fork height, lowered h13(mm) 85/75
Tyre size, front mm Φ195×70
Tyre size, rear(single) mm Φ80×93/Φ74×93
Tyre size, rear(double) mm Φ80×70/Φ74×70
Wheels, number front rear(x = driven wheels) 　 1x-2/4
Max. lift height h3(mm) 190/180
Height of tiller in drive position min./ max. h14(mm) 950/1310
Overall length l1(mm) 1525/1595
Length to face of forks l2(mm) 375
Overall width b1(mm) 685
Fork dimensions s/e/l(mm) 53/160/1150(1220)
Width overall forks b5(mm) 520/550/685
Aisle width for pallets 1000×1200 (1200 crossways) Ast(mm) 1725/1795
Aisle width for pallets 800×1200 (1200 lengthways) Ast(mm) 1775/1795
Turning radius Wa(mm) 1347/1415
Travel speed, laden/ unladen km/h 5.3/5.8
Battery voltage/nominal capacity V/Ah 24/80
Battery dimensions l/w/h mm 260/169/215
Battery weight kg 49
Service weight (with battery) kg 230


1.5 Ton Capacity Walkie Pallet Truck , Indoor Equipment Small Pallet Jack1.5 Ton Capacity Walkie Pallet Truck , Indoor Equipment Small Pallet Jack

1.5 Ton Capacity Walkie Pallet Truck , Indoor Equipment Small Pallet Jack 1.5 Ton Capacity Walkie Pallet Truck , Indoor Equipment Small Pallet Jack 1.5 Ton Capacity Walkie Pallet Truck , Indoor Equipment Small Pallet Jack
