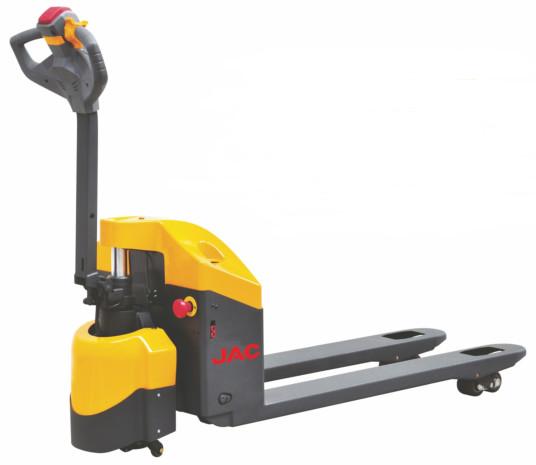

Large Capacity Semi Electric Powered Pallet Truck , Motorised Pallet Truck
Large Capacity Semi Electric Powered Pallet Truck , Motorised Pallet Truck
Specifications
Brand Name :
JAC
Model Number :
CBD20A
Certification :
CE,ISO9001,ISO14001,OHSAS18001
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000UNITS/MONTH
Delivery Time :
25 days
Load capacity :
2000KG
Warranty :
One year
Power :
Manual and electricity
Color :
Red or yellow
Description

Semi-electric Powered Pallet Truck With Load Capacity For 2 Ton , Large Capacity , Red or Yellow Color

Advantages:
• Permanent magnet brushless motor with high electric efficiency, maintenance free.
• Gradient performance is high.
• With smallest turning radius.
• Full sealed battery free to maintain, big capacity 24v/65AH fit for high intensity use.
• Traction speed is consistency under laden or unladen, improve productive efficiency.
• Horizontal drive wheel provides convenient replacement.
• Stepless speed control.
• Floating balance wheel is automatic adjust height, prevents shaking when unload.
• Built-in charger.

Parameters:

Model 　 CBD20A
Load capacity Q(kg) 2000
Load centre distance c(mm) 600
Fork height, lowered h13(mm) 87/77
Tyre size, front mm Φ195
Tyre size, rear mm Φ85/Φ75
Max. lift height h3(mm) 190/180
Height of tiller in drive position min./max. h14(mm) 770/1254
Overall length l,(mm) 1644/1714
Length to face of forks l2(mm) 490
Fork dimensions s/e/l(mm) 60/160/1150(1220)
Width overall forks b5(mm) 520/550/680
Aisle width for pallets 1000×1200 crossways As,(mm) 1844/1914
Aisle width for pallets 800×1200 lengthways As,(mm) 1894/1914
Turning radius Wa(mm) 1445/1515
Travel speed, laden/unladen Km/h 5/5.5
Battery voltage, nominal capacity K20 V/Ah 24/105
Battery weight Kg 49
Service weight(with battery) Kg 220
