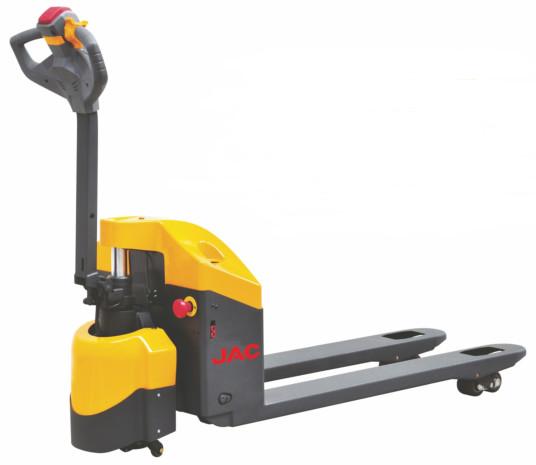

Semi Electric Pallet Truck Pallet Jet Load Capacity 1.5 Ton Stepless Speed Control
Semi Electric Pallet Truck Pallet Jet Load Capacity 1.5 Ton Stepless Speed Control
Specifications
Brand Name :
JAC
Model Number :
CBD15A / CBD15E
Certification :
CE,ISO9001,ISO14001,OHSAS18001
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000UNITS/MONTH
Delivery Time :
25 days
Load capacity :
1500KG
Warranty :
One year
Power :
Manual and electricity
Color :
Red or yellow
Description

Semi-electric Pallet Truck , Load Capacity 1.5 Ton , Pallet Jet

Advantages:
• Permanent magnet brushless motor with high electric efficiency, maintenance free.
• Gradient performance is high.
• With smallest turning radius.
• Full sealed battery free to maintain, big capacity 24v/65AH fit for high intensity use.
• Traction speed is consistency under laden or unladen, improve productive efficiency.
• Horizontal drive wheel provides convenient replacement.
• Stepless speed control.
• Floating balance wheel is automatic adjust height, prevents shaking when unload.
• Built-in charger.

Parameters:

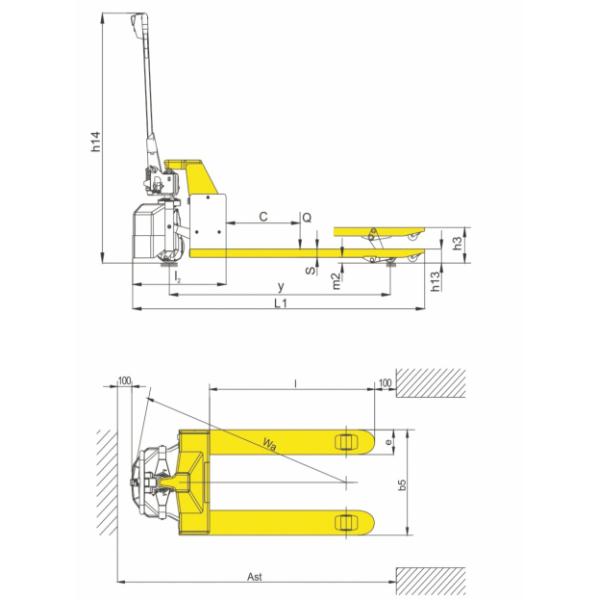

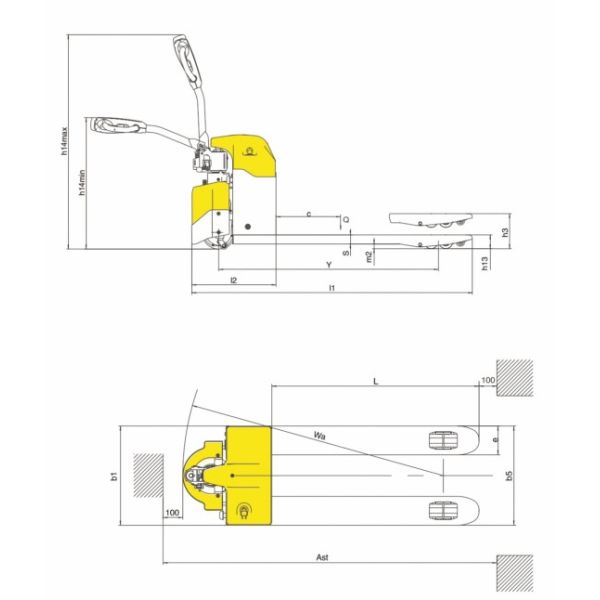

Model 　 CBD15A CBD15A-E
Load capacity Q(kg) 1500 1500
Load centre distance c(mm) 600 600
Fork height, lowered h13(mm) 85/75 85/75
Tyre size, front mm Φ195 Φ195
Tyre size, rear mm Φ80/Φ74 Φ80/Φ74
Max. lift height h3(mm) 190/180 190/180
Height of tiller in drive position min./max. h14(mm) 770/1254 770/1254
Overall length l,(mm) 1644/1714 1644/1714
Length to face of forks l2(mm) 490 490
Fork dimensions s/e/l(mm) 53/160/1150(1220) 53/160/1150(1220)
Width overall forks b5(mm) 520/550/680 520/550/680
Aisle width for pallets 1000×1200 crossways As,(mm) 1844/1914 1844/1914
Aisle width for pallets 800×1200 lengthways As,(mm) 1894/1914 1894/1914
Turning radius Wa(mm) 1445/1515 1445/1515
Travel speed, laden/unladen Km/h 5.3/5.8 5.3/5.8
Battery voltage, nominal capacity K20 V/Ah 24/85 24/65
Battery weight Kg 46 29.4
Service weight(with battery) Kg 200 180/185
