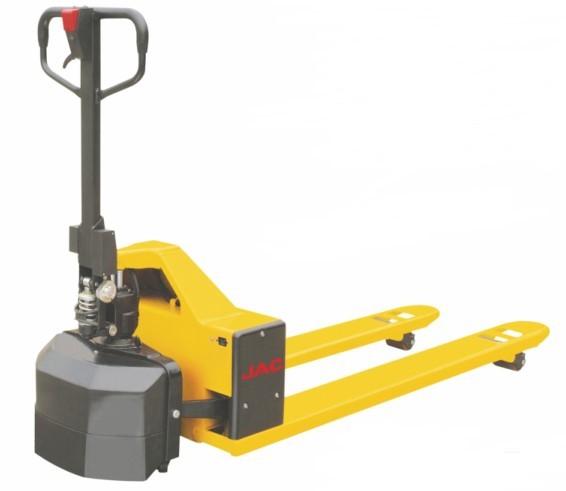

Brushless DC Motor Small Electric Pallet Jack , 1 Ton Motorised Pallet Jack
Brushless DC Motor Small Electric Pallet Jack , 1 Ton Motorised Pallet Jack
Brushless DC Motor Small Electric Pallet Jack , 1 Ton Motorised Pallet Jack
Brushless DC Motor Small Electric Pallet Jack , 1 Ton Motorised Pallet Jack
Specifications
Brand Name :
JAC
Model Number :
CBD10A-II
Certification :
CE,ISO9001,ISO14001,OHSAS18001
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000UNITS/MONTH
Delivery Time :
25 days
Load capacity :
1000KG
Warranty :
One year
Power :
Manual and electricity
Color :
Red or yellow
Description

Load Capacity 1 Ton / Electric Pallet Truck / Load Capacity 1 Ton

Advantages:
• Two-speed driving system.
• Emergency brake switch.
• Manual lifting and motor driving.
• Brushless DC motor,with maintenance free,low noise.
• Sealed batteries free of maintenance,safe operation and no pollution.
• Built-in charger.

Parameters:

Model 　 CBD10A-Ⅱ
Load Capacity Q(kg) 1000
Load centre distance c(mm) 500
Fork height, lowered h13(mm) 85/75
Tyre size,front mm Φ185
Tyre size,rear mm Φ80/Φ74
Max. lift height h3(mm) 200/190
Height of tiller in drive position min./max. h14(mm) 670/1244
Overall length l1(mm) 1685/1755
Length to face of forks l2(mm) 535
Fork dimensions s/e/l(mm) 45/160/1150(1220)
Width overall forks b5(mm) 520/550/680
Aisle width for pallets 1000×1200 crossways Ast(mm) 1885/1955
Aisle width for pallets 800×1200 lengthways Ast(mm) 1935/1955
Turning radius Wa(mm) 1490/1560
Travel speed,laden/unladen Km/h 2.6/3.8
Battery voltage,nominal capacity K5 V/Ah 24/38
Battery weight kg 28.5
Service weight (with battery) kg 150

Brushless DC Motor Small Electric Pallet Jack , 1 Ton Motorised Pallet JackBrushless DC Motor Small Electric Pallet Jack , 1 Ton Motorised Pallet Jack
