Large Capacity Riding Pallet Jack 2.5 Ton Stand On Type Indoor Forklift
Large Capacity Riding Pallet Jack 2.5 Ton Stand On Type Indoor Forklift
Specifications
Brand Name :
JAC
Model Number :
CBD25R-II
Certification :
CE,ISO9001,ISO14001,OHSAS18001
Place of Origin :
CHINA
MOQ :
1UNIT
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000UNITS/MONTH
Delivery Time :
25 days
Load Capacity :
2500KG
Warranty :
One Year
Power :
Electricity
Color :
Red or Yellow
Description

Electric Rider Pallet Truck , Large Capacity Truck , Loading Capacity 2.5 Ton , Stand-on type , Indoor Forklift

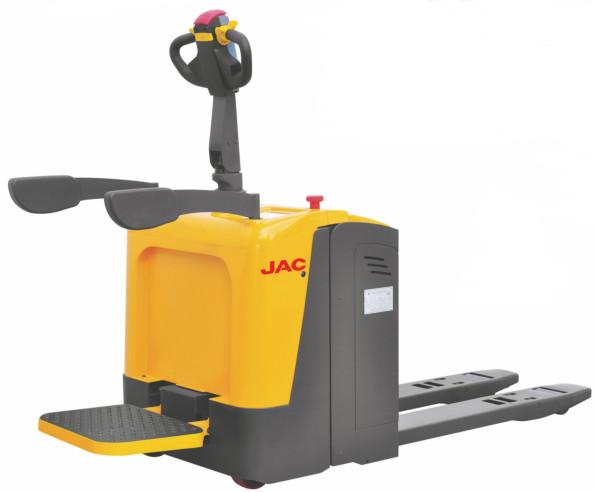

CBD25R is the stand-on type platform Pallet Truck, with small turning radius and super light steering system. widely used large warehouse and big supermarket for medium distance transport.
Standard features:
• Germany FREI Tiller Hand
• Emergency stop & belly button
• BDI and hour meter
• Casters to balance stability
• Industrial battery
• Brushless AC motor
• Vertical driving wheel
• Sideway battery change
• Out side Charger
• Platform with speed sensor
Option:
• Fork width and length(size)
• Load backrest
• Built-in Charger
• Customized battery compartment
• Entry & exist roller for empty pallets
• EPS
• Large compartment with battery capacity 400Ah, drive speed 10KM/H
Battery 240Ah/400Ah; Drive speed 9.5-10km/h
Option with EPS drive wheel size is 250x80mm

Parameters:

Model 　 CBD25R-II
Load capacity Q(kg) 2500
Load centre distance c(mm) 600
Load idetance,centre of drive axle to fork x(mm) 815/865/935
Fork height,lowered h13(mm) 82
Tyre size, front mm Φ250×70
Tyre size, rear mm Φ82×126(98)
Additional wheels(dimensions) mm Φ127×57
Wheels, number front rear(x=driven wheels) 　 1X+2/2(4)
Max.lift height h3(mm) 202
Height of tilier in drive position min./max h14(mm) 1150/1430
Overall length l1(mm) 1710/1760/1830
Length to face of forks l1(mm) 610
Overall width b1(mm) 775
Fork dimensions s/e/l(mm) 53×180×1100(1150/1220)
Width overall forks b5(mm) 520/550/650/685
Aisle width for pallets 1000×1200 crossways Ast(mm) 1910/1960/2030
Aisle width for pallets 800×1200 crossways Ast(mm) 2010/2010/2030
Turning radius Wa(mm) 1550/1600/1670
Travel speed,laden/unladen Km/h 7/7.1
Battery voltagem,nominal capacity K5 V/Ah 24/240
Battery weight kg 240
Battery dimensions l/w/h mm 750×170×570
Service weight(with battery) kg 750
