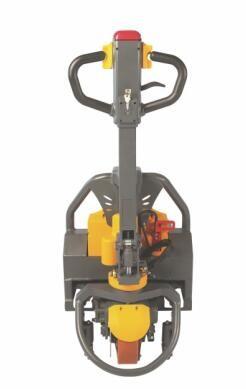

High Efficiency Walkie Electric Pallet Truck , 1.5 Ton Capapcity Automatic Pallet Jack Lithium battery compact 1500Kg
High Efficiency Walkie Electric Pallet Truck , 1.5 Ton Capapcity Automatic Pallet Jack Lithium battery compact 1500Kg
High Efficiency Walkie Electric Pallet Truck , 1.5 Ton Capapcity Automatic Pallet Jack Lithium battery compact 1500Kg
High Efficiency Walkie Electric Pallet Truck , 1.5 Ton Capapcity Automatic Pallet Jack Lithium battery compact 1500Kg
High Efficiency Walkie Electric Pallet Truck , 1.5 Ton Capapcity Automatic Pallet Jack Lithium battery compact 1500Kg
High Efficiency Walkie Electric Pallet Truck , 1.5 Ton Capapcity Automatic Pallet Jack Lithium battery compact 1500Kg
Specifications
Brand Name :
JAC
Model Number :
CBD15W-Li
Certification :
CE,ISO9001,ISO14001,OHSAS18001
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000UNITS/MONTH
Delivery Time :
25 days
Load Capacity :
1500KG
Warranty :
One Year
Power :
Electricity With Lithium Battery
Color :
Red or Yellow
Charge Times :
3000
Motor :
AC
Description

Electric Walkie Pallet Truck With Load Capacity From 1.5 Ton , Short Distance Warehouse Forklift , Lithuim Battery

Advantages:
• 48V large capacity maintenance-free lithium battery

• long working time around 6 hours, only need 3 hours to charge.

• Brushless motor, maintenance-free, high efficiency, cost saving

• Small and beautiful, flexible steering, which can successfully enter the narrow space, such as elevators, small super market and narrow aisle
• very easy to exchange battery, 10 seconds replacement of the battery(two groups exchanged battery can be used for 24 hours of continuous work).

• Stepless speed, smooth speed changing.


• Multi-function Control Handle. Incorporates butterfly-style thumb controls, emergency reverse button, horn button and key switch which is easy to use

• Compact Vehicle Design, Rugged and high-performing yet light weight body provides exceptional maneuverability in tight areas.
• Less Wiring, Easy Service. Mechanical and electronic components are easy to change and service.
• Brushless Motor

• Plug-in Battery Design makes it easier to remove and change, no need additional tools or devices.
• Integrated Rocker Arm. The rocker arm is casted in single piece, intensifying the strength and structure.
• Stepless speed control provides better and smoother speed changing. Brushless motor is easy for maintenance.
• Ergonomic Spring-loaded steering handle with comfort grip for reduced operator fatigue.
• Long Tiller with Large Hand Grip for easy and comfortable hold, strain-free operation.

Range of Application:
• Indoor use, light duty work

• Chemical handing and processing facilities
• Warehouses freight handling

• Frozen food storage
• Retail outlets

Parameters:

Model 　 CBD15W
Load capacity Q(kg) 1500
Load centre distance c(mm) 600
Fork height, lowered h13(mm) 80
Tyre size, front mm Φ250
Tyre size, rear(single) mm Φ80
Wheels, number front rear(x = driven wheels) 　 1x-2/4
Max. lift height h3(mm) 110
Height of tiller in drive position min./ max. h14(mm) 635/1200
Overall length l1(mm) 1651/1721
Length to face of forks l2(mm) 502
Overall width b1(mm) 550/685
Fork dimensions s/e/l(mm) 45/160/1150(1220)
Width overall forks b5(mm) 550/685
Aisle width for pallets 1000×1200 crossways Ast(mm) 1850/1920
Aisle width for pallets 800×1200 lengthways Ast(mm) 1900/1920
Turning radius Wa(mm) 1452/1522
Travel speed, laden/ unladen km/h 4/4.5
Battery voltage,nominal capacity K5 V/Ah 48/20
Battery dimensions l/w/h mm 340x130x307
Battery weight kg 10
Service weight (with battery) kg 145


High Efficiency Walkie Electric Pallet Truck , 1.5 Ton Capapcity Automatic Pallet Jack Lithium battery compact 1500Kg High Efficiency Walkie Electric Pallet Truck , 1.5 Ton Capapcity Automatic Pallet Jack Lithium battery compact 1500Kg
