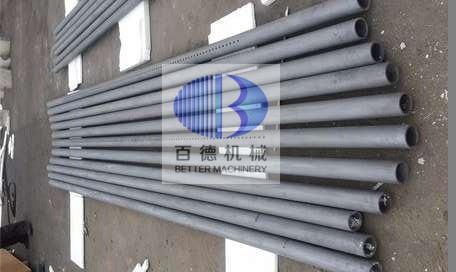

Silicon Carbide Pipe / SISIC Roller Good Wear Resistance For Sanitary Ceramic
Silicon Carbide Pipe / SISIC Roller Good Wear Resistance For Sanitary Ceramic
Silicon Carbide Pipe / SISIC Roller Good Wear Resistance For Sanitary Ceramic
Silicon Carbide Pipe / SISIC Roller Good Wear Resistance For Sanitary Ceramic
Silicon Carbide Pipe / SISIC Roller Good Wear Resistance For Sanitary Ceramic
Silicon Carbide Pipe / SISIC Roller Good Wear Resistance For Sanitary Ceramic
Specifications
Brand Name :
BD
Model Number :
55x43x1500-2800
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
USD+30-60+PCS
Supply Ability :
5000PCS/MONTH
Delivery Time :
20days
Packaging Details :
standard woodern case
Material :
Reaction Bonded Silicon Carbide
Max temperature of application :
1380°
Density :
>3.02g/cm3
Length :
1500-2800mm
Thermal Conductivity :
45(1200℃) w/m.k
Coefficient of Thermal Expansion :
4.5
Moh's hardness :
9.15
Acid Alkaline Proof :
excellent
Description

reaction bonded silicon carbide sisic rollers used in sanitary ceramic

SISIC(RBSIC) Rollers is mainly used for daily porcelain, sanitary porcelain, building ceramics and magnetic materials, such as roller kiln, high temperature burning with ideal kiln, with a long service life. It has high temperature strength, thermal shock resistance, high temperature creep resistance, strong resistance, good wear resistance, etc.

Silicon Carbide Pipe / SISIC Roller Good Wear Resistance For Sanitary Ceramic

Bearing Capacity SISIC(RBSIC) Rollers
Sectional Dimension(mm) Thickness(mm) Concentrated Loading (kg.m/L) Uniformly Distributed Loading (kg.m/L)
Size of Section
30 5 43 86
35 5 63 128
38 5 77 154
40 6 97 194
45 6 130 260
50 6 167 334
60 7 283 566
70 7 405 810

The Bending Strength of Beams is 250MP safety coefficient is 5. Concentrated Loading=the Value in The Table x1/L.

Uniformly Distribute Loading= The Value in the Table Accordingly x 1/L.

The temperature is 1380℃
