SISIC silicone carbide beam 6mm thickness production of daily-use ceramics
SISIC silicone carbide beam 6mm thickness production of daily-use ceramics
SISIC silicone carbide beam 6mm thickness production of daily-use ceramics
SISIC silicone carbide beam 6mm thickness production of daily-use ceramics
SISIC silicone carbide beam 6mm thickness production of daily-use ceramics
SISIC silicone carbide beam 6mm thickness production of daily-use ceramics
Specifications
Brand Name :
BD
Model Number :
Customer requirement
Certification :
ISO9001
Place of Origin :
Weifang,China
MOQ :
50PC
Price :
USD10-100/pc
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pc/Month
Delivery Time :
35-50days
Packaging Details :
Wooden case of plywood
Material :
Reaction Boned Silicon Carbide(SISIC/RBSIC)
Application :
Structure Ceramic
Shape :
Customized
Raw material :
Imported from Germany
Size :
Size Customized
Working temperature :
1380℃
Description

SISIC silicone carbide beam 6mm thickness production of daily-use ceramics

1. HCR brand customized silicone carbide beam 6mm 7mm thickness

SISIC Beam Silicon Carbide Square Tubesmainly made by SiSiC (RBSiC). Max working temperature 1380C. Our beams are widely used for the loading structure system of tunnel kiln, shuttle kiln and other kilns.

2. Features of sic beam kiln furniture

1. Excellent high-temperature bending strength and oxidation resistance

2. Long service life in high temperature without breaking, bending and deformation

3. Strong wear resistance

3. Application

1. Used in the production of Daily-use ceramics, sanitary ceramics, building ceramics, glass and magnetic materials.

2. The service life is more than 10 times that of aluminum oxide ceramic rollers.

SISIC silicone carbide beam 6mm thickness production of daily-use ceramics

SISIC silicone carbide beam 6mm thickness production of daily-use ceramics

4. Index of sic beam kiln furniture

Item Unit Data
Operating Temperature ℃ 1380
Density g/cm³ ≥3.02
Porosity % < 0.1
Bending Strength Mpa 250(20℃)
Mpa 280 (1200℃)
Elastic Modulus Gpa 330(20℃)
Gpa 300 (1200℃)
Thermal Conductivity W/m.k 45 (1200℃)
Thermal Expansion Coefficient K-1×10-6 4.5
Mohs Hardness 13
Alkalinity and Acidity Excellent

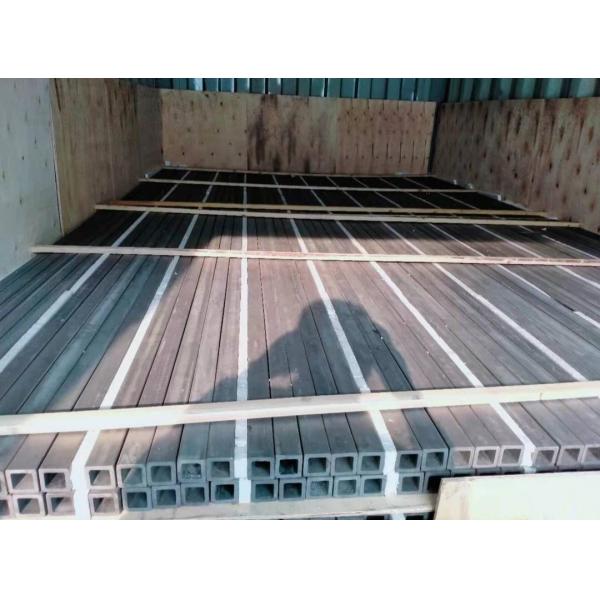

5. Packaging detail of Silicon Carbide Square

1.International standard seaworthy exportable packing.
2.Wooden pallet.
3.Wooden / bamboo case (box)..
4.Further packing information will be based on customer's requirements.
