Automatic corrugated paper cardboard lamination machine laminator
Automatic corrugated paper cardboard lamination machine laminator
Specifications
Brand Name :
REAL STAR/RS-MACHINERY
Model Number :
FMZ-1300/FMZ-1480/FMZ-1650
Certification :
ISO9001 CE
Place of Origin :
ZHEJIANG
MOQ :
1
Price :
20000
Payment Terms :
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :
20 SETS
Packaging Details :
Wooden box with plastic film
corrugated paper :
Laminating machine
Lamination :
Corrugated paper
Description
Automatic corrugated paper cardboard lamination machine laminator
Automatic corrugated paper cardboard lamination machine laminator
Automatic corrugated paper cardboard lamination machine laminator
This machine use bottom sheet automatic sent by suction device, and top sheet feeding manually. This humanized design makes paper feeding easier and more efficient. It is suitable for color top sheet and corrugated paper laminating, color top sheet and grey cardboard laminating. The top paper can pile up the height of 1m once time ,it makes delivery more easier and efficient
Characteristics:
1,The top paper can pile up the height of 1m once time ,it makes delivery more easier and efficient
2, Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking
3,Entire new concept,front gauge registration, position high accuracy, bottom sheet never exceedes the top sheet.
4,Machine uses touch-screen / PLC control system, the circuit system is stable, and can automatically display the failure alarm
5,The automatic replenishment system of glue can be added automatically during glue losses, and recycling with the glue to avoid loss of waste;
6, The scientific design of the metering roller speed to ensure the glue evently on the same time, to avoid rejection of glue at high speed.
7, Using the rubber roller cleaning to make cleaning thoroughly, and so that the back of the corrugated cardboard never gets glue, and eliminating the trouble of frequent replacement of blade.
8, Floating removable press, to ensure that laminated paper will not be crushed, and also keep the cardboard smooth and straight; unilateral adjustment by way of adjustment worm roll lamination pressure for quick
9,Control of water tank cleaning cycle using an independent method, clean, hard rubber product;
10,Suitable for color top sheet 175-500g and A/B/C/D/E/F corrugated paper laminating;
Color top sheet 175-500g and grey cardboard paper laminating

Special front location with high accuracy.

Surface paper feeding adopts overlappping feeding style which makes paper conveying more stable.

With the advance PLC tracking technology, according the size of paper automatically adjust the relevant

parameters, which makes the machine always operate at the best state.

Bottom paper feeding adopts rotary telesopic frame, which more adapts to warped corrugated board.

The feeder with pre-stacking device, so as to reduce the stopping time of machine and improve productivity

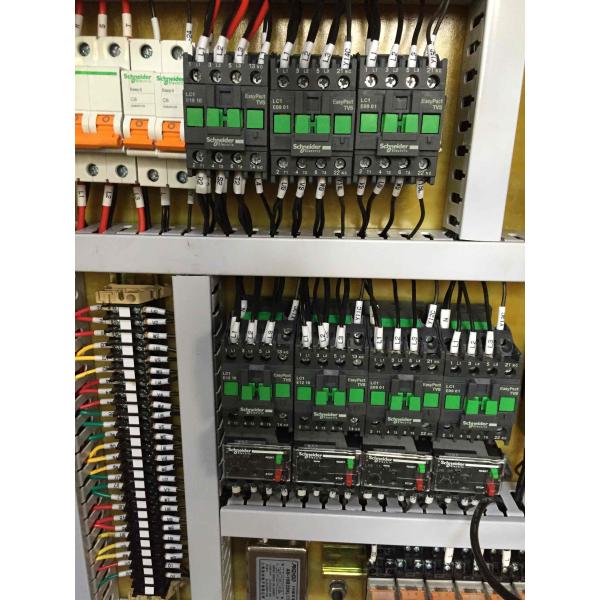

SIEMENS brand PLC control system, simplify electric equipment’s structure for more stable and reliable

controlling.

With frequency conversion speed adjusting system, realize no-stop stepless variable-speed regulate.

Automatic operation state displaying, automatic trouble alarming, and stopping.

Automatic empty and double paper examining and alarming.

2. Main Technical Specification:

Model FMZ-1260 FMZ-1450 FMZ-1700
Max. sheet size 1210x1300mm 1400x1300mm 1650x1500mm
Min. sheet size 400x400mm 400x400mm 400x400mm
Precision ±1.5mm ±1.5mm ±1.5mm
Machine speed 2000~6000pcs/hour 2000~6000pcs/hour 2000~5000pcs/hour
Surface paper thickness 250~450gsm 250~450gsm 250~450gsm
Bottom paper type A.B.C.E≤ 7mm A.B.C.E≤ 7mm A.B.C.E≤ 7mm
Total power 15kw 15kw 18kw
Overall dimension 14500x2200x2600mm 14500x2500x2600mm 14500x2700x2600mm
