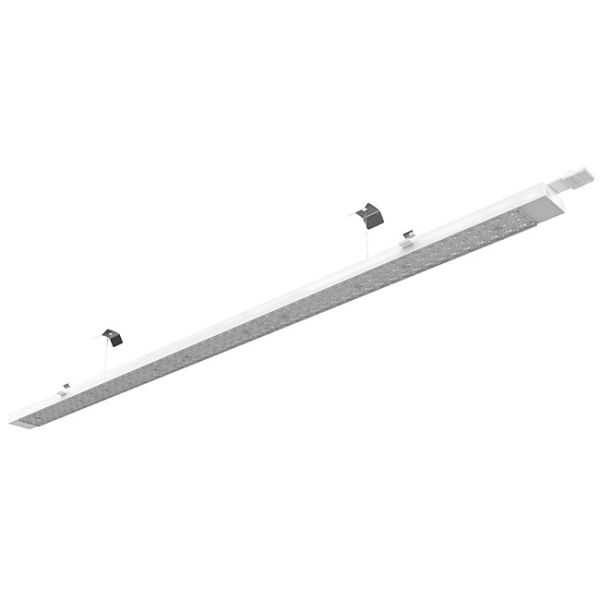

T8 T5 LED Retrofit Module Trilux RIDI Siteco Zumtobel
T8 T5 LED Retrofit Module Trilux RIDI Siteco Zumtobel
T8 T5 LED Retrofit Module Trilux RIDI Siteco Zumtobel
T8 T5 LED Retrofit Module Trilux RIDI Siteco Zumtobel
Specifications
Model Number :
XXX5S-68-T1
Certification :
ENEC, CE, RoHS, CB
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C, Paypal
Supply Ability :
100,000 Pieces per Month
Delivery Time :
3-5 working days for sample, 7-15 working days for mass production
Packaging Details :
8pcs per carton(159*29*22cm)
Input Voltage :
220-240V AC/DC
LED :
SMD2835
Input Frequency :
50 or 60 HZ
Lifetime :
50,000(L80B10)
Power Factor :
>0.95
Beam Angle :
30°/60°/90°/25°/15°/120°
Switching Cycles :
100,000 times
CRI :
Ra>80 or Ra>90
Protection Class :
Safety class I
UGR :
<23
Driver :
Tridonic, Osram, , VS
SDCM :
<5
Luminous Efficacy :
160lm/w
Flicker Free :
Yes
Emergency :
4W 3H
Sensor :
Motion
Dimmable :
DALI, 0-10V
Material :
Aluminum+PMMA
Warranty :
5 Years
Description

140-150LM/W T8 T5 Retrofit Light Trilux RIDI Siteco Zumtobel

  • Perfect to replace with the same length
  • Mechanical fixed with pull-push
  • all led modules Include the male connector
  • Easy to install with 42s

​Datasheet:

Item Model NO. Watt Lumen Efficacy Function EEC
1
XXX5S-60-S1
60W-50W-42W-32W
by Switch
 9,000lm 160LM/W On/off A++
2
XXX5S-60-T1
60W-55W-50W-45W-42W
by Resistor
 9,000lm 160LM/W On/off A++
3
XXX5S-68-P1
68W
 10,500lm 160LM/W
On/off
 A++
4
XXX5S-68-T4
16W to 68W
by resistor
 10,500lm 160LM/W
DALI
 A++

T8 T5 LED Retrofit Module Trilux RIDI Siteco Zumtobel

T8 T5 LED Retrofit Module Trilux RIDI Siteco Zumtobel


FAQ:
1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

2. What about the lead time?
A:Sample needs 5 days, mass production time needs 4 weeks.

3. LOGO

Answer: We could put your LOGO and Company info on the sticker for both lamp and box, and laser printing and silk printing on the lamp and driver box is also acceptable when then order reaches certain quantity.

track light housing white rail lamp 9 w led spot rail led track light 30w 4 wire led spotlight rail store light museum track

4.How to deal with the faulty?

Answer: Our products are produced in the strict quality control system and the defective rate will be less than 0.2%.If there is quality issue caused during warranty period, we will send necessary replacements or new item to you for free in advance.

bright led shop lighting track rail led led linear light track led light for stores led tracklight accessories led pedant light

5. What is your product's warranty?

Answer: We usually provide 5 years warranty for our products, 3 years warranty products are also optional. We company has official warranty document.

wires rail track 30w led rail led track light black 3watt three phase track lighting cob led tracklight track led led lights shop

6.How do you ship the goods and how long does it take to arrive?

Answer: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-7 working days to arrive. Airline and sea shipping also optional.



RECOLUX welcome your inquiry. We will give your best service and best quality goods.
Any questions or doubt. Please feel free to contact us. Welcome to China! Welcome to visit our factory and showroom!
More question pls contact us directly.

For more information, welcome to visit our website www.recolux.com.
