ClickFast Universal LED Retrofit Module For T5 T8 Lichtbandsystem
ClickFast Universal LED Retrofit Module For T5 T8 Lichtbandsystem
Specifications
Model Number :
RE-A025
Certification :
CE, ROHS
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20,000sets per month
Delivery Time :
2-4 working days for sample, <500sets 15-20working days, >500sets 20-30working days
Packaging Details :
LED module: 8pcs/carton, carton size 149x30x22cm 17kg,
Power :
16-100W
Volatge :
AC220-240V
Application :
Industrial Lighting
EFF :
160lm/w
Driver :
Tridonic, Osram,
LED :
SANAN
Function :
1-10V, DALI, Emergency, Motion sensor
Warranty :
5 Years
lifespan :
50,000H &L80B10
Description

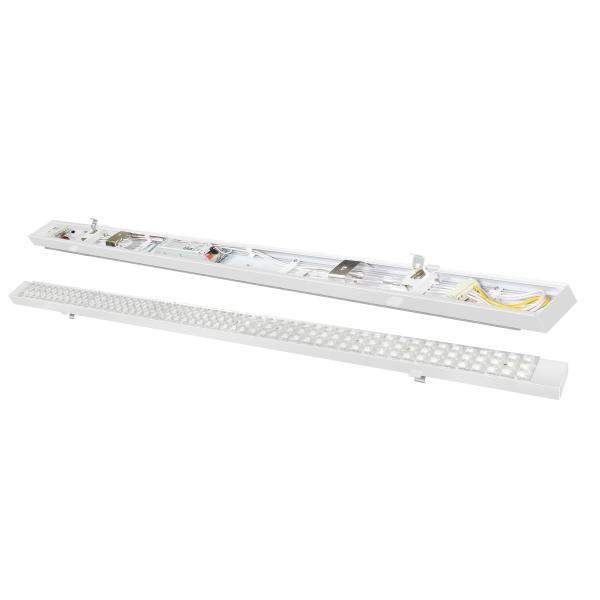

ClickFast universal retrofit module, the ideal replacement for 1 and 2-lamp T5 and T8 lichtbandsystem TRILUX

Best choice for updating and compatible with the existing T8 & T5 trunking systems from
Trilux, Siteco, Ridi, Regiolux, , Ludwig, Zumtobel etc

The ClickFast is the perfect replacement for conventional T8 fluorescent tubes, T5 retrofits and LED tubes.
The integrated new cabling and electronics save you at least as much energy as you would with a standard new installation. The light band assembly with the retrofit LED light source is child's play with maximum time savings and lower investment costs.

ClickFast Universal LED Retrofit Module For T5 T8 Lichtbandsystem

ClickFast Universal LED Retrofit Module For T5 T8 Lichtbandsystem

Advantages

ClickFast Universal LED Retrofit Module For T5 T8 Lichtbandsystem

ClickFast Universal LED Retrofit Module For T5 T8 Lichtbandsystem

ClickFast Universal LED Retrofit Module For T5 T8 Lichtbandsystem

Datasheet

ClickFast Universal LED Retrofit Module For T5 T8 Lichtbandsystem

Type Power(w) Lumen(lm) EFF(lm/w) CCT(k) Driver Voltage(V) Function Dimension(mm)
A025S3-60XXXX-S1-00
60W adjust 50W 42W 32W by switch
Max 9,000

 130-160 3000/4000/5000/6000 Osram AC 220-240V
Non-Dimmable
 1438 x 66 x 27
A025S3-60XXXX-T1-00
60W adjust 55W 45W 42W by resistor
 Max 9,000 130-160 3000/4000/5000/6000 Tridonic AC 220-240V Non-Dimmable 1438 x 66 x 27
A025P3-68XXXX-T1-00 16W to 68W by resistor Max 12,000 140-180 3000/4000/5000/6000 Tridonic AC 220-240V Non-Dimmable 1438 x 66 x 27
A025S3-72XXXX-B3-00
72W adjust 68W 64W 60W by switch
 Max 9,600 120-140 3000/4000/5000/6000 BOKE AC 220-240V 1-10V 1438 x 66 x 27
A025S3-68XXXX-T4-00 16W to 68W by resistor
Max 10,200
 130-160 3000/4000/5000/6000 Tridonic AC 220-240V DALI 1438 x 66 x 27
