RoHS Recessed Linear Light 3-15m detective motion sensor 1500mm
RoHS Recessed Linear Light 3-15m detective motion sensor 1500mm
RoHS Recessed Linear Light 3-15m detective motion sensor 1500mm
RoHS Recessed Linear Light 3-15m detective motion sensor 1500mm
Specifications
Model Number :
RSL5S5-72-B7
Certification :
ENEC, CE, RoHS, CB
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C, Paypal
Supply Ability :
20,000 Pieces per Month
Delivery Time :
3-5 working days for sample, 7-15 working days for mass production
Packaging Details :
8pcs per carton(159*29*22cm)
Input Voltage :
220-240V AC/DC
LED :
SMD2835
Input Frequency :
50 or 60 HZ
Lifetime :
50,000(L80B10)
Power Factor :
>0.95
Beam Angle :
30°/60°/90°/25°/15°/120°
Switching Cycles :
100,000 times
CRI :
Ra>80 or Ra>90
Protection Class :
Safety class I
UGR :
<23
Driver :
BOKE
SDCM :
<5
Luminous Efficacy :
160lm/w
Flicker Free :
Yes
Emergency :
4W 3H
Sensor :
Motion
Dimmable :
0-10V
Material :
Aluminum+PMMA
Warranty :
5 Years
Description

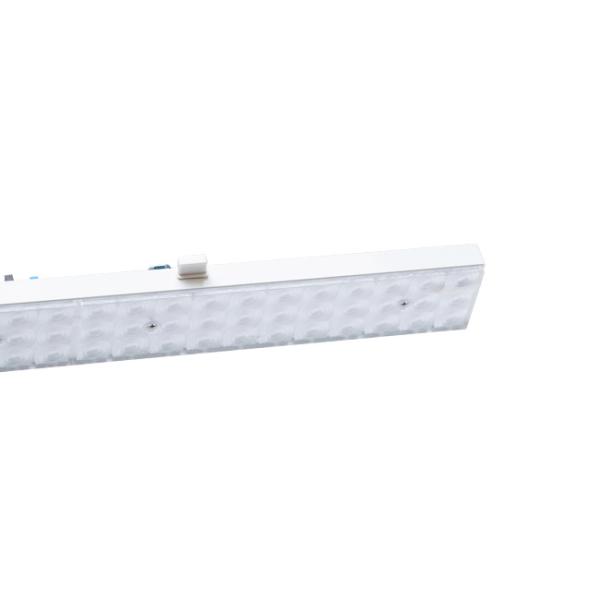

3-15m detective motion sensor 1500mm led linear lighting

  • A variety of suspension brackets can be clicked into place along the trunking groove.

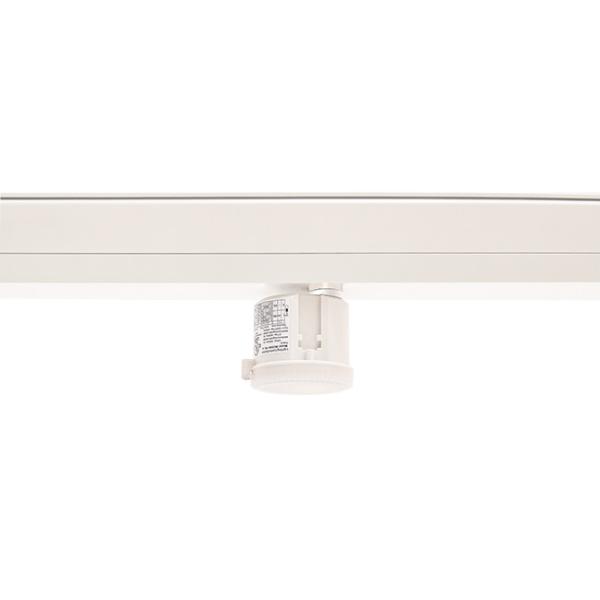

  • 0-10V dimming function with dimmable motion sensor, detective range from 3m to 15m height.

​Datasheet for LED module:

Item Model NO. Watt Lumen Efficacy Function EEC L*W*H(mm)
1 RSL5S-72-B7 72W-68W-64W-60W-56W-54W-52W-50W-48W-45W 10,500lm 160LM/W 0-10V A++ 1438*65*27


Maximum Loading:

RSL5S-72-B7
B10 15
B16 25
C10 27
C16 42

​Datasheet for trunkings:

Item Model NO, Wires(mm²) Dimensions(mm) Weight(KG)
1 TKA5-07W-00
7 x2.5 mm²
1438x 65 x 65
 1.65
2 TKA5-11W-00
11 x2.5 mm²
1438x 65 x 65
 1.95
3 TKA9-07W-00
7 x2.5 mm²
 2876x 65 x 65 2.98
4 TKA9-11W-00
11 x2.5 mm²
 2876x 65 x 65 3.25

Accessories:

RoHS Recessed Linear Light 3-15m detective motion sensor 1500mm

FAQ:

Q1. May I talk directly with your sales executive?
A: You’re welcome to talk with our sales executive by phone or email.


Q2. Do you accept small orders?
A: Yes, we have no MOQ limit.


Q3. Can I have a sample for test?
A: Yes, welcome to try our sample.


For more information, welcome to visit our website www.recolux.com.
