Specifications
Brand Name :
RECOLUX
Model Number :
A025S-60-S1-40
Certification :
ENEC, CE, RoHS, CB
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C, Paypal
Supply Ability :
100,000 Pieces per Month
Delivery Time :
3-5 working days for sample, 7-15 working days for mass production
Packaging Details :
8pcs per carton(159*29*22cm)
Input Voltage :
220-240V AC/DC
LED :
SMD2835
Input Frequency :
50 or 60 HZ
Lifetime :
50,000(L80B10)
Power Factor :
>0.95
Beam Angle :
30°/60°/90°/25°/15°/120°
Switching Cycles :
100,000 times
CRI :
Ra>80 or Ra>90
Protection Class :
Safety class I
UGR :
<23
Driver :
Tridonic, Osram, , VS
SDCM :
<5
Luminous Efficacy :
160lm/w
Flicker Free :
Yes
Emergency :
4W 3H
Sensor :
Microwave
Dimmable :
DALI, 0-10V
Material :
Aluminum+PMMA
Warranty :
5 Years
Housing :
White
Description

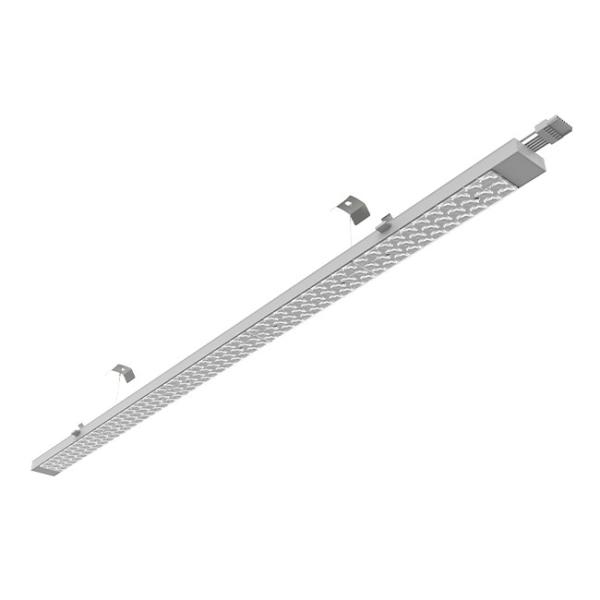

L80 / B10 50,000h IP40 Impact DALI-controllable CE, RoHS universally suitable T8 T5 trunking led module

  • Quick and cost-effective modernization of existing trunking systems

  • Universally applicable in a variety of carrier systems

  • Existing carrier systems from most manufacturers can still be used
  • High quality light with low glare (UGR <25)
  • Time and cost saving LED lighting solution
  • Optical lens system made of PMMA with light distribution(30°/60°/90°/120°/DS25°/25°)
  • Wattage switchable from 32W to 60W or 20W to 68W
  • Up to 160lm/w and peace of mind with 5 years warranty
  • DALI dimmable and 0-10V dimmable / Emergency available
  • Work with the existing T8 & T5 trunking system from Trilux, Siteco, RIDI, Regiolux,, Ludwig, Zumtobel etc.

L80B10 Led Retrofit Light Kit For Fluorescent CE RoHS Suitable T8 T5 Trunking

​Datasheet:

Item Model NO. Watt Lumen Efficacy Function EEC L*W*H(mm)
1 A025S-60-S1-40 60W-50W-42W-32W 9,000lm 160LM/W On/off A++ 1528*65*54
2 A025S-60-V1-40 60W-50W-42W-32W 9,000lm 160LM/W On/off A++ 1528*65*54
3 A025S-68-PC-40 68W-60W-54W-48W-38W
32W-25W-20W		 10,500lm 160LM/W On/off A++ 1528*65*54
4 A025S-72-B3-40 72W-68W-64W-60W-56W-54W-52W-50W-48W-45W 10,500lm 160LM/W 0-10V A++ 1528*65*54
5 A025S-68-T4-40 Max 68W 10,500lm 160LM/W DALI A++ 1528*65*54


Maximum Loading Of Automatic Circuit Breakers:

A025S-60-S1-40 A025S-60-V1-40 A025S-68-PC-40 A025S-72-B3-40 A025S-68-T4-40
B10 12 13 15 15 13
B16 19 21 24 25 21
C10 20 22 25 27 21
C16 32 35 40 42 35

FAQ:

1. What material our factory use for led light?

Housing: usually use a high ability housing for fast heat disspation, 3D-dispation, Copper material

LED: always use top quality led

Driver: Tridonic priority, even not Tridonic driver, we choose qualified driver which is CE certificated.

For more information, welcome to visit our website www.recolux.com.
