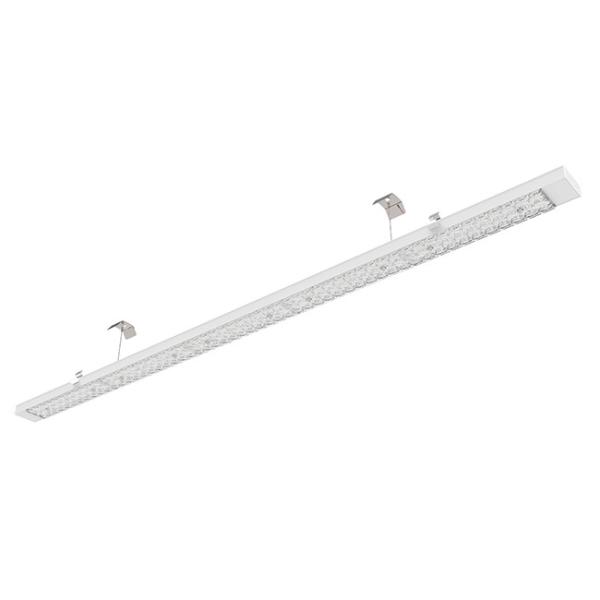

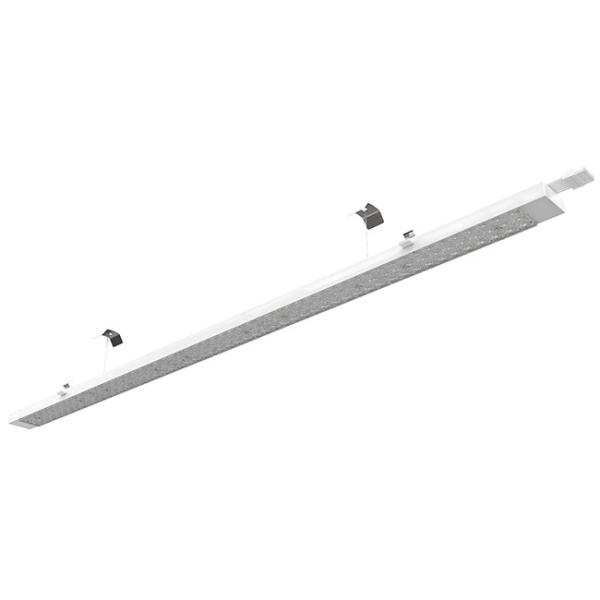

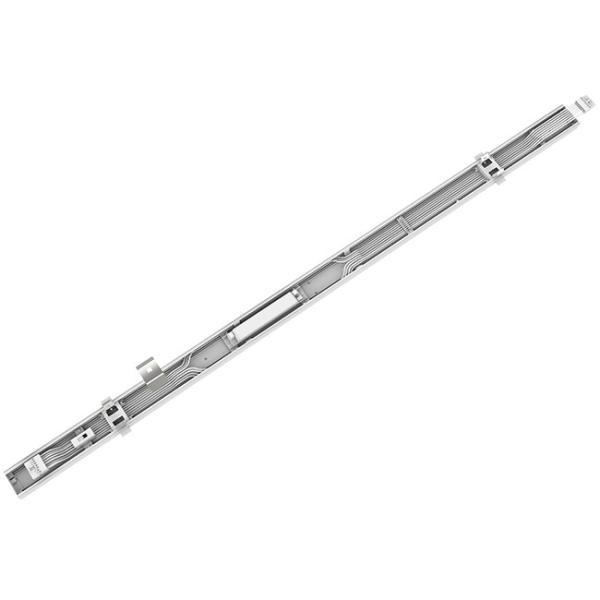

60w Light distribution LED Retrofit Module, Zumtobel Tecton LED T8 Retrofit
60w Light distribution LED Retrofit Module, Zumtobel Tecton LED T8 Retrofit
60w Light distribution LED Retrofit Module, Zumtobel Tecton LED T8 Retrofit
60w Light distribution LED Retrofit Module, Zumtobel Tecton LED T8 Retrofit
60w Light distribution LED Retrofit Module, Zumtobel Tecton LED T8 Retrofit
60w Light distribution LED Retrofit Module, Zumtobel Tecton LED T8 Retrofit
60w Light distribution LED Retrofit Module, Zumtobel Tecton LED T8 Retrofit
60w Light distribution LED Retrofit Module, Zumtobel Tecton LED T8 Retrofit
60w Light distribution LED Retrofit Module, Zumtobel Tecton LED T8 Retrofit
60w Light distribution LED Retrofit Module, Zumtobel Tecton LED T8 Retrofit
Specifications
Brand Name :
RECOLUX
Model Number :
A025S-60-S1-40
Certification :
ENEC, CE, RoHS, CB
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C, Paypal
Supply Ability :
100,000 Pieces per Month
Delivery Time :
3-5 working days for sample, 7-15 working days for mass production
Packaging Details :
8pcs per carton(159*29*22cm)
Input Voltage :
220-240V AC/DC
LED :
SMD2835
Input Frequency :
50 or 60 HZ
Lifetime :
50,000(L80B10)
Power Factor :
>0.95
Beam Angle :
30°/60°/90°/25°/15°/120°
Switching Cycles :
100,000 times
CRI :
Ra>80 or Ra>90
Protection Class :
Safety class I
UGR :
<23
Driver :
Tridonic, Osram, , VS
SDCM :
<5
Luminous Efficacy :
160lm/w
Flicker Free :
Yes
Emergency :
4W 3H
Sensor :
Microwave
Dimmable :
DALI, 0-10V
Material :
Aluminum+PMMA
Warranty :
5 Years
Housing :
White
Description

60w Light distribution LED Retrofit Module , Zumtobel Tecton LED T8 Retrofit

  • Power factor: >0,95
    CRI: >80Ra
    Driver: Included
    SMD: 2835
    Emergency: Optional
  • Voltage/Current: 220-240V
    Dimensions: 1528mm
    Working Temp: -20 + 45°C
    Lifetime: 50.000h L70B10
    Warranty: 5 Years
  • Work with the existing T8 & T5 trunking system from Trilux, Siteco, RIDI, Regiolux,, Ludwig, Zumtobel etc.

​Datasheet:

Item Model NO. Watt Lumen Efficacy Function EEC L*W*H(mm)
1 A025S-60-S1-40 60W-50W-42W-32W 9,000lm 160LM/W On/off A++ 1528*65*54
2 A025S-60-V1-40 60W-50W-42W-32W 9,000lm 160LM/W On/off A++ 1528*65*54
3 A025S-68-PC-40 68W-60W-54W-48W-38W
32W-25W-20W		 10,500lm 160LM/W On/off A++ 1528*65*54
4 A025S-72-B3-40 72W-68W-64W-60W-56W-54W-52W-50W-48W-45W 10,500lm 160LM/W 0-10V A++ 1528*65*54
5 A025S-68-T4-40 Max 68W 10,500lm 160LM/W DALI A++ 1528*65*54


Maximum Loading Of Automatic Circuit Breakers:

A025S-60-S1-40 A025S-60-V1-40 A025S-68-PC-40 A025S-72-B3-40 A025S-68-T4-40
B10 12 13 15 15 13
B16 19 21 24 25 21
C10 20 22 25 27 21
C16 32 35 40 42 35

60w Light distribution LED Retrofit Module, Zumtobel Tecton LED T8 Retrofit

FAQ:

Q1. Do you have any MOQ limit for led light order?
A: We have no MOQ limit.
Q2. What about the lead time?
A: Sample order: 5~7 working days Bulk order: 10~20 working days after deposit ~/ full payment, it usually depends on the quantity.
Q3. How do you ship the goods and how long does it take to arrive?
A: Small quatity is usually shipped by UPS/Fedex/TNT/DHL/Air. Sea shipping for bulk order are also available.
