CR123 ICR 16340 Rechargeable Battery 17335 3.7 V 700mah Li Ion Battery
CR123 ICR 16340 Rechargeable Battery 17335 3.7 V 700mah Li Ion Battery
CR123 ICR 16340 Rechargeable Battery 17335 3.7 V 700mah Li Ion Battery
CR123 ICR 16340 Rechargeable Battery 17335 3.7 V 700mah Li Ion Battery
CR123 ICR 16340 Rechargeable Battery 17335 3.7 V 700mah Li Ion Battery
CR123 ICR 16340 Rechargeable Battery 17335 3.7 V 700mah Li Ion Battery
Specifications
Model Number :
ICR16340
Certification :
UN38.3, MSDS, IEC62133, RoHS
Place of Origin :
China
MOQ :
5000pieces
Payment Terms :
T/T
Supply Ability :
100'000Pieces daily
Delivery Time :
within 15days
Packaging Details :
Bulk packing
Battery Type :
Lithium ion battery cell
Model :
ICR16340
Nominal Voltage :
3.7V
Nominal Capacity :
700mAh
Cycle life :
500times
Discharging rate :
1C
Anode Material :
Lithium cobaltate
Application :
toothbrush, flashlight, Portable fan
Lead time :
10days
Battery Warranty :
1year
Description

Rechargeable battery cell CR123 ICR16340 17335 3.7V 700mAh Li-Ion Battery For laser pen

ICR17335 3.7V 750mAh Cylindrical li-ion rechargeable battery
No, Item General Parameters
1 Nominal capacity 750mAh at 0.2C
2 Nominal voltage 3.70V
3 Charge ending voltage 4.2V
4 Discharge ending voltage 2.75V
5 Max charge current 750mA
6 Max discharge current 1500mA
7 Typical weight 15.7±0.5g
8 Operating temperature range charge 0℃~45℃
9 discharge -20℃~60℃
10 Internal resistance less or equal to 120mΩ (AC impedance, 1KHz
11 Cycles number more than 300 cycles The battery is charged by 0.5C, and then it is discharged by 0.5C. The rest time after discharge is 0.5~1h in each cycle, unit the discharge capacity of less than 60% C mAh .Then consider the cycle to terminate.
12 Shelf life 1 year
13 Storage temperature Less than 1 year: -20~25 ℃
less than 6 months:-20~35 ℃
less than one month:-20~45℃
14 Cell Dimension High:33.50±0.5mm
Diameter:17.0±0.5mm

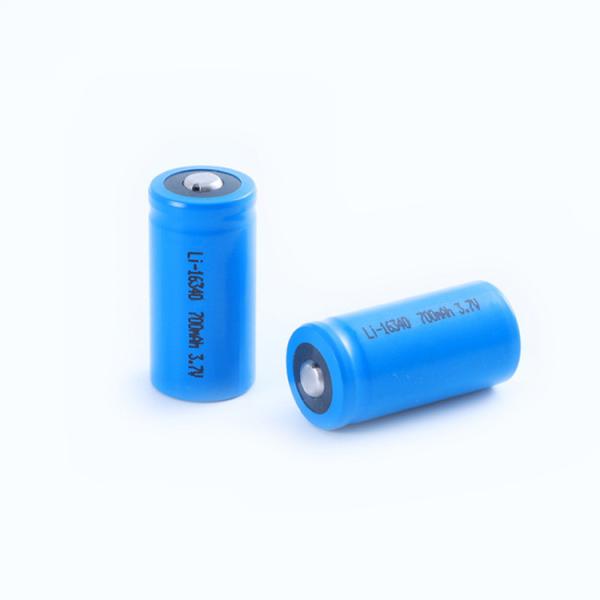

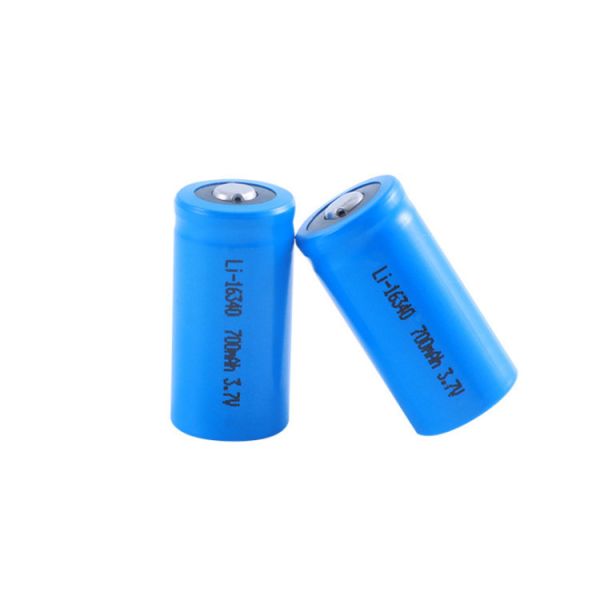

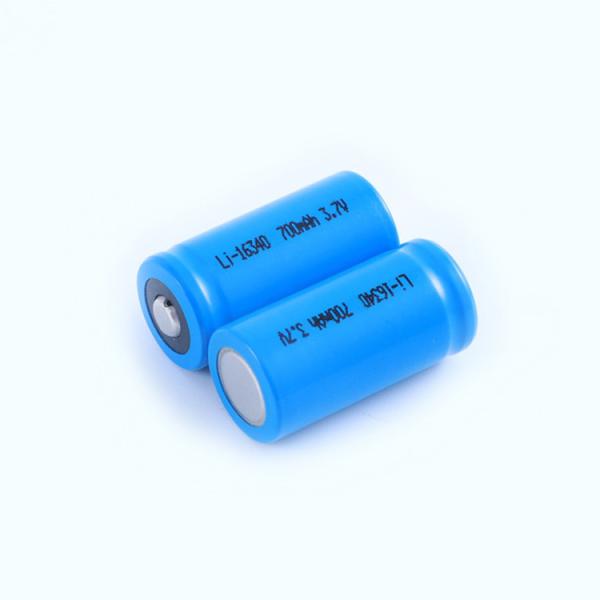

Detailed images for 16340 Lithium Rechargeable Batteries 700mAh 3.7V flashlight battery

CR123 ICR 16340 Rechargeable Battery 17335 3.7 V 700mah Li Ion Battery

Customized lithium rechargeable battery packs

CR123 ICR 16340 Rechargeable Battery 17335 3.7 V 700mah Li Ion Battery

Production process for rechargeable Lithium ion cylindrical Battery

CR123 ICR 16340 Rechargeable Battery 17335 3.7 V 700mah Li Ion Battery

Other lithium ion cylindrical battery cell on sale:

Lithium ion battery cells list
Model No. Nominal Voltage Typical Capacity Size Charge Rate Discharging Rate Weight(g)
ICR14500 3.7V 600mah 13.9×48.5±0.3 0.2-1C 0.2-2C 19.5
ICR14500 3.7V 750mah 13.9×48.5±0.3 0.2-1C 0.2-2C 20
ICR14500 3.7V 800mah 13.9×48.5±0.3 0.2-1C 0.2-2C 20.5
ICR18500 3.7V 1300mah 18.0×49.7±0.2 0.2-1C 0.2-2C 32
ICR18500J 3.7V 1400mah 18.0×49.7±0.2 0.2-1C 0.2-2C 31
ICR18500 3.7V 1600mah 18.0×49.7±0.2 0.2-1C 0.2-2C 32
ICR18650 3.7V 2200mah 18.0×65.2±0.2 0.2-1C 0.2-2C 40
ICR18650 3.7V 2600mah 18.0×65.2±0.2 0.2-1C 0.2-2C 45
ICR18650 3.7V 3000mah 18.0×65.2±0.2 0.2-1C 0.2-2C 48
ICR18650 3.7V 3400mah 18.0×65.2±0.2 0.2-1C 0.2-2C 50
ICR26650 3.7V 4500mah 26.3×65.0±0.5 0.2-1C 0.2-2C 80
ICR26650 3.7V 5000mah 26.3×65.0±0.5 0.2-1C 0.2-2C 85
ICR18650P 3.7V 2600mah 18.0×65.2±0.2 0.2-1C 5C 45

Why Choose us:

Technology

  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applie
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

CR123 ICR 16340 Rechargeable Battery 17335 3.7 V 700mah Li Ion Battery

Quality Control

CR123 ICR 16340 Rechargeable Battery 17335 3.7 V 700mah Li Ion Battery

Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

CR123 ICR 16340 Rechargeable Battery 17335 3.7 V 700mah Li Ion Battery

Factory Tour:

Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.

We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,

and customized battery pack since 2001.

CR123 ICR 16340 Rechargeable Battery 17335 3.7 V 700mah Li Ion Battery
