Cylindrical Lithium Iron Phosphate 26650 3.2V 3300mAh LiFePO4 Battery Cell
Cylindrical Lithium Iron Phosphate 26650 3.2V 3300mAh LiFePO4 Battery Cell
Cylindrical Lithium Iron Phosphate 26650 3.2V 3300mAh LiFePO4 Battery Cell
Cylindrical Lithium Iron Phosphate 26650 3.2V 3300mAh LiFePO4 Battery Cell
Specifications
Model Number :
IFR26650
Certification :
UN38.3, MSDS, IEC62133, RoHS
Place of Origin :
China
MOQ :
500pieces
Payment Terms :
T/T
Supply Ability :
40'000Pieces daily
Delivery Time :
within 10days
Packaging Details :
Bulk packing
Battery Type :
Lithium Iron Phosphate battery
Voltage :
3.2V
Capacity :
3400mAh
Cycle life :
2000 times
Weight :
88g
Size :
26*65mm
Description

Lithium Iron Phosphate 26650 3.2V 3300mAh Cylindrical lifepo4 battery cell

Specification of 26650 lifepo4 battery cell
Size 26*65mm
Charge voltage 3.65V
Nominal voltage 3.2V
Nominal capacity 3400mAh
Cell Weight Approx:87g
Charge current Standard Charging::0.5C 1700mA
Rapid charge:1.0C 3400mA
Standard Charging method

0.5C CC(constant current)charge to 3.65V,

then CV(constant voltage 3.65V)charge till charge current decline to≤0.05C
Charging time Standard Charging:3.0hours(Ref.)
Rapid charge:2hours(Ref.)
Max.charge current 1C(3300mA)
Max.discharge current 2C(6600mA)
Discharge cut-off voltage 2.5V
Cycle Life >1000cycles
Operating temperature Charging:0℃~45℃
Discharging:-20℃~60℃
Storage temperature -10℃~ +60℃
Warranty 12 months

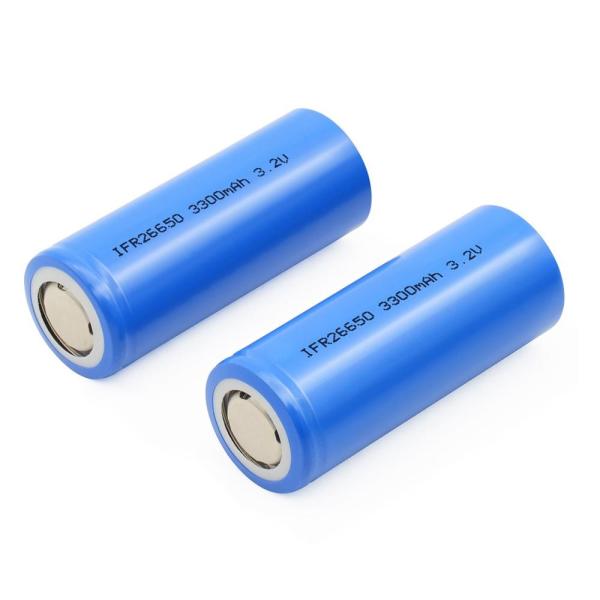

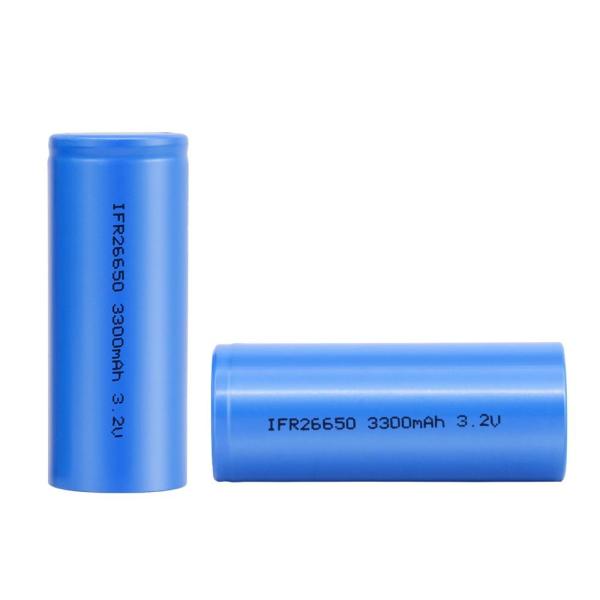

Detailed Images for: lifepo4 battery cell 32650 3.2V 3400mAh lithium Cylindrical battery

Cylindrical Lithium Iron Phosphate 26650 3.2V 3300mAh LiFePO4 Battery Cell

Cylindrical Lithium Iron Phosphate 26650 3.2V 3300mAh LiFePO4 Battery Cell

Other hot sale rechargeable lifepo4 battery cells:

Lifepo4 Cylindrical Battery cell List
Model No. Nominal Voltage Typical Capacity Size Charge Rate Discharge Rate Weight(g) Cycle life (80% DOD)
IFR10440 3.2V 200mAh 10.3*44.2 0.2-0.5C 0.2-3C 7 ≧2000
IFR14430 3.2V 400mAh 14.2*43 0.2-0.5C 0.2-3C 13 ≧2000
IFR14500 3.2V 600mAh 14.2*50.2 0.2-0.5C 0.2-3C 18 ≧2000
IFR16340 3.2V 400mAh 16.2*34.2 0.2-0.5C 0.2-3C 13 ≧2000
IFR18500 3.2V 1000mAh 18.1*50.2 0.2-0.5C 0.2-3C 34 ≧2000
IFR18650 3.2V 1500mAh 18.5*65.3 0.2-0.5C 0.2-3C 42 ≧2000
IFR18650 3.2V 1800mAh 18.5*65.3 0.2-0.5C 0.2-3C 62 ≧2000
IFR22650 3.2V 1800mAh 22.5*65.3 0.2-0.5C 0.2-3C 64 ≧2000
IFR26650 3.2V 3400mAh 26.5*65.3 0.2-0.5C 0.2-3C 85 ≧2000
IFR26650 3.2V 3600mAh 26.5*65.3 0.2-0.5C 0.2-3C 90 ≧2000
IFR26650 3.2V 3600mAh 26.5*65.3 0.2-0.5C 0.2-3C 90 ≧2000
IFR32700 3.2V 6000mAh 32.5*65.3 0.2-0.5C 0.2-3C 150 ≧2000

Why Choose us:

Technology

  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applie
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

Cylindrical Lithium Iron Phosphate 26650 3.2V 3300mAh LiFePO4 Battery Cell

Quality Control

Cylindrical Lithium Iron Phosphate 26650 3.2V 3300mAh LiFePO4 Battery Cell

Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

Cylindrical Lithium Iron Phosphate 26650 3.2V 3300mAh LiFePO4 Battery Cell

Factory Tour:

Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.

We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,

and customized battery pack since 2001.

Cylindrical Lithium Iron Phosphate 26650 3.2V 3300mAh LiFePO4 Battery Cell
