KC Approved 1200mAh 3.7v Lipo Battery Rechargeable 503070 1200mAh 3.7V Curved Li-Ion Polymer Battery
KC Approved 1200mAh 3.7v Lipo Battery Rechargeable 503070 1200mAh 3.7V Curved Li-Ion Polymer Battery
KC Approved 1200mAh 3.7v Lipo Battery Rechargeable 503070 1200mAh 3.7V Curved Li-Ion Polymer Battery
KC Approved 1200mAh 3.7v Lipo Battery Rechargeable 503070 1200mAh 3.7V Curved Li-Ion Polymer Battery
KC Approved 1200mAh 3.7v Lipo Battery Rechargeable 503070 1200mAh 3.7V Curved Li-Ion Polymer Battery
KC Approved 1200mAh 3.7v Lipo Battery Rechargeable 503070 1200mAh 3.7V Curved Li-Ion Polymer Battery
KC Approved 1200mAh 3.7v Lipo Battery Rechargeable 503070 1200mAh 3.7V Curved Li-Ion Polymer Battery
KC Approved 1200mAh 3.7v Lipo Battery Rechargeable 503070 1200mAh 3.7V Curved Li-Ion Polymer Battery
KC Approved 1200mAh 3.7v Lipo Battery Rechargeable 503070 1200mAh 3.7V Curved Li-Ion Polymer Battery
KC Approved 1200mAh 3.7v Lipo Battery Rechargeable 503070 1200mAh 3.7V Curved Li-Ion Polymer Battery
KC Approved 1200mAh 3.7v Lipo Battery Rechargeable 503070 1200mAh 3.7V Curved Li-Ion Polymer Battery
KC Approved 1200mAh 3.7v Lipo Battery Rechargeable 503070 1200mAh 3.7V Curved Li-Ion Polymer Battery
Specifications
Model Number :
LP503070
Certification :
KC,UN38.3, MSDS, IEC62133, RoHS
Place of Origin :
China
MOQ :
3000pieces
Payment Terms :
T/T
Supply Ability :
100'000Pieces daily
Delivery Time :
within 15days
Packaging Details :
Bulk packing
Battery Type :
Lithium polymer battery
Voltage :
3.7V
Capacity :
1200mAh
Cycle life :
500times
Size :
5*30*72mm
Weight :
22g
MOQ :
3000pcs
Warranty :
1 year
lead time :
15-20days
Description
Lithium Polymer Battery Pack 503070 Li Ion 3.7v Lipo Battery 1200mah
1,Mechanical Characteristics
Cell:
503070
PCM:
YES
NTC:
NO
Weight:
22g
Configuration:
1S1P
Demension
5*30*72mm
2,Electrical Specification
Capacity:
1200mAh
Nominal Voltage:
3.7V
Energy:
4.44Wh
Internal Impedance:
less than 180mΩ
Max. Charge Voltage:
4.2V
Discharge Cut Off:
2.75V
Max. Charge Current:
1200mA
Max. Discharge Current:
1200mA
Standard Charge Current:
600mA
Standard Discharge Current:
600mA
Charge Temp. Range:
Typically 0°C to 45°С
Discharge Temp. Range
-20°C to 60°С
Storage Temp. Range
1 year at -20℃ to +30℃
Cycle life:
100 cycles ≥92%
3 moths at -20℃ to +45℃
300 cycles ≥88%
1 month at -20℃ to +60℃
500 cycles ≥80%
3,Cell protection
Overcharge Detection :
4.28 ±25mV (1 to 1.6sec delay, release 4.2V ±50mV)
Overdischarge Detection:
2.5V ±50mV (115 to 175msec. delay, release 3.0V ±50mV)
Overcurrent Detection:
2.5A to 4.0A (9 to 15msec. delay)
Short protection:
Yes
Other hot-sale Li polymer battery pack models, with stocks can accept mini order:

Model Dimension With PCM Dimension Capacity
302025 3.0*20*25mm 3.2*21*27.5mm 3.7V 100mAh
302530 3.0*25*30mm 3.2*26*32.5mm 3.7V 180mAh
401824 4.0*18*24mm 4.2*19*26.5mm 3.7V 180mAh
402525 4.0*25*25mm 4.2*26*27.5mm 3.7V 200mAh
483450 4.8*34*50mm 5.0*35*52.5mm 3.7V 850mAh
502030 5.0*20*30mm 5.2*21*32.5mm 3.7V 240mAh
502525 5.0*25*25mm 5.2*26*27.5mm 3.7V 180mAh
503030 5.0*30*30mm 5.2*31*32.5mm 3.7V 430mAh
523450 5.2*34*50mm 5.4*35*52.5mm 3.7V 1000mAh
553444 5.5*34*44mm 5.7*35*46.5mm 3.7V 850mAh
553640 5.5*36*40mm 5.7*37*42.5mm 3.7V 850mAh
553759 5.5*37*59mm 5.7*38*61.5mm 3.7V 1400mAh
602030 6.0*20*30mm 6.2*21*32.5mm 3.7V 300mAh
602240 6.0*22*40mm 6.2*23*42.5mm 3.7V 500mAh
602535 6.0*25*35mm 6.2*26*37.5mm 3.7V 500mAh
602663 6.0*26*63mm 6.2*27*65.5mm 3.7V 1000mAh
603030 6.0*30*30mm 6.2*31*32.5mm 3.7V 520mAh
603040 6.0*30*40mm 6.2*31*42.5mm 3.7V 750mAh
603048 6.0*30*48mm 6.2*31*50.5mm 3.7V 900mAh
603450 6.0*34*50mm 6.2*35*52.5mm 3.7v 1050mAh
702040 7.0*21*40mm 7.2*22*42.5mm 3.7V 500mAh
753048 7.5*30*48mm 7.7*31*50.5mm 3.7V 1200mAh
803035 8.0*30*35mm 8.2*31*37.5mm 3.7V 800mAh

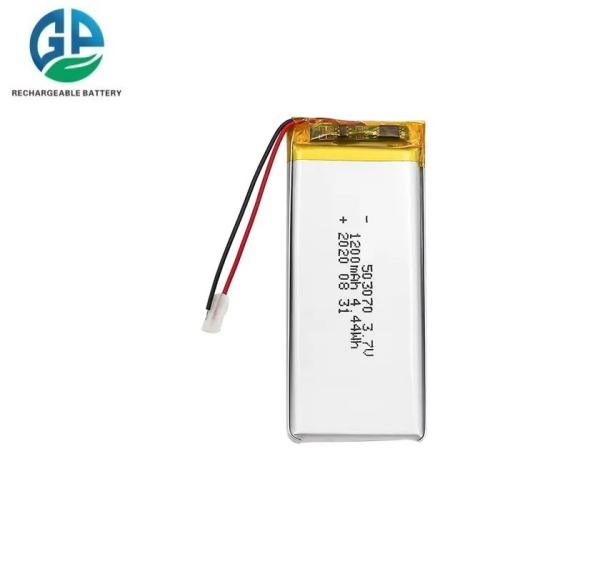

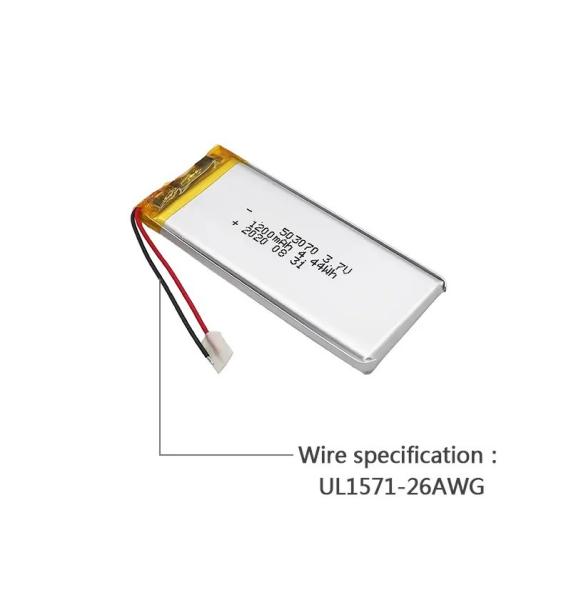

Detailed images:Li Polymer 503070 1200mah 3.7v lipo Rechargeable battery pack

KC Approved 1200mAh 3.7v Lipo Battery Rechargeable 503070 1200mAh 3.7V Curved Li-Ion Polymer Battery

Handling of lithium polymer battery cells

Soft Aluminum foil

  • Easily damaged by sharp edge parts such as pins and needles, Ni-tabs, comparing with metal-can-cased LIB.
  • Don’t strike li polymer battery with any sharp edge parts
  • Trim your nail or wear glove before taking lipo battery
  • Clean worktable to make sure no any sharp particle
  • Sealed edge may be damaged by heat above 100°C, bend or fold sealed edge.

Prohibition short circuit

  • Never make short pack circuit. It generates very high current which causes heating of the cells and may cause electrolyte leakage, gassing or explosion that are very dangerous.
  • The LIP tabs may be easily short-circuited by putting them on conductive surface. Such outer short circuit may lead to heat generation and damage of the cell.

Mechanical shock

  • LIP cells have less mechanical endurance than metal-can-cased LIB.
  • Falling, hitting, bending, etc. may cause degradation of LIP characteristics.

Why Choose us:

Technology

  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applie
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

KC Approved 1200mAh 3.7v Lipo Battery Rechargeable 503070 1200mAh 3.7V Curved Li-Ion Polymer Battery

Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

Factory Tour:

Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.

We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,

and customized battery pack since 2001.

KC Approved 1200mAh 3.7v Lipo Battery Rechargeable 503070 1200mAh 3.7V Curved Li-Ion Polymer Battery
