48 Volt 172 AH Rechargeable Lithium Ion Battery For Solar Energy Storage
48 Volt 172 AH Rechargeable Lithium Ion Battery For Solar Energy Storage
Specifications
Name :
Energy Storage Lithium Battery
Model :
48V/8.3KWH/6000W
L x W x H :
820mm x 300mm x520mm
Working temperature :
-20°C ~ 60°C
Working current :
125A
Applications :
120KG
Place of Origin :
Changsha, China
Brand Name :
HYZZ
Certification :
ISO9001, CE, CB, UN38.3
Packaging Details :
foam, wooden box / foam, carton, tray
Delivery Time :
22 days
Payment Terms :
L/C, T/T
Supply Ability :
10,000 PCS per month
Description

48 Volt 172 AH Rechargeable Lithium Ion Battery For Solar Energy Storage

Model: 48V/8.3KWH/6000W

Specifications L x W x H: 820mm x 300mm x520mm

Inverter integrated 48vdc-220vac-6kw, dual CPU intelligent control technology, mains mode / energy saving mode / battery mode can be set, charging current 40A (default) - C0-C6 can be set, battery type U0-U7 can be set, Pure sine wave AC output, LCD display device automatic protection and alarm prompt, continuous working current 125A, instantaneous maximum current 200A, weight 120KG

Applications: energy storage power supply, photovoltaic energy storage power supply, backup power supply, household off-grid energy storage power supply, energy storage

Features :

1. Gelled electrolyte made by mixing sulfuric acid with silica fume.
2. The electrolyte is gel like ,immobile and does not leak ,enabling uniform reaction of each part of the plate .
3. High rate discharge performance due to tight assembly technology
4. Strong heat dissipation and wide operating temperature range
5. Avoid acid mist being separated out , environment friendliness
6. Efficient venting system release excessive gas automatically

 Number HY00036
Version A0

HYLF/48V/8.3KWH-001

Battery pack specification

Date

2019-5-8
1．Basic characteristics

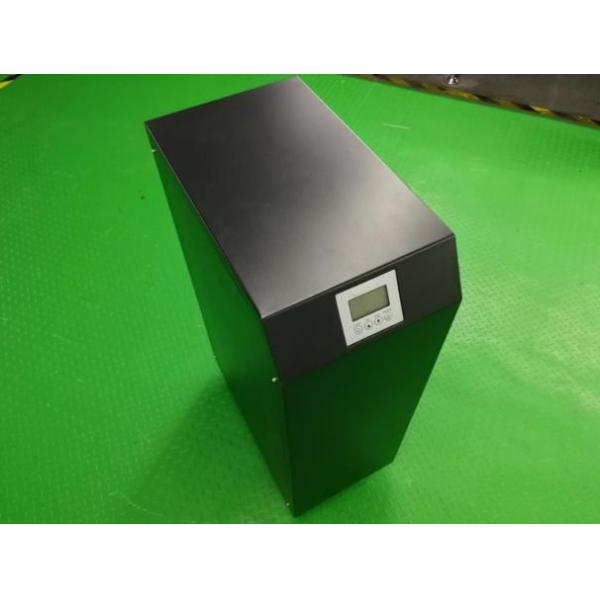

Product picture

48 Volt 172 AH Rechargeable Lithium Ion Battery For Solar Energy Storage

6000KWBuilt-in 6000KW inverter integrated machine

Product name

Lithium battery pack

product code

 HYLF/48V/8.3KWH-001
L x W x H 820mm x 300mm x520mm
Rated voltage 48V
Rated Capacity 172AH
Serialization 2P15SAluminum shell

Internal resistance

 ≤120mΩ
Discharge cutoff voltage 34.5V

Shell color

☑ Matt black

□ Bright gray

□ Fruit green + bright gray (two colors)

□ Stainless steel

Charging and discharging interface

☑ Wall terminal

□ Anderson

□ Air plug

□ Positive and negative lines

□ Terminal post

LEDThe power box has a universal wheel with a positioning pin, a handle, and an LED function display.

48vdc-220vac-3kw,CPUInverter integrated machine 48vdc-220vac-3kw, dual CPU intelligent control technology

30A-C0-C6,U0-U7,,Mains mode / energy saving mode / battery mode can be set, charging current 30A default - C0-C6 can be set, battery type U0-U7 can be set, pure sine wave AC output

Batteries:3.2v/86Ah
Charging protection voltage 54V

Max.charging voltage

54.75V

Max. charging current

30A

Max. sustained discharge current

125A

Peak current

 200±3A 2S

Rated discharge current

 75A
Charging method CC/CV

Cell discharge performance

SOC-OCVCell charging performance SOC-OCV relationship

weight

 120Kg

Operating temperature

Charging

 0～45℃

Discharge

 -20～45℃

60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months

-10～35℃

C1 Cycle life

1500 Times
price RMB:¥ 00.00 48 Volt 172 AH Rechargeable Lithium Ion Battery For Solar Energy Storage

Delivery period

25 Working day
