9Ah 12 Volt Lithium Battery Deep Cycle , Rechargeable Lithium Battery Pack
9Ah 12 Volt Lithium Battery Deep Cycle , Rechargeable Lithium Battery Pack
9Ah 12 Volt Lithium Battery Deep Cycle , Rechargeable Lithium Battery Pack
9Ah 12 Volt Lithium Battery Deep Cycle , Rechargeable Lithium Battery Pack
Specifications
Brand Name :
Topband
Model Number :
TB1209F-S110A
Certification :
ISO9001, ISO14001
Place of Origin :
China
MOQ :
50pcs
Supply Ability :
450Mwh/year
Delivery Time :
2~4weeks for samples; 4~6weeks for mass production
Packaging Details :
standard export carton
Price :
Negotiable
Payment Terms :
L/C, T/T
Material :
Nano LiFePO4
Type :
Prismatic
Impedance :
≤80mΩ
Cycle life :
2000cycles @100% DOD
Operate temperature :
-20°C~60°C
Dimension :
151X65X95mm
Weight :
1.15kg
Warranty :
2 years
Description

9Ah 12 Volt Lithium Battery Deep Cycle , Rechargeable Lithium Battery Pack

Replace the traditional lead acid batteries

long lifespan & powerful & reliable

lighter & smaller and environment friendly

1. Deep cycle lithium battery 12V 9Ah Specification

NO Items Description
Normal specification
1 Nominal Voltage 12.8V
2 Normal Capacity 9Ah
3 Internal Resistance ≤80mΩ
Standard Charge
4 Battery operation temperature range @charging 0~45℃
5 Normal charge voltage 14.6±0.1V
6 Recommended float charge voltage(for Standby use) 13.9±0.1V
7 Allowed MAX charge current 9A@Battery initial Temp 25±5℃
8 Recommended charge current ≤4.5A
Standard discharge
9 Battery operation temperature range @discharging -20~60℃
10 Output Voltage Range 8.0~14.6V
11 Allowed discharge current 9A withstand 30min @Battery initial Temp 25±5℃
12 Pulse discharge current 35A withstand 3s
13 Discharge Cut-off voltage 8.0V
Mechanical Characteristics
14 Dimension Length 151±2mm
Width 65±2mm
Height 95±2mm
15 Weight Approx. 1.15Kg
Storage
16 Storage Temperature & Humidity Range Short: within one month -20~35℃, 45~75%RH
Long term: above one month -10~30℃, 45~75%RH
17 Self-discharge rate Residual capacity ≤3% per month; ≤15% per year
Reversible capacity ≤1.5%per month; ≤8% per year

2. Deep cycle lithium battery 12V 9Ah circuit protection

Test item Content Criterion
Over charge Over-charge protection for each cell 3.80±0.03V
Over-charge release for each cell 3.60±0.05V
Over-charge release method Under the release voltage
Over discharge Over-discharge protection for each cell 2.00±0.05V
Over-discharge release for each cell 2.30±0.05V
Over-discharge release method Charging
Over current Discharge over current protection 35~48A
Protection delay time 10~40ms
Over current release method Release after cutoff the load.

Over

Temperature

 Battery over temperature Protection @65±5℃
Release @50±5℃

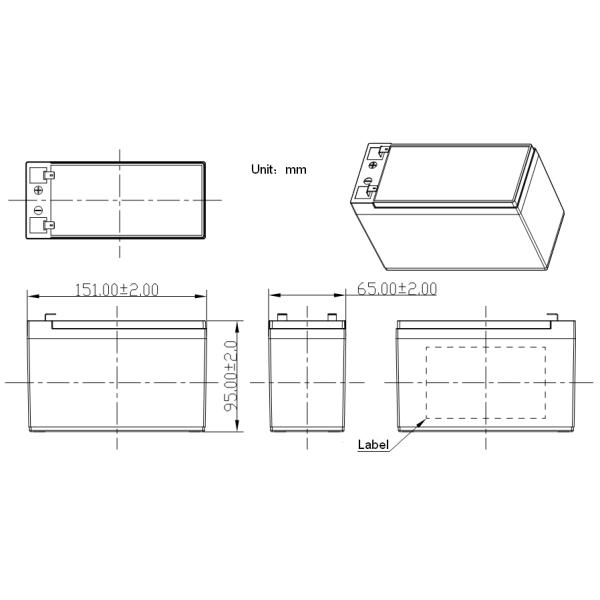

3. Deep cycle lithium battery 12V 9Ah dimension

9Ah 12 Volt Lithium Battery Deep Cycle , Rechargeable Lithium Battery Pack

4. Deep cycle lithium battery 12V 9Ah advantage

  1. Output with high efficiency: Standard discharge current is 0.3C-1C, pulse discharge current is 3.5C for 3 seconds.
  2. Good performance under wide temperature -20-60℃. The battery structure is safe and good.
  3. Good safety performance: When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.
  4. Long cycle life time, the discharge capacity is still over 80% after 2000 cycle times of single cell(100%DOD).
  5. It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.
  6. Low self-discharge. Less than 3% per month.
  7. No pollution during manufacture and usage.

5. Application

Electric propelling applications: engine starting battery; Slow Speed Car; intellectual robots; electric bicycle/motorcycle/scooter; golf trolley/carts/ sightseeing car; power tools.

Energy storage: solar and wind power system; city on/off grid; community and family, RV Caravan, Marine yachts.

Back-up system and UPS: telecom base, CATV-system, computer server center, medical instrument, military equipment.

Other applications: security and electronics; mobile POS, mining light/torch/LED light/emergency light.

6. Excellent service

1. 2 years' warranty on our LiFePO4 Battery

2. Fast Delivery service.

3. Quick response to your any inquiry within 12 hours.

4. Customized design is available, OEM and ODM are welcome.

5. Shipment by Air Express (door to door service), by Air Flight and by Vessel, all Available.

6. Offer the highest quality with the best price.

7. Professional Pre-sales service with Whole-hearted After-sales service.

Your inquiry will be warmly welcomed, looking forward to our long term cooperation.
