24V / 36V / 48V Battery Backup Module , Battery Pack Module LiFePO4
24V / 36V / 48V Battery Backup Module , Battery Pack Module LiFePO4
Specifications
Brand Name :
Topband
Model Number :
TB-lithium battery module
Certification :
ISO9001/ISO14001
Place of Origin :
China
MOQ :
100
Supply Ability :
450Mwh/year
Delivery Time :
2~4weeks for samples; 4~6weeks for mass production
Packaging Details :
standard export carton
Price :
Negotiable
Payment Terms :
L/C, T/T
Material :
LiFePO4
Battery moudle Voltage :
24V
Capacity :
20Ah / 50Ah / 100Ah / 150Ah / 200Ah
Protection :
PCM / BMS for protection
Case :
plastic case / metal case
Battery module :
series-parallel connection
Cycle life :
2000 times at 100% DOD
Warranty :
2 years
Description

24V / 36V / 48V Battery Backup Module , Battery Pack Module LiFePO4

1. Lithium battery module advantage

  • A. Extremely safe and stable chemistry: PCB and/or BMS built inside to balance protect the battery.

  • B. Long life-cycle: Can be circularly used, best can up to 2000 times recycles, 8 times of Lead acid battery.

  • C. Lighter weight, with the best power-to-weight ratio: 1/3 of Lead acid battery weight.

  • D. Good performance at high temperature and high temperature resistance

  • E. Low self-discharge rate, less than 3% monthly.

  • F. No memory effects and highly efficient charge.

  • G. Environment friendly: Clean and Green energy poses no pollution on our environment.

2. Lithium battery module can be assembled with various cells,

Available to make all customzied battery pack. Cell's details as below:

3.2V Lithium Iron Phosphate Cells
Cell Model Volt(V) Capacity(Ah) Inpendance(mΩ) Weight(g) Cycle life Cycle condition
TB-01865135C-12Ah 3.2V 12Ah ≤12 310±10 2000 cycles 100% DOD
TB-02707145C-20Ah 3.2V 20Ah ≤10 525±10 2000 cycles 100% DOD
TB-02707145D-20Ah 3.2V 20Ah ≤4 525±10 2000 cycles 100% DOD
TB-02707180C-25Ah 3.2V 25Ah ≤6 650±10 2000 cycles 100% DOD
TB-02707180D-25Ah 3.2V 25Ah ≤4 650±10 2000 cycles 100% DOD
TB-02707180C-27Ah 3.2V 27Ah ≤4 660±10 2000 cycles 100% DOD

3. Electrical Characteristics

item Criteria Test method

3.1 High

Temperature

Discharge Performance

Capacity retention at 55℃

:≥95%

 A cell is charged in accordance with 3.2, and stored in high temperature chamber at 55℃for 5 h, then discharged to cut-off voltage at a constant current of 1C. After that, fetch out the cell and place it in the ambient temperature of 25℃±5℃ for 4 h, then check its appearance

3.2 Low

Temperature

Discharge

Performance

Capacity retention at -20℃

:≥70%

 A cell is charged in accordance with 3.2, and stored in certain ambient temperature for 24hours,then discharged to cut-off voltage(1.8V) at a constant current of 1C. After that , fetch out the cell and place it in the ambient temperature of 25℃±5℃for 4hours.

3.3 Rate Charge Performance

in Normal Temperature

2C charge capacity≥80%

Under the ambient temperature of 25℃±5℃,

a, 1C constant discharge till the cut-off voltage, standby for 1h;

b, charge at 2C current till 3.65V, standby for 1h;

c, constant discharge with 1C current till 2.0V.

3.4 Rate Discharge Performance in Normal Temperature

3C discharge capacity≥95%

A cell is charged in accordance with 3.2, then discharged to cut-off voltage at certain current in an ambient temperature of 25℃±5℃.

3.5 Cycle Life

(25℃±5℃)

 ≥2000cycles

A cell is 1C CC/CV 3.65V fully charged, after that stored for 30min;Subsequently, the cell is discharged to cut-off voltage at a constant current of 1C, and stored 30min prior to next charge-discharge cycle, until the capacity retention＜80%, and record all the cycles

4. Safety Test

No. Item Test Method Criteria
4.1 Short- circuit Test A cell is tested in accordance with 3.2, after that the cell is short-circuited by connecting the positive and negative terminals with a wire for 10min, the wire has a maximum resistance load of 5mΩ., then observe for 1h. No fire, no explosion
4.2

Overcharge

Test

 A cell is tested in accordance with 3.2, then 1C constant current charged till the voltage reaches 1.5 times of the specified end-off charge voltage, or the charge time reaches 1h, then stop charge, and observe for 1h.

No fire, no explosion
4.3 Over discharge test

A cell is tested in accordance with 3.2, then 1C discharge for 90min, then observe for 1h.

No fire, no explosion, no leakage
4.4

Crush Test

 A cell is tested in accordance with 3.2, and then is placed on the crush machine, the axis is parallel to the crush equiment, and it is crushed between two flat surfaces till the crushing force is gradually approaching 200 kN, or voltage reaches 0V,or reaches 30% distortion, then observe for 1h.

No fire, no explosion
4.5

Impact Test

 A cell is tested in accordance with 3.2, and then placed on the impact flat. A Φ15.8mm bar is to be placed on the center of the cell. A 9.1kg weight is dropped from a height of 610mm onto the cell, the distortion is allowed.

No fire, no explosion
4.6 Stick Test

a) A cell is tested in accordance with 3.2

b) use φ5mm～φ8mm high temperature resistance steel needle, with speed of 25±5mm/s, to go through the cell from vertical direction of pole plate, the penetrate position should be close to the geometric center of plate surface, the steel needle remains in the cell;

No fire, no explosion
4.7

Heating

Test(130℃)

A cell is tested in accordance with 3.2, and then heated in a circulating air oven. The temperature of the oven is raised at a rate of 5℃ per minute to 130℃±3℃ and remain for 30 min.

No fire, no explosion

5. Our Service

  • Customized is allowed;
  • Support imprint your logo on products;
  • OEM
  • Products have proceeded comprehensive testing before shipment

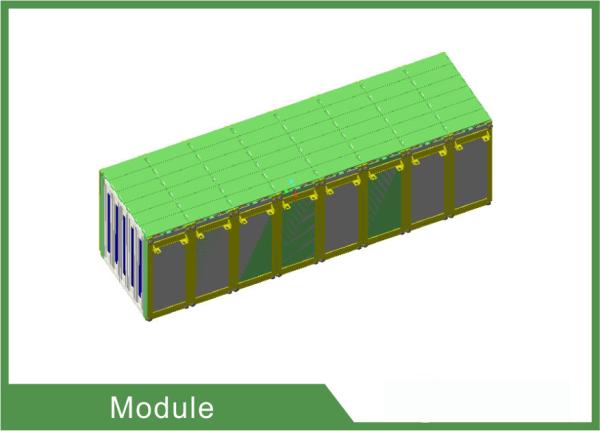

6. Lithium battery module solution

24V / 36V / 48V Battery Backup Module , Battery Pack Module LiFePO4
