Wireless Floor Scrubber Battery 12V 100Ah OEM / ODM Available
Wireless Floor Scrubber Battery 12V 100Ah OEM / ODM Available
Wireless Floor Scrubber Battery 12V 100Ah OEM / ODM Available
Wireless Floor Scrubber Battery 12V 100Ah OEM / ODM Available
Wireless Floor Scrubber Battery 12V 100Ah OEM / ODM Available
Wireless Floor Scrubber Battery 12V 100Ah OEM / ODM Available
Wireless Floor Scrubber Battery 12V 100Ah OEM / ODM Available
Wireless Floor Scrubber Battery 12V 100Ah OEM / ODM Available
Specifications
Brand Name :
Topband
Model Number :
TB-BL12100F-M110D
Certification :
CE, UN38.3, ISO9001, ISO14001,MSDS,UL1642
Place of Origin :
China
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
450Mwh/year
Delivery Time :
2~4weeks for samples; 4~6weeks for mass production
Packaging Details :
standard export carton
Material :
Lifepo4
Nominal Voltage :
12.8V
Normal Capacity :
100Ah
Communication function :
Bluetooth
Warranty :
2 years
Weight :
12.2KG
Dimension :
318x165x215mm
Cycle life :
≥ 2000 cycles
Description

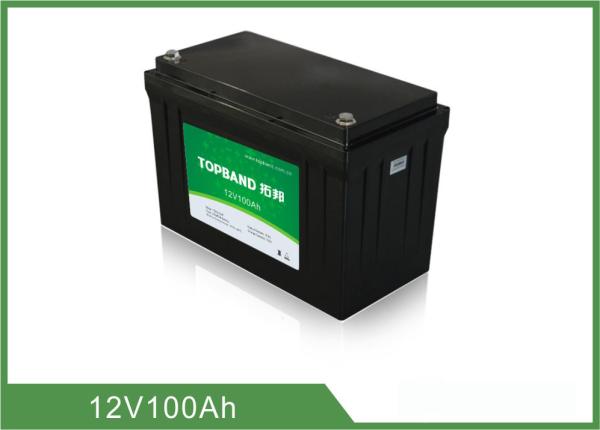

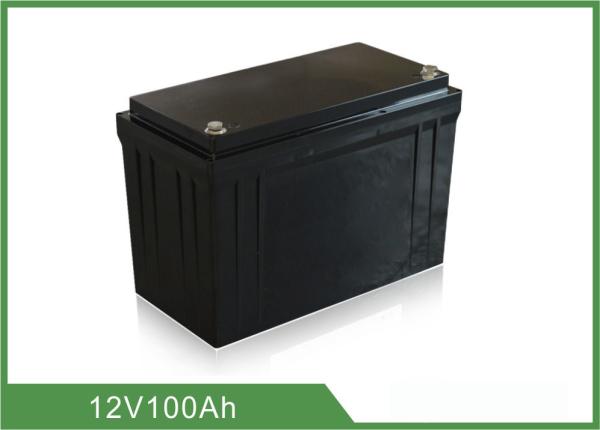

Wireless Smart Floor Scrubber Battery 12V 100Ah , replace for Lead acid battery

  • long life & deep cycle( over 2000cycles @ 100%DOD)
  • with built-in PCM/BMS protection
  • super quick charge/discharge performance
  • safe pressure valve design ( no explosion, no fire)
  • high energy density
  • low self-discharge( <3% per month,<15% per year)
  • 1/3 weight & 1/2 volume of lead acid battery
  • eco-friendly
  • high consistency
  • no memory effect
  • easily replace lead acid battery
  • patent Bluetooth connection feature optional, enable IOS & Android app to monitor instant battery status(SOC, battery voltage, remain AH, charge current, temp., life cycle, error).

1. Smart Lithium battery 12V 100Ah Specification

1 Nominal Voltage 12.8V
2 Normal Capacity 100Ah
3 Internal Resistance ≤20mΩ
4 Battery operation temperature range @charging 0~45℃
5 Normal charge voltage 14.6±0.1V
6

Recommended float charge voltage

(for Standby use)

 13.9±0.1V
7 Allowed MAX charge current 80A@Battery initial Temp 25±5℃
8 Recommended charge current ≤60A
9 Battery operation temperature range @discharging -20~60℃
10 Output Voltage Range 8.0~14.6V
11 Allowed discharge current 100A withstand 30min @Battery initial Temp 25±5℃
12 Pulse discharge current 350A withstand 3s
13 Discharge Cut-off voltage 8.0V
14 Dimension

Length 318mm

Width 165mm

Height 215mm
15 Weight Approx. 12.2Kg

























2. Smart Lithium battery 12V 100Ah Electrical Characteristics & Test Condition
@Testing Conditions: Ambient Temperature: 25±5℃; Huminity:45%~75%.

NO Items Criterion Condition
1 Min Capacity ≥97Ah Rest for 1 hour after fully charged, then discharge with 0.33C current until the battery reaches the cutoff voltage. you can stop and define the Discharging current*time value (Ah) as battery capacity.
2



Cycle life (DOD%100)

 ≥2000cycle

Charge / CC(0.33C)/CV(14.6V);
End current : 0.05C;
Rest time : 1h;
Discharge / CC(0.5C);
End voltage : 8.0V;
Repeat above process until discharge capacity is no more than 80% of normal value. Accumulated times is defined as cycle life.
3


Discharge Temperature
Characteristics

 -20℃ ≥70% At 25±5℃ discharge the battery with the current of 0.33C to the cut-off voltage. Store the battery at various temperatures for 2h and discharge the battery with 0.33C to the cut-off voltage. Record the ratio between discharging & charging capacity.
0℃ ≥80%
25℃ 100%
55℃ ≥95%
4 Charge Retention ability remain capacity≥90% Charge the battery to full capacity and store it for 28days, and then discharge it with 0.33C to the cut-off voltage.


3. Smart Lithium battery 12V 100Ah advantage

  1. Green product: LiFePO4 material is no harm to enviroment and human being .

  2. Cycle life: More than 2000 cycle times

  3. Very safe: It have the best safety and steady performance,no fire ,no exploding under the condition of over-charge.

  4. Light weight and smaller dimension: The dimension compares with other battery.about 1/2-2/3 weight of lead acid

  5. Great capacity and more powerful,rechargeable battery: We can install many single cells in series and in parallet and it can fully discharge

  6. No memory effect: It can be recharged anytime,no reduction of the capacity

4. Application:

· Energy Storage Systems (ESS)

· Hybrid Grid back-up

· Remote area power systems

· Communications systems

· Electric vehicles

· Marine environments

· Military & Aviation

· Industrial Machinery

· Uninterruptible Power Supplies

· CCTV & Data Transfer


5. Smart Lithium battery 12V 100Ah dimension
