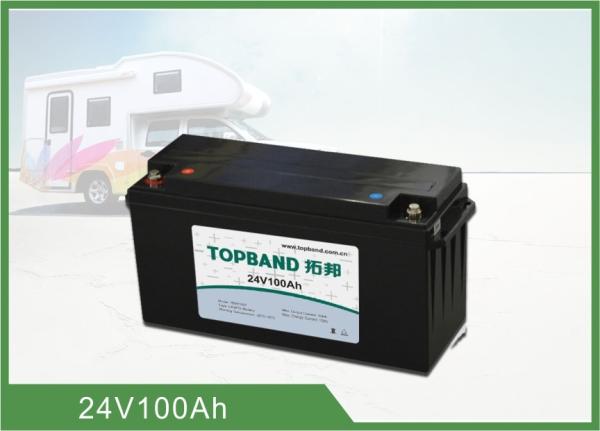

Deep Cycle Lifepo4 Rv Camper Battery Pack Rechargeable Long Cycle Life
Deep Cycle Lifepo4 Rv Camper Battery Pack Rechargeable Long Cycle Life
Specifications
Brand Name :
Topband
Model Number :
TB24100F-S110A_00
Certification :
MSDS
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
450Mwh/year
Delivery Time :
2~4weeks for samples; 4~6weeks for mass production
Packaging Details :
standard export carton
Material :
Nano LiFePO4
Dimension :
485*170*245mm
Weight :
25Kg
Cycle life :
2000cycles @100%DOD
Warranty :
2 years
Capacity :
100Ah
Voltage :
24V
Application :
RV
Description

Deep Cycle Lifepo4 Rv Camper Battery Pack Rechargeable Long Cycle Life

1. General Information

This specification defines the performance of rechargeable LiFePO4 battery pack TB24100F- S110A manufactured by Shenzhen Topband Battery Co., Ltd, describes the type, performance, technical characteristics, warning and caution of the battery pack.

2. Specification

NO Items Description
Normal Specification
1 Nominal Voltage 25.6V
2 Normal Capacity 100Ah
3 Internal Resistance ≤30mΩ
Standard Charge
4 Battery operation temperature range @charging 0~45℃
5 Normal charge voltage 29.2±0.2V
6 Recommended float charge voltage(for Standby use) 27.6±0.2V
7 Allowed MAX charge current 80A@Battery initial Temp 25±5℃
8 Recommended charge current ≤50A
Standard Discharge
9 Battery operation temperature range @discharging -20~60℃
10 Output voltage range 20.0~29.2V
11 Allowed discharge current 175A withstand 30min @Battery initial Temp 25±5℃
12 Pulse discharge current 300A withstand 3s
13 Discharge cut-off voltage 18.4V
Mechanical Characteristics
14 Dimension Length 485±3mm
Width 170±3mm
Height 245±3mm
15 Weight Approx. 24.2Kg
Storage
16 Storage Temperature & Humidity Range Short: within one month -20~35℃, 45~75%RH
Long term: above one month -10~30℃, 45~75%RH
17 Self-discharge rate Residual capacity ≤3% per month; ≤15% per year
Reversible capacity ≤1.5%per month; ≤8% per year

3. Electrical Characteristics & Test Condition.

@Ambient Temperature 25±5℃ & Humidity 45%~75%.

NO Items Criterion Condition
1 Internal Impedance ≤30mΩ Test the internal resistance of 50% SOC battery pack with 1 kHz AC internal resistance test instrument.
2 Nominal Capacity ≥98Ah Rest for 1 hour after fully charged, then discharge with 0.33C current until the battery reaches the discharge cutoff voltage. Repeat above process for three times, if the discharge time is not less than 180 minutes, you can stop and define the Discharging current*time value (Ah) as battery capacity.
3 Short circuit protection / Not allowed.
4 MAX charge Current 80A Charging with this current for more than 0.5h and the added temperature of battery pack less than 20℃.
5 MAX discharge Current 100A Discharging with this current for more than 0.5h and the added temperature of battery pack less than 35℃.
6

Cycle life (DOD%100)

 ≥2000cycle Discharge with the current of 0.5C until it can’t discharge, and then rest it for 1h. Charge the battery following CC(0.33C)/CV(14.6V) mode to full capacity, and then rest it for 1h. Repeat above process until full charged capacity is no more than 80% of normal value. Accumulated times is defined as cycle life.
7

Discharge Temperature

Characteristics

 -20℃ 70% At 25±5℃ discharge the battery with the current of 0.33C to the cut-off voltage and record charge capacity. Store the battery at various temperatures for 2h and discharge the battery with 0.33C to the cut-off voltage.
0℃ 80%
25℃ 100%
55℃ 95%
8 Charge Retention ability remain capacity≥90% Charge the battery to full capacity and store it for 28days, and then discharge it with 0.33C to the cut-off voltage.

4. Circuit Protection

The batteries are supplied with a LiFePO4 Battery Management System (BMS)that can monitor and optimized each single prismatic cell during charge & discharge, to protect the battery pack overcharge, over discharge, short circuit. Overall, the BMS helps to ensure safe and accurate running.

Test item Content Criterion
Over charge Over-charge protection for each cell 3.90±0.03V
Over-charge release for each cell 3.60±0.05V
Over-charge release method Under the release voltage
Over discharge Over-discharge protection for each cell 2.30±0.05V
Over-discharge release for each cell 2.80±0.05V
Over-discharge release method Above the release value
Over current Discharge over current protection 400±100A
Protection delay time 50~200ms
Over current release method Release after cutoff the load.

Battery

temperature

 Battery Over temperature Protection @65±5℃, Release @55±5℃
Charge lower temperature Protection @-10±5℃, Release @0±5℃

5. Dimensional Drawing

Deep Cycle Lifepo4 Rv Camper Battery Pack Rechargeable Long Cycle Life
