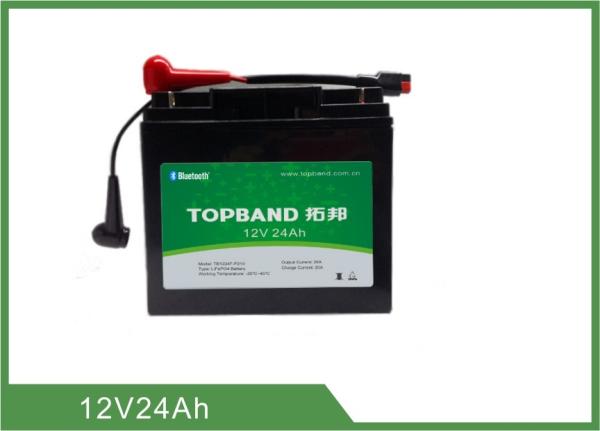

Golf Trolley Smart Bluetooth Lithium Battery , Long Cycle 12 Volt Charging Lifepo4 Batteries
Golf Trolley Smart Bluetooth Lithium Battery , Long Cycle 12 Volt Charging Lifepo4 Batteries
Specifications
Brand Name :
Topband
Model Number :
TB-BL1224F-S113A
Certification :
ISO 9001 / MSDS
Place of Origin :
China
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
450Mwh/year
Delivery Time :
2~4weeks for samples; 4~6weeks for mass production
Packaging Details :
standard export carton
Material :
LiFePO4
Voltage :
12.8V
Communication :
Bluetooth
Warranty :
2 years
Cycles :
2000 cycles
Case :
ABS
Application :
Golf Trolley
Description

Golf Trolley Smart Lithium Battery , Long Cycle 12 Volt Charging Lifepo4 Batteries

1. Smart Lithium Battery 12V 24Ah Specification

1 Nominal Voltage 12.8V
2 Normal Capacity 24Ah
3 Internal Resistance ≤50mΩ
4 Series application Not allowed
5 Communication function Bluetooth
6 Operation temperature range @charging 0~45℃
7 Standard charge voltage 14.6±0.1V
8 Float charge voltage(for Standby use) 13.9±0.1V
9 Allowed MAX charge current 20A
10 Recommended charge current ≤10A
12 Output Voltage Range 8.0~14.6V
13 Allowed MAX discharge current 24A
14 Pulse discharge current 55A withstand 3s
15 Discharge Cut-off voltage 8.0V
16 Dimension Length 180±2mm
Width 75±2mm
Height 170±2mm
17 Weight Approx. 3.0Kg
18 Storage Temperature & Humidity Range Short: within 1 month -20~35℃, 45~75%RH
Long term: above 1 month 10~30℃, 45~75%RH
19 Self-discharge rate Residual capacity ≤3% per month; ≤15% per year
Reversible capacity ≤1.5%per month; ≤8% per year



2. Smart Lithium Battery 12V 20Ah Dimension

Golf Trolley Smart Bluetooth Lithium Battery , Long Cycle 12 Volt Charging Lifepo4 Batteries

3. Features

  • Quick charge capability.
  • Can be used in any position
  • More than 2000 cycles (at 100% discharge)
  • Temperature range: -20 to +60ºC
  • 1/3 weight of lead-acid batteries
  • BMS protective circuit
  • Can be replaced 1:1 with lead-acid batteries.

4. Bluetooth Function

Golf Trolley Smart Bluetooth Lithium Battery , Long Cycle 12 Volt Charging Lifepo4 Batteries

5. Typical Application

  • Energy Storage Systems (ESS)
  • Hybrid Grid back-up
  • Remote area power systems
  • Communications systems
  • Electric vehicles
  • Marine environments
  • Military & Aviation
  • Industrial Machinery
  • Uninterruptible Power Supplies
  • CCTV & Data Transfer
