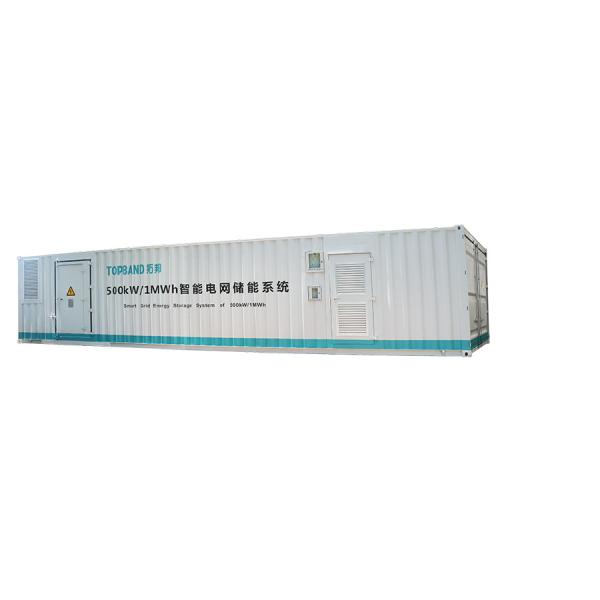

Super Power 40HQ Container Lithium Battery Energy Storage System ESS 500kW / 1MWh
Super Power 40HQ Container Lithium Battery Energy Storage System ESS 500kW / 1MWh
Super Power 40HQ Container Lithium Battery Energy Storage System ESS 500kW / 1MWh
Super Power 40HQ Container Lithium Battery Energy Storage System ESS 500kW / 1MWh
Super Power 40HQ Container Lithium Battery Energy Storage System ESS 500kW / 1MWh
Super Power 40HQ Container Lithium Battery Energy Storage System ESS 500kW / 1MWh
Specifications
Brand Name :
Topband
Model Number :
500kW / 1MWh
Certification :
MSDS
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
450Mwh/year
Delivery Time :
6~8weeks
Packaging Details :
standard export carton
Nominal Voltage :
691.2V
Typical Capacity :
250Ah*6P
Max continuous Charge :
0.5C
Max continuous discharge :
1C
Cycles Life@ 100% DOD :
≥2500
Weight :
27,000kg
Dimension :
12192*2438*2710mm
Material :
Nano LiFePO4
Service life :
10years
Protection level :
IP54/NEMA 3R
Description

40HQ Container Lithium Energy Storage Systems(ESS) 500kW / 1MWh(400V / 50Hz)

System Electrical Technology:

Super Power 40HQ Container Lithium Battery Energy Storage System ESS 500kW / 1MWh

1. Energy Storage Systems Specification

NO Project description Specifications Remark
1.1 Energy storage system capacity 1000KWh
1.2 Rated discharge power 500Kw
1.3 Rated charge power 500kW Not allowed.
1.4 Rated output voltage 315Vac No transformer, suit for Asia, Europe, America
380Vac With/ no transformer, suit for Asia, Europe.
480Vac With/ no transformer, suit for America.
1.5 Output voltage range Rated voltage -20% / + 15%
1.6 Rated output frequency 50Hz Suit for Asia, Europe
60Hz Suit for Asia
1.7 Frequency Range 47Hz～52Hz Suit for Asia, Europe
57Hz～62Hz Suit for Asia, America.
1.8 System maximum efficiency 95% Not with transformer
1.9 Total current aberration rate ＜3% rated power, Voltage aberration rate＜1% each hour
1.10 DC component ＜5% rated power
1.11 Power factor -0.9～0.9 adjustable
1.12 Charge and discharge conversion time 100ms
1.13 Communication system response time 2S
1.14 Output connection mode Three-phase four-wire/ three-phase five-wire Not with transformer 3P + PE / with transformer 3P + N + PE
1.15 Working temperature -15℃～45℃
1.16 Storage temperature -15℃～55℃
1.17 Working relative humidity 0～95% No dewing
1.18 Storage relative humidity 0～95% No dewing
1.19 Altitude ≤2000m
1.20 System noise ＜75dB
1.21 Protection level IP54/NEMA 3R
1.22 Pollution level 2 levels
1.23 External Communication Port Ethernet MODBUS(TCP/IP)
1.24 Container Size 12192*2438*2710mm W*D*H
1.25 Container Weight 25 Ton Not with transformer
27 Ton With transformer
1.26 Container Port Power port Path 1 / Path 2 315V/380V/480V
Power distribution port Path 1 220V/110V/27
Ground port Path 2 PE
Communication port Path　 1 MODBUS(TCP/IP)
1.27 Charge/discharge cycle life > 2500 1C charge/ discharge
1.28 Service life 10 years Storage power drops to the initial 80%
1.29 Certification NO American market, Europe market, Australia market, China
1.30 Transport requirements No packaging Satisfy the sea shipping

2. Battery cells parameters

Item Specification

Remark
2.1 Nominal Capacity 25Ah 0.5C discharge capacity
2.2 Typical Capacity 26Ah
2.3 Internal Impedance ≤2.0mΩ By AC 1KHz
2.4 Nominal Voltage 3.20V
2.5 Cell Weight 650±20g Containing package
2.6 End-of-charge Voltage 3.65V At CC mode
2.7 End-of-charge Current 0.05C At CV mode
2.8 End-of-discharge Voltage 2.00V
2.9 Charge Method 0.5C CC/CV 180 min
2.10 Quick Charge Method 1C CC/CV 90 min
2.11 Max Continuous Discharge current 50A Continuous Discharge Time: 30 minutes
2.12 Max pulse Discharge Current 75A Continuous Discharge Time: 10 seconds
2.13 Cycle Life ≥2000cycles 0.5C Continual Discharge: ≥80%(100% DOD)

2.14 Operating

Temperature

Charging Temperature

 0～45℃

Ambient temperature:25℃±5℃

Cell exterior temperature must be <65℃
Discharging Temperature -20～55℃ Ambient temperature: 25℃±5℃ Cell exterior temperature not exceed 80℃
Storage Temperature -20～35℃ Recommended temperature range for long term storage is –10~ +30°℃
2.15 Guarantee period 2 year
2.16 Appearance Without break, scratch, distortion, contamination, leakage and so on

3. Battery modules specification

Item Specification Remark
3.1 Battery Cells quantity 120 pcs
3.2 Battery units quantity 10 pcs
3.3 Battery units serial-parallel modes 10P12S
3.4 BMU quantity 1 pcs
3.5 Rated Voltage 38.4V
3.6 Voltage range 30～43.8V
3.7 Rated Capacity 250Ah
3.8 Battery module Energy 9.6kWh
3.9 Battery modules Size W * D* H 620*550*220mm
4.0 Weight Approx. 110KG

4. Battery Cabinet specification

Item Spec Remark
4.1 Battery modules quantity 18 pcs
4.2 Battery modules serial-parallel modes 18S1P
4.3 BMU Quantity 18 pcs
4.4 CBMU Quantity 1 pcs
4.5 Rated Voltage 691.2V
4.6 Voltage Range 540-788.4V
4.7 Rated Capacity 250Ah
4.8 Battery Cabinet Energy 172.8 kWh
4.9 Size W*D*H 1400*650*2200mm
5.0 Weight Approx. 2700KG

5. Dimensional Drawing

Container Layout:　

Super Power 40HQ Container Lithium Battery Energy Storage System ESS 500kW / 1MWh

As following:

Super Power 40HQ Container Lithium Battery Energy Storage System ESS 500kW / 1MWh

1. Outdoor Air-conditioner;

2. Indoor Air-conditioner;

3. Monitor cabinet;

4. Step-wise duct;

5. Fire prevention cabinet;

6. Bidirectional converter;

7. Primary-secondary door (door embedded door);

8. Battery cabinet;

9. Chief Battery Management Control Unit (CBMU) cabinet;

10. Distribution cabinet;

11. Bar-cutting ventilation escape door;

12. Double door;

Megawatt Move box type energy storage system structure I-I sectional view

Super Power 40HQ Container Lithium Battery Energy Storage System ESS 500kW / 1MWh

System Communication Topology:

Super Power 40HQ Container Lithium Battery Energy Storage System ESS 500kW / 1MWh
