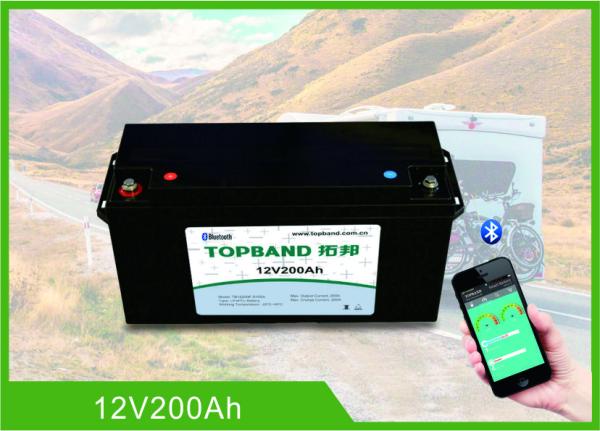

Deep Cycle Prismatic Cell Lifepo4 Rechargeable Battery 12v 200ah With Bluetooth APP
Deep Cycle Prismatic Cell Lifepo4 Rechargeable Battery 12v 200ah With Bluetooth APP
Specifications
Brand Name :
Topband Lifepo4 battery
Model Number :
TB-BL12200F
Certification :
CE, ISO9001, ISO14001
Place of Origin :
China
MOQ :
50
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
450Mwh/year
Delivery Time :
2~4weeks for samples; 4~6weeks for mass production
Packaging Details :
standard export carton for Lifepo4 12v 200ah Battery Pack
Items :
Lifepo4 12v 200ah Battery Pack with Bluetooth APP
Type :
Lifeo4 battery
Normal Capacity :
200Ah
Communication function :
via Bluetooth APP
Internal Resistance :
≤20mΩ
Weight :
24.2KG
Application :
RV Caravans/Camping cars, Marine and boats
Output Voltage Range :
8.0~14.6V
Warranty :
2years
Size(LxWxH) :
485*170*245mm
housing :
Black plastic hoursing(standard color)
Keywords :
Lifepo4 battery, lithium ion battery, 12V lifepo4 battery
Protecton :
built-in BMS with Bluetooth Monitoring
Bluetooth APP :
Topband standard
Standard charge current :
60A
Standard discharge current :
80A
Certificate :
CE
Description

Rechargeable Deep Cycle Prismatic Cell Lifepo4 12v 200ah Battery Pack with Bluetooth APP

1. The Features of Lifepo4 12v 200ah Battery Pack with Bluetooth Monitoring function:

  • Output with high efficiency
  • Good performance under wide temperature -20-60℃.
  • Good safety performance
  • Long cycle life time, over 2000 cycle times(100%DOD).
  • Fast charging.
  • Low self-discharge.
  • Evironment friendly.


2. The Specification of Lifepo4 12v 200ah Battery Pack

* Series connection is prohibited for standard type, if needed please let us know in advance.

1 Nominal Voltage 12.8V
2

Normal Capacity

Minimum capacity

200Ah

190Ah
3 Internal Resistance ≤20mΩ
4 Battery operation charge temperature range 0~45℃
5 Normal charge voltage 14.6±0.1V
6 Recommended float charge voltage(for Standby use) 13.8±0.1V
7 standard charge current 60A@Battery initial Temp 25±5℃
8 Maximum charge current 80A
9 Battery operation temperature range @discharging -20~60℃
10 Output Voltage Range 8.0~14.6V
11 standard discharge current 80A withstand 30min @Battery initial Temp 25±5℃
12 Maximum discharge current 100A withstand 30min
13 Discharge Cut-off voltage 8.0V
14 Dimension Length 485±2mm
Width 170±2mm
Height 245±2mm
15 Weight Approx. 24.2Kg

























Brief description of Lifepo4 12v 200ah Battery Pack with Bluetooth APP
Deep Cycle Prismatic Cell Lifepo4 Rechargeable Battery 12v 200ah With Bluetooth APPDeep Cycle Prismatic Cell Lifepo4 Rechargeable Battery 12v 200ah With Bluetooth APP
Deep Cycle Prismatic Cell Lifepo4 Rechargeable Battery 12v 200ah With Bluetooth APP

2. The dimension of Lifepo4 12v 200ah Battery PackDeep Cycle Prismatic Cell Lifepo4 Rechargeable Battery 12v 200ah With Bluetooth APP

IF ABOVE SPECS AND DIMENSTIONS IS NOT OKAY FOR YOU, WE ALSO HAVE OTHER ITEMS, PLEASE FREELY SEND US YOUR INQUIRY, SUCH AS 12V 100Ah, 12V 150AH, 12V 22AH Lifepo4 battery pack for options.

Deep Cycle Prismatic Cell Lifepo4 Rechargeable Battery 12v 200ah With Bluetooth APPDeep Cycle Prismatic Cell Lifepo4 Rechargeable Battery 12v 200ah With Bluetooth APPDeep Cycle Prismatic Cell Lifepo4 Rechargeable Battery 12v 200ah With Bluetooth APP


3. Protective circuit specification
The batteries are supplied with a LiFePO4 Battery Management System (BMS)that can monitor and optimized each single prismatic cell during charge & discharge, to protect the battery pack overcharge, over discharge, short circuit. Overall, the BMS helps to ensure safe and accurate running.

NO. Items Content Specification
5.1 Over charge Over-charge protection for each cell 3.90±0.05V
Over-charge release for each cell 3.60±0.05V
Over-charge release method Under the release voltage
5.2 Over discharge Over-discharge protection for each cell 2.0±0.05V
Over-discharge release for each cell 2.5±0.05V
Over-discharge release method Charge to recovery
5.3 Over current Discharge over current protection 300A～500A
Protection delay time 50s～200ms
Over current release method Delay about 8S after recovery
5.4 Short circuit Do not short-circuit the electrodes Designed For 500A～750A /500us
5.5 Battery temperature Charge over temperature Protection @65±5℃
Release @50±5℃
Discharge over temperature Protection @65±5℃
Release @50±5℃
Charge low temperature protection Protection @-10±5℃
Release @0±5℃
MOSFET over temperature protection Protection @103±10℃
Release @75±10℃


4. Storage & Transportation

  • Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be created to protect the battery.
  • Battery should be stayed in the warehouse -20℃～35℃ where it’s dry, clean, shade, and well-ventilated.
  • The battery should be stored in 50% SOC during transportation.
  • The battery need to be charged every 6 months if out of use.
  • Keep the battery against dropping, turning over and serious stacking during loading



5. The Application of Lifepo4 12v 200ah Battery Pack: RV Caravans, Camping cars, Automotives, Sailing, Marine and boats,etc.
Deep Cycle Prismatic Cell Lifepo4 Rechargeable Battery 12v 200ah With Bluetooth APP
