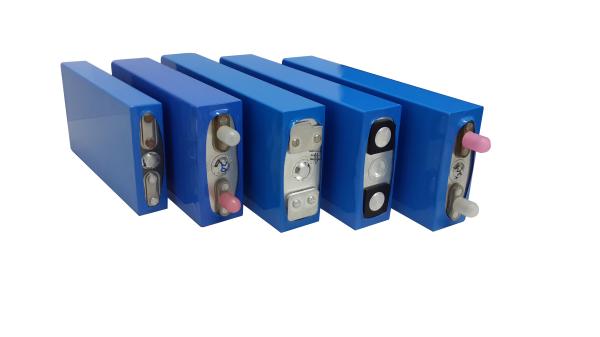

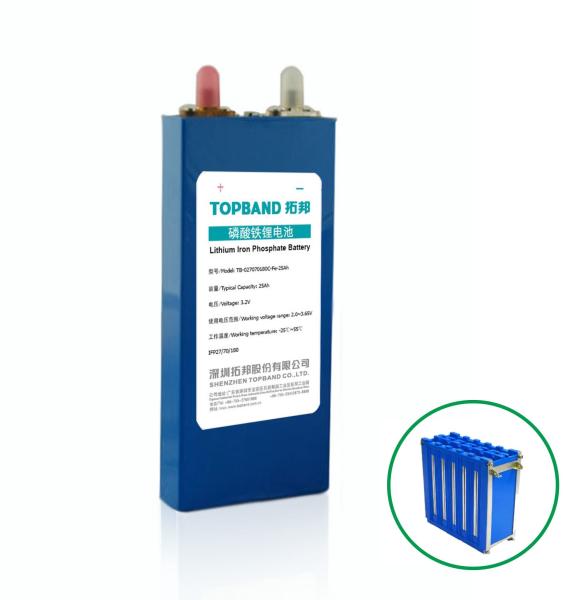

3.2V 25Ah Lifepo4 Rechargeable Battery , Lithium Iron Phosphate Battery Pack ≤4mΩ
3.2V 25Ah Lifepo4 Rechargeable Battery , Lithium Iron Phosphate Battery Pack ≤4mΩ
3.2V 25Ah Lifepo4 Rechargeable Battery , Lithium Iron Phosphate Battery Pack ≤4mΩ
3.2V 25Ah Lifepo4 Rechargeable Battery , Lithium Iron Phosphate Battery Pack ≤4mΩ
3.2V 25Ah Lifepo4 Rechargeable Battery , Lithium Iron Phosphate Battery Pack ≤4mΩ
3.2V 25Ah Lifepo4 Rechargeable Battery , Lithium Iron Phosphate Battery Pack ≤4mΩ
Specifications
Brand Name :
Topband
Model Number :
TB-027070180C-Fe-25Ah
Certification :
CE, TUV, UL, UN38.3, etc.
Place of Origin :
China
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1GWH/year
Delivery Time :
10-30 days
Packaging Details :
Standard Export Package
Nominal Voltage :
3.2
Nominal Capacity :
25Ah
Charge voltage :
3.65V
Charge current :
1C(25A)
Discharge current :
3C(75A)
Peak discharge current(3s) :
5C(125A)
Weight :
610±20g
Dimension :
27*70*180mm
Impedance :
≤4mΩ
cycle life :
≥2500(1C/1C)
Description

3.2v 25Ah Lifepo4 Rechargeable Battery , Lithium Iron Phosphate Battery Pack ≤4mΩ

Specifications:


NO
Items
Characteristics
2.1 Normal capacity 25Ah
Minimum capacity 24.5Ah
2.2 Nominal energy 80Wh
2.3 Nominal voltage 3.2V
2.4 Internal resistance ≤4mΩ @1kHz AC
2.5 Normal charge voltage 3.6±0.5V
2.6 Float charge voltage(for Standby use) 3.4±0.8V
2.7 Allowed MAX charge current 25A
2.8 Recommended charge current 5A
2.9 Allowed MAX discharge current 75A
2.10 End of discharge voltage 3.1V~3.4V
2.11 Pulse discharge current Withstand the 125A/10s
2.12 Dimension Length 180 ±1 mm
Width 70±1mm
Height 27±1 mm
2.13 Weight (No accessories) About: 610±20g
2.14
Operation temperature		 Charge 0～43℃
Discharge -20～60℃
2.15 Self-discharge rate ≤3%/Month; ≤15%/ year
2.16
Storage environment		 ≤1month -20～+60℃,5～75%RH
≥3month -10～+43℃,5～75%RH

Recommend environment		 15～33℃,5～75%RH

LFP cell 3.2V series:

Model TB-027070145E-Fe-20Ah TB-027070180D-Fe-25Ah TB-A32173128P-Fe-50Ah TB-48174170-Fe-100Ah
Nominal voltage 3.2V 3.2V 3.2V 3.2V
Nominal capacity 20Ah

25Ah

 50Ah 100Ah
Cycle life ≥2500 ≥2500 ≥2000 ≥2000
Weight 520±20g 660±20g 1350±50g 2600±50g
Dimension 27*70*145mm 27*70*180mm 32*173*128mm 48*174*170mm

Advantages:

1. F series battery use LiFePO4 cells, with super safe chemistry property
2. Battery with built-in self-development high-performance BMS
3. With built-in Bluetooth IC, patent design
4. High in-rush current capability, protect battery and inverters compatible
5. Wide temperature range design, workable at -30~50 , 70% discharge at -20
6. Support max. 4pcs in series andparallel connection
7. Mature solution, stable performance
8. CE, UL, UN38.3 certificated

Main Applications:

1. Energy Storage:Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehecle.
2. Back-up System and UPS:Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment.
3. Other Applications:Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.

3.2V 25Ah Lifepo4 Rechargeable Battery , Lithium Iron Phosphate Battery Pack ≤4mΩ

3.2V 25Ah Lifepo4 Rechargeable Battery , Lithium Iron Phosphate Battery Pack ≤4mΩ

Packaging & Shipping

1. Pack in safety industrial package, with IATA shipping standard.
2. For sample or small order: ship by DHL, UPS, FedEx and TNT etc…
3. For large order, ship by AIR or OCEAN.
