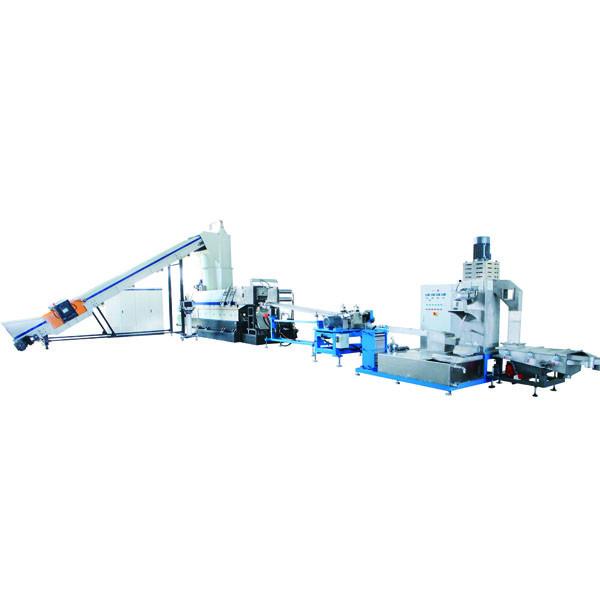

PET fiber and PET flakes recycling machine with cutter compactor single stage pelletizing machine

According to the raw material condition, we could redesign the pelletizing line.

1.Cutter compactor type

• In the cutter compactor there are some rotary blades fixed on the middle rotary plate and fixed blades mounted on the walls of the cutter compactor.
• For the PET raw materials we tested the two plates will be good and high efficient.
• The cutter compactor has a motor to control the gate valve of the cutter compactor.
• The cutter compactor is inverter frequency for PET fiber.

2.Degassing system

• Non degassing system suitable for the clean films
• Natual degassing system suitable for the normal films
• Vacuum degassing system suitable for the materials washed and need to remove some the ink and gas.

3.Screen changer system

Several options depending on the raw material condition and customer prefer

• Plate type: easy to option, normal filtering space
• Piston type round filter: Suitable for clean materials
• Piston type large filtering space: Suitable for much dirty materials, such as the washed PP PE films. Less change filter frequency, save labour work, increase the capacity. To change the filter will be a little longer than the plate type and piston type. While you are familiar with it, it will be quick.
• Laser filter or non mesh filter: It is the automatically no need to change the filters or screens. It is with a filter plate or two plates inside with two rotary blades to rotate to scrap the dirty. The screen mesh could be 40mesh, 60 mesh, 80 mesh.

4.Pelletizing system

According to the raw material characteristics, we have the below several options:

• Wet (undewater)strand pelletizing system is suitable for the PET, such as the PET bottle flakes, PET fiber, BOPET films etc.

5. After the different pelletizing system we will offer the dewatering system and vibration and transmission and silo for the packing.

6. The silo could be the cyclone type or the mixing type

Why Choose Us

A.PR has professional manufacturer since 2006. we have our own technical design department. Each extruder get designed according to material feature.
B.Power saving with high output

C.Quality guaranty time is 12 months since the Bill of Lading date.
D.Delivery time: 40 work days to 60 days
E.Ship requested package
F.Machine installation is aboard available. It takes about 5 to 7 days with completing one time of installation. The assigned engineer(s) manage the machine user training, machine operation and commission
